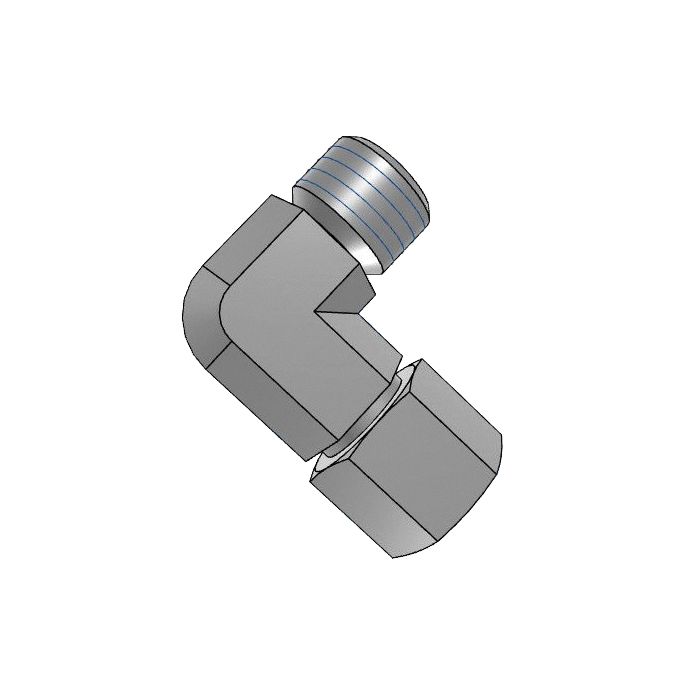

main product photo

90* Din X Fdin Swivel Complete

Ask A Question

Description & Features

This 90° elbow Adaptall fitting features a DIN tube connection on both ends. Constructed from steel, it offers reliable performance in demanding hydraulic applications.

The 90* Din X Fdin Swivel Complete has a Side 1 size of L15 (M22 x 1.5) and a Side 2 size of L15 (M22 x 1.5). The Adaptall Ch1 Width is 19mm, the Adaptall Ch2 Width is 27mm, the Adaptall L1 Length is 28mm, the Adaptall L2 Length is 21mm, and the Adaptall L3 Length is 32.5mm.

SKU: 5360L-15C

Supplier Part Number (MPN): 5360L-15C

Specifications

Brand
adapt-all
Connection Size 1
L15
Connection Size 2
15 mm
Connection Type
Female Metric Swivel, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Female Metric DIN 24 deg Tube Swivel
Dimension Standards
DIN 2353, ISO 8434-1
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
19 x 27 mm
Material
Steel
Material Construction
Carbon Steel
Series
5360 Series
Thread Size
M22x1.5

Product Questions & Answers (1)

Question by: Darryl C on Oct 5, 2025, 9:59 PM
trying to swap out an old elbow fitting, are both ends on this one M22 x 1.5 DIN tube?
Answer by: Customer Support on Oct 7, 2025, 6:21 AM
Both connections are DIN tube with an L15 size and an M22 x 1.5 thread callout on each side. Side 1 is male and Side 2 is female, and it is a 90 degree elbow.
