90* Din X F Din Swivel

Description & Features

Constructed from steel, this 90-degree elbow adapter connects two L22 DIN tube ends in a male-to-female swivel configuration. Both sides carry an M30 x 2.0 thread callout, with the male end featuring a 27mm wrench flat and the female end requiring a 36mm wrench flat for installation. The 90° Din X F Din Swivel is manufactured by Adaptall and is well-suited for hydraulic line routing where a right-angle transition between DIN tube connections is required.

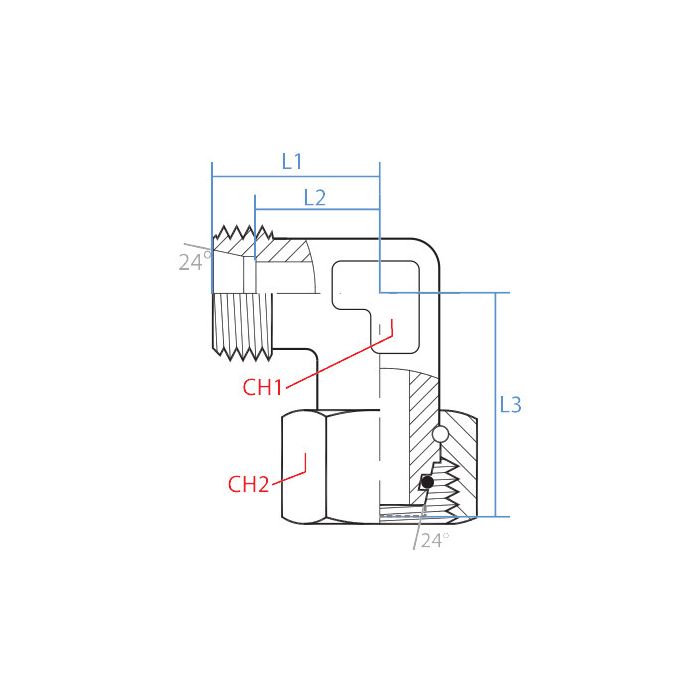

Key dimensional references include an L1 length of 35mm, L2 of 27.5mm, and an overall L3 length of 38.5mm, making it straightforward to verify fitment within tight routing layouts. The swivel feature on the female side allows rotational adjustment during assembly, reducing stress on connected lines.

SKU: 5360L-22

Supplier Part Number (MPN): 5360L-22

Specifications

CH1 Width 27mm	CH2 Width 36mm	L1 Length 35mm	L2 Length 27.5mm	L3 Length 38.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout M30 X 2.0	Side 2 Gender F	Side 2 Size L22	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5360L-22	Product Weight 0.66 lbs

Product Questions & Answers (1)

Question by: Vince G on Aug 9, 2025, 11:01 AM

Wondering if this will work to make a 90 degree turn in my hydraulic lines? I'm using DIN fittings.

Answer by: Customer Support on Aug 11, 2025, 6:22 AM

This 90-degree elbow adapter is indeed designed to create a right-angle transition specifically between DIN tube connections. The male end features a 27mm wrench flat, and the female end needs a 36mm wrench flat for installation.
