90* Din X Fdin Swivel Complete

Description & Features

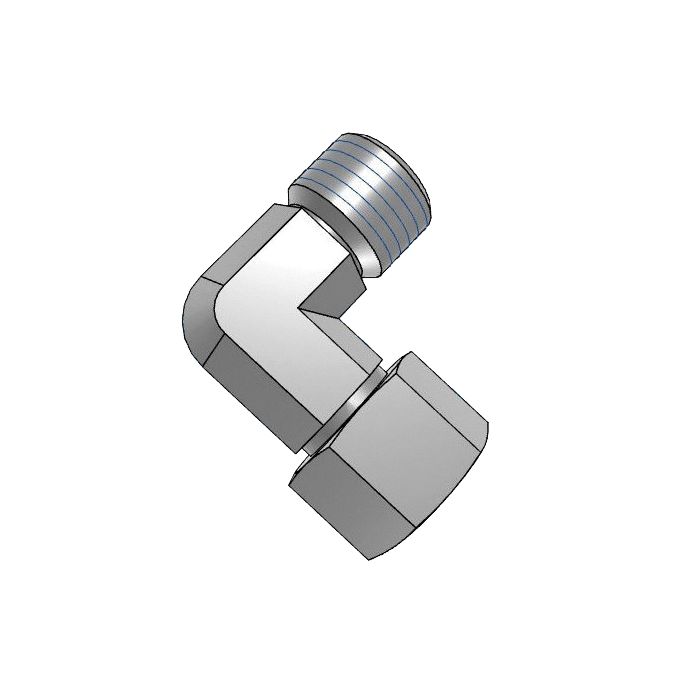

Designed for robust hydraulic applications, the Adaptall 90° Din X Fdin Swivel Complete offers reliable performance and compatibility. Engineered with a 90° elbow shape, it features a durable steel construction, ensuring longevity in demanding environments. This swivel fitting is equipped with an M14 X 1.5 Din Tube connection on both sides, with a male fitting on one end and a female fitting on the other, providing a secure and versatile connection for hydraulic systems.

The Adaptall 90° Din X Fdin Swivel Complete is optimized for precision and efficiency, featuring dimensions such as a Ch1 width of 12mm, Ch2 width of 17mm, and various lengths including L1 at 23mm, L2 at 16mm, and L3 at 27mm. These specifications ensure a perfect fit and seamless integration into existing systems, making it a reliable choice for industrial machinery and equipment setups.

SKU: 5360S-06C

Supplier Part Number (MPN): 5360S-06C

Alternate Part Numbers: MI-08734050, MINO-03671X96023

Specifications

CH1 Width 12mm	CH2 Width 17mm	L1 Length 23mm	L2 Length 16mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size S06	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender F	Side 2 Size S06	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08734050, Alternate Part Number MINO-03671X96023	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5360S-06C	Product Weight 0.14 lbs

Product Questions & Answers (1)

Question by: Randy L on Apr 20, 2025, 8:27 AM

both sides on this fitting are M14 x 1.5 thread, right? just want to make sure before i order

Answer by: Customer Support on Apr 21, 2025, 6:58 PM

Correct on both counts. Side one and side two are each M14 x 1.5, and both are DIN tube type. The difference is that side one is male and side two is female, which is what gives you the swivel function at the female end. Size designation on both sides is S06, so you're working with a matched pair thread-wise all the way around.
