90* Din X Fdin Swivel Complete

Description & Features

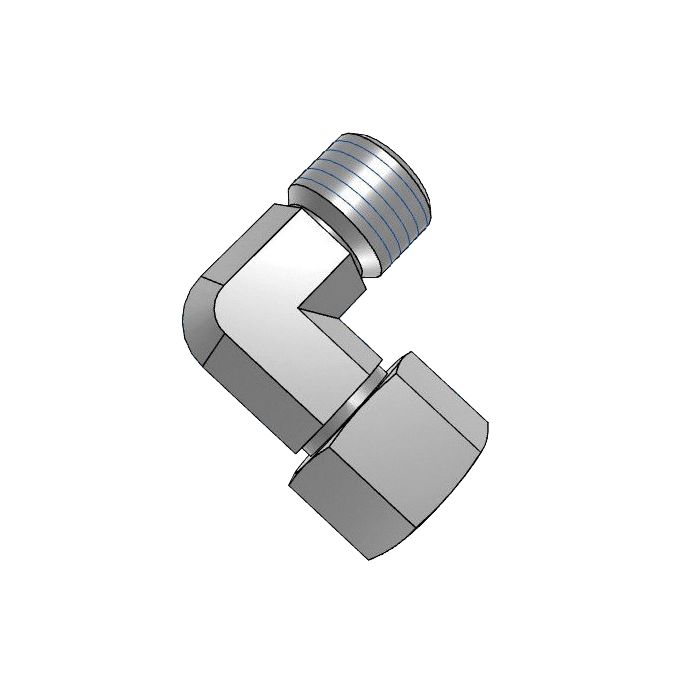

Adaptall America's 90 elbow component known as the 90* Din X Fdin Swivel Complete is crafted from steel for reliable performance in industrial environments. This high-quality connector features M24 X 1.5 threading accommodating both male and female ends.

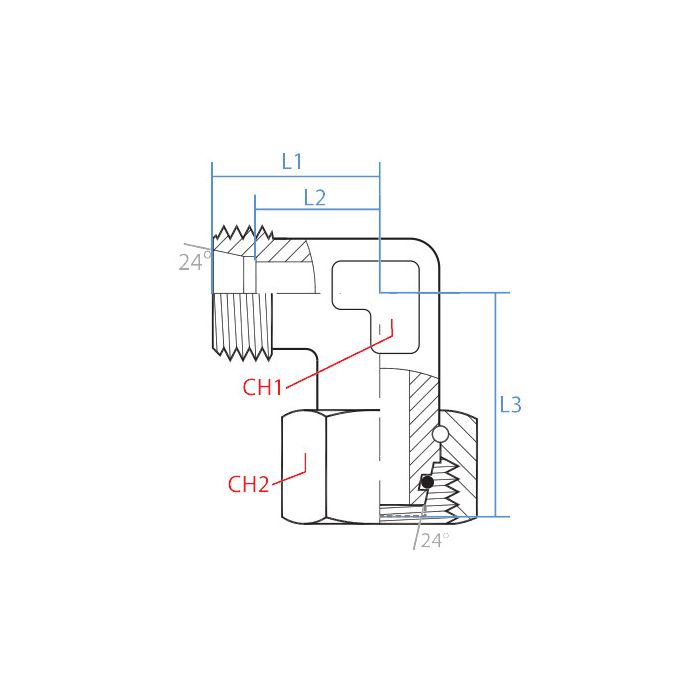

Designed with precise side dimensions: CH1 width at 24mm CH2 width at 30mm L1 length at 33mm L2 length at 24.5mm and L3 length at 36.5mm ensuring compatibility with S16 size configurations.

The product integrates seamlessly without the need for additional components like batteries blades or cases. It is non-adjustable with no valves or electrical parts simplifying its application and maintenance.

MPN: 5360S-16C

Supplier Part Number: 5360S-16C

Specifications

CH1 Width 24mm	CH2 Width 30mm	L1 Length 33mm	L2 Length 24.5mm	L3 Length 36.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout M24 X 1.5	Side 2 Gender F	Side 2 Size S16	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5360S-16C	Product Weight 0.55 lbs

Product Questions & Answers (1)

Question by: Harvey M on Sep 30, 2025, 11:30 AM

got a hose end that’s M24 x 1.5 on an S16 DIN tube, will this 90 elbow match up or am i off a size

Answer by: Customer Support on Oct 1, 2025, 2:41 PM

Fit comes down to the callouts, and this one is M24 x 1.5 on both sides with an S16 DIN tube configuration. Side 1 is male and side 2 is female, so it is meant to join an M24 x 1.5 male to an M24 x 1.5 female at a 90 degree angle.
