90* Din X Fdin Swivel Complete

Description & Features

This 90° elbow is a 90* Din X Fdin Swivel Complete, constructed of steel for durability in demanding hydraulic applications. It features a Din Tube Side 1 connection with M30 X 2.0 callout and S20 size, male gender, and a Din Tube Side 2 connection with M30 X 2.0 callout and S20 size, female gender.

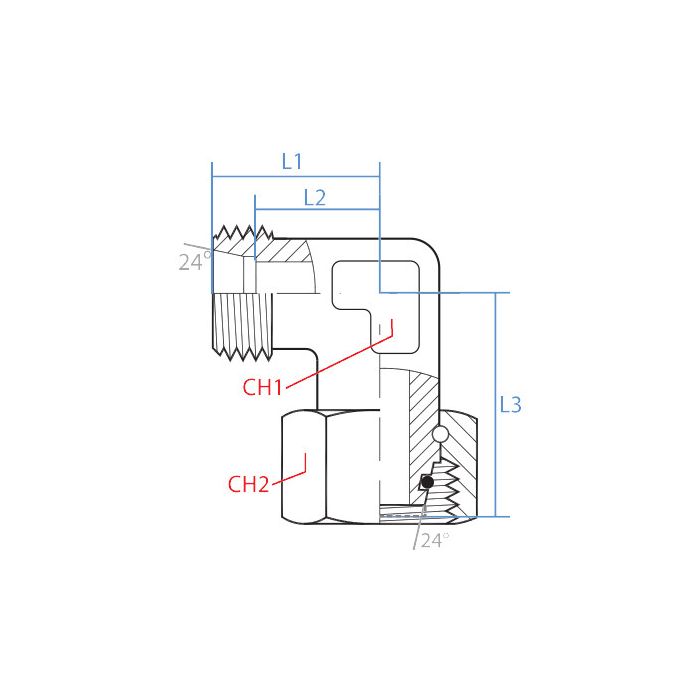

The Adaptall Ch1 Width is 27mm, Adaptall Ch2 Width is 36mm. Adaptall L1 Length: 37mm, Adaptall L2 Length: 26.5mm, Adaptall L3 Length: 44.5mm.

SKU: 5360S-20C

Supplier Part Number (MPN): 5360S-20C

Specifications

CH1 Width 27mm	CH2 Width 36mm	L1 Length 37mm	L2 Length 26.5mm	L3 Length 44.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size S20	Side 1 Type Din Tube	Side 2 Callout M30 X 2.0	Side 2 Gender F	Side 2 Size S20	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5360S-20C	Product Weight 1.08 lbs

Product Questions & Answers (2)

Question by: Diane H on Jan 9, 2026, 11:24 AM

Will this fitting work with standard DIN tubing?

Answer by: Customer Support on Jan 10, 2026, 9:34 PM

this 90-degree elbow is designed for use with DIN tubing. Both Side 1 and Side 2 connections are DIN tube type with M30 x 2.0 callouts and S20 size.

Question by: Warren M on Aug 13, 2025, 9:24 PM

got a tight spot on a line, is this the kind of 90 degree fitting that lets you turn the female end when you’re lining it up?

Answer by: Customer Support on Aug 15, 2025, 12:11 PM

With the swivel on the female DIN tube side, you can orient the elbow and then rotate that female end during hookup so the threads line up without having to twist the connected tube run.
