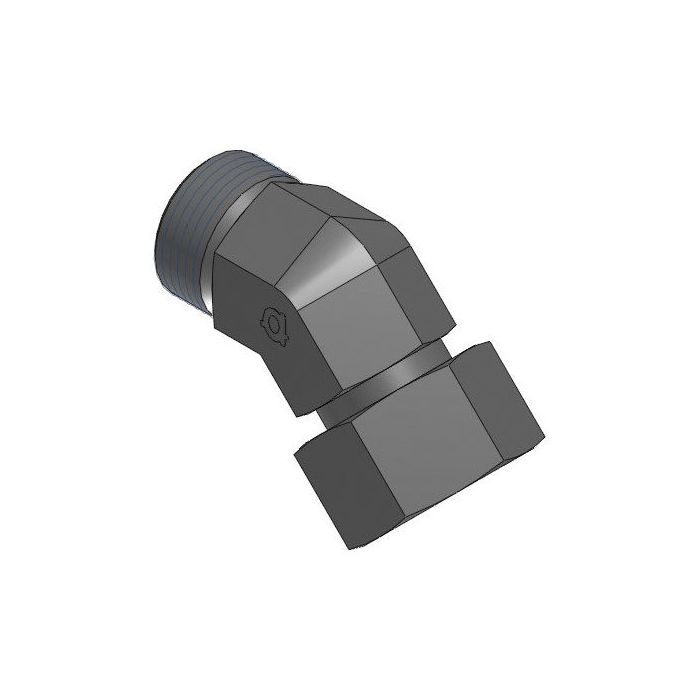

45* Din X F Din Swivel

Description & Features

Engineered for optimal performance in hydraulic systems, the 45° Din X F Din Swivel is crafted from durable steel, ensuring longevity and reliability. This swivel fitting features a 45° elbow design, ideal for navigating tight spaces and facilitating smooth fluid transitions. With a connection size of M12 x 1.5 on both ends, it seamlessly integrates into a variety of setups, thanks to its male and female Din Tube compatibility. The compact dimensions, with an L1 length of 16mm and an L3 length of 26mm, make it suitable for applications where space is at a premium.

Manufactured by Adaptall, this swivel fitting is characterized by its precise engineering, featuring a Ch1 width of 12mm and a Ch2 width of 14mm. These specifications ensure a secure fit and dependable performance in demanding environments. Whether you're working with complex hydraulic systems or straightforward installations, this swivel fitting offers the versatility and robustness you need.

SKU: 5362L-06

Supplier Part Number (MPN): 5362L-06

Specifications

Brand adapt-all	Connection Size 1 6 mm	Connection Size 2 6 mm	Connection Type Female Metric Swivel, Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Female Metric DIN 24 deg Tube Swivel	Dimension Standards DIN 2353, ISO 8434-1	Dimensions 16 mm L	Finish Zinc-Plated	Fitting Type 45 deg Elbow	Material Steel	Material Construction Carbon Steel	Series 5362 Series	Thread Size M12x1.5

Product Questions & Answers (3)

Question by: Marvin B on May 5, 2025, 6:03 PM

got a tight spot by the valve bank. is this the kind of fitting that helps turn the line without kinking it

Answer by: Customer Support on May 7, 2025, 6:00 AM

For tight routing, the 45 degree elbow shape helps you change direction without forcing a sharp bend in the tubing. The swivel style also makes it easier to line things up during assembly so the tube ends can seat cleanly.

Question by: Norm B on Nov 29, 2025, 7:00 PM

Got a tight bend in a steel line running M12 x 1.5 DIN tube fittings, will this swivel work in that kind of spot where a straight fitting just ain't gonna cut it?

Answer by: Customer Support on Dec 1, 2025, 6:54 AM

A 45 degree elbow is just the right move for exactly that situation. The M12 x 1.5 thread on both ends matches up with DIN tube connections on each side, male on one end and female on the other, so it threads right into an existing DIN tube run without needing adapters in between. The overall length runs 26mm at L3 and 16mm at L1, so it sits pretty compact. Tight routing situations are where this style of fitting earns its keep.

Question by: Dustin B on Dec 10, 2025, 9:59 AM

What kind of pressures can this thing handle? Don't see it listed.

Answer by: Customer Support on Dec 12, 2025, 6:57 AM

This swivel is made from steel for durability, but pressure ratings aren't specified in the provided information.
