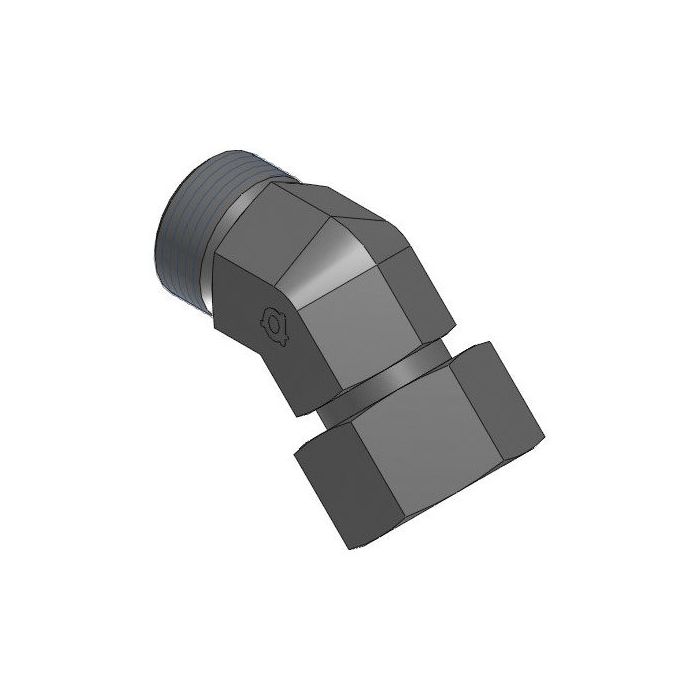

45* Din X F Din Swivel

Description & Features

This steel 45° elbow is a 45* Din X F Din Swivel, featuring a DIN tube connection on both ends. Side 1 has a male M16 X 1.5 connection with an L10 size, while Side 2 features a female M16 X 1.5 connection, also with an L10 size.

The Adaptall Ch1 width is 14mm, and the Adaptall Ch2 width is 19mm. The L1 length measures 19mm, the L2 length is 12mm, and the L3 length is 29mm.

SKU: 5362L-10

Supplier Part Number (MPN): 5362L-10

Specifications

Brand adapt-all	Connection Size 2 10 mm	Connection Type Female Metric Swivel, Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Female Metric DIN 24 deg Tube Swivel	Dimension Standards DIN 2353, ISO 8434-1	Dimensions 19 mm L	Finish Zinc-Plated	Fitting Type 45 deg Elbow	Material Steel	Material Construction Carbon Steel	Series 5362 Series	Thread Size M16x1.5

Product Questions & Answers (2)

Question by: Lyle S on May 10, 2025, 12:12 PM

What exactly is the thread setup on this fitting, both sides M16 x 1.5, or are they different?

Answer by: Customer Support on May 12, 2025, 9:13 AM

Both sides run M16 x 1.5, but they're not the same end. Side 1 is a male DIN tube connection and Side 2 is female, both at L10 size. The 45-degree angle between them is what makes it useful when you need to redirect a line without putting a straight adapter in a tight spot.

Question by: Cheryl A on Apr 22, 2025, 6:07 PM

trying to swap out a bent elbow on a DIN tube line. is this one male M16 x 1.5 on one end and a female swivel M16 x 1.5 on the other?

Answer by: Customer Support on Apr 24, 2025, 7:11 AM

It matches a DIN tube connection with an M16 x 1.5 male on Side 1 and an M16 x 1.5 female swivel on Side 2, both in size L10.
