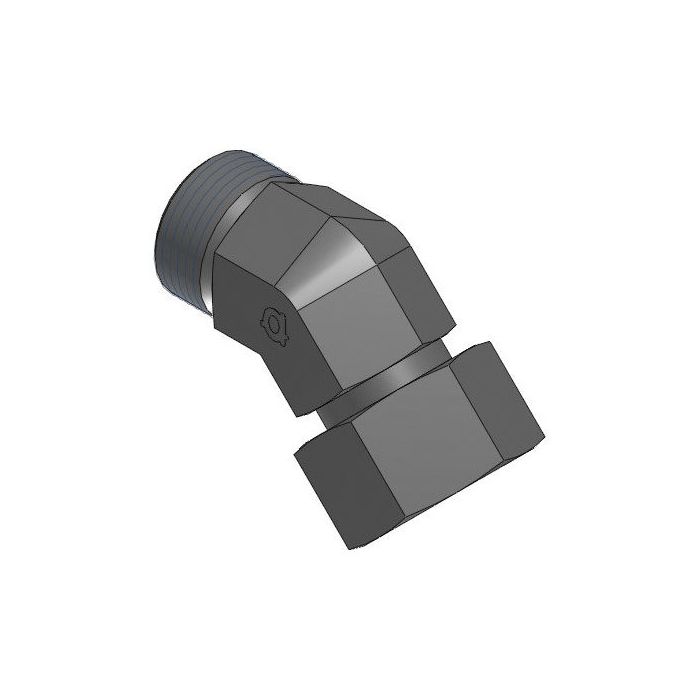

45* Din X F Din Swivel

Description & Features

This steel 45° elbow Adaptall fitting features a DIN male to DIN female swivel connection. The 45* Din X F Din Swivel has a Side 1 callout of M26 X 1.5 and Side 1 Size of L18. The Side 2 callout is M26 X 1.5, and the Side 2 Size is L18.

Adaptall Ch1 Width: 27mm. Adaptall Ch2 Width: 32mm. Adaptall L1 Length: 24mm. Adaptall L2 Length: 16.5mm. Adaptall L3 Length: 35.5mm.

SKU: 5362L-18

Supplier Part Number (MPN): 5362L-18

Specifications

Brand adapt-all	Connection Size 1 18 mm	Connection Size 2 18 mm	Connection Type Female Metric Swivel, Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Female Metric DIN 24 deg Tube Swivel	Dimension Standards DIN 2353, ISO 8434-1	Dimensions 24 mm L	Finish Zinc-Plated	Fitting Type 45 deg Elbow	Material Steel	Material Construction Carbon Steel	Series 5362 Series	Thread Size M26x1.5

Product Questions & Answers (1)

Question by: Glen W on Aug 23, 2025, 9:52 PM

Just want to make sure this fitting is steel and not something else.

Answer by: Customer Support on Aug 25, 2025, 8:26 AM

Correct, this Adaptall fitting is made from steel.
