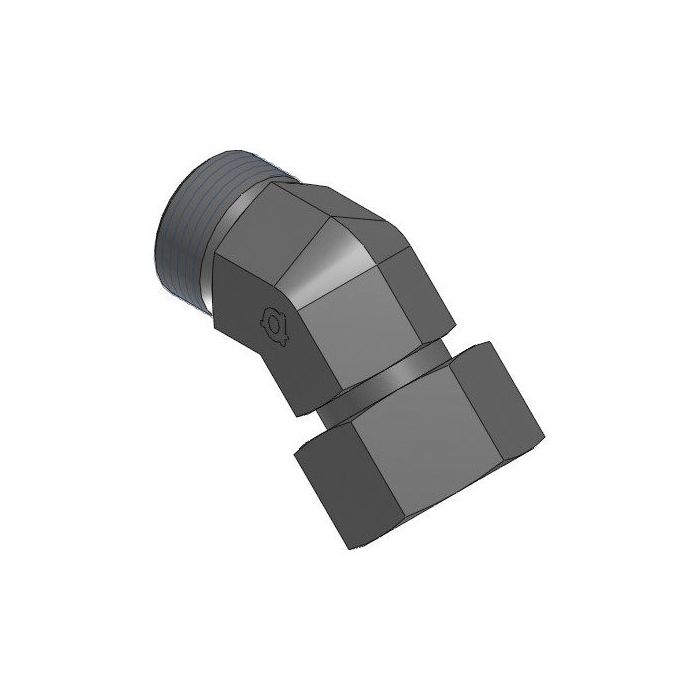

45* Din X F Din Swivel

Description & Features

Engineered for precise hydraulic applications, the 45° Din X F Din Swivel is crafted from durable steel, ensuring robust performance and longevity. This swivel connector features a 45-degree elbow design, allowing for optimal angular adjustments in complex hydraulic systems. The swivel connects with M30 X 2.0 threads on both ends, accommodating a seamless connection between male and female Din tubes of size L22. Such specifications facilitate versatile use in industrial hydraulic applications, where reliable fluid conveyance is critical.

The swivel's dimensions include a Ch1 width of 33mm, Ch2 width of 36mm, L1 length of 26mm, L2 length of 18.5mm, and L3 length of 38.5mm, contributing to its adaptability in space-constrained environments. This product is a testament to Adaptall's commitment to quality and precision, meeting the rigorous demands of professional hydraulic assemblies.

SKU: 5362L-22

Supplier Part Number (MPN): 5362L-22

Specifications

CH1 Width 33mm	CH2 Width 36mm	L1 Length 26mm	L2 Length 18.5mm	L3 Length 38.5mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout M30 X 2.0	Side 2 Gender F	Side 2 Size L22	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5362L-22	Product Weight 0.68 lbs

Product Questions & Answers (1)

Question by: Judy M on Nov 19, 2025, 8:02 AM

trying to replace a 45 degree DIN swivel, do both ends on this one take M30 x 2.0 and fit L22 tube?

Answer by: Customer Support on Nov 20, 2025, 9:52 PM

It is a 45° elbow swivel with M30 x 2.0 threads on both sides, set up as a male DIN tube end to a female DIN tube end, both sized for L22.
