Din X F Din Swivel Branch Tee

Description & Features

This steel Adaptall Din X F Din Swivel Branch Tee features a tee shape and DIN tube connections. Side 1 and Side 2 both feature M22 x 1.5 male ends, size L15. Side 3 features a M22 x 1.5 female end, size L15.

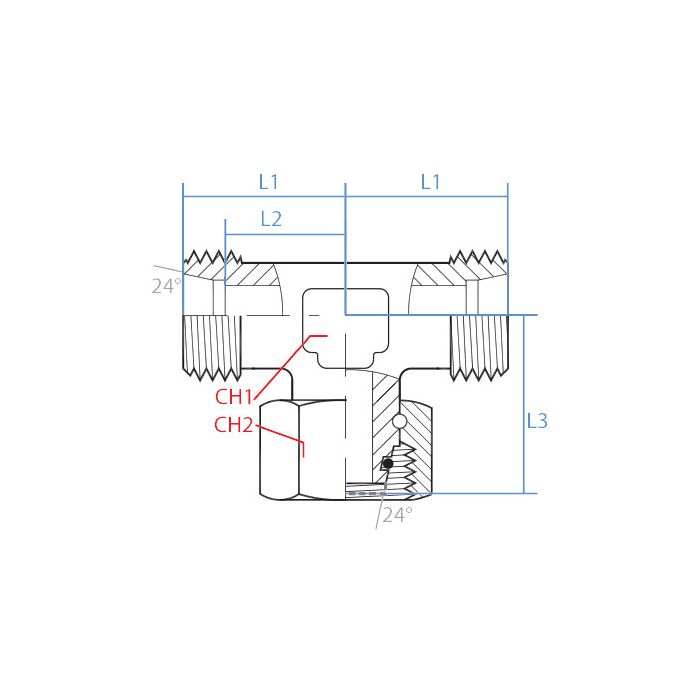

The Adaptall Ch1 width is 19mm, Adaptall Ch2 width is 27mm, Adaptall L1 length is 28mm, Adaptall L2 length is 21mm, and Adaptall L3 length is 32.5mm.

SKU: 5387L-15

Supplier Part Number (MPN): 5387L-15

Specifications

CH1 Width 19mm	CH2 Width 27mm	L1 Length 28mm	L2 Length 21mm	L3 Length 32.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size L15	Side 2 Type Din Tube	Side 3 Callout M22 X 1.5	Side 3 Gender F	Side 3 Size L15	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5387L-15	Product Weight 0.42 lbs

Product Questions & Answers (3)

Question by: Denise G on Aug 17, 2025, 8:12 AM

What size wrench do I need for these fittings?

Answer by: Customer Support on Aug 18, 2025, 3:30 PM

Adaptall designed this tee with a 19mm wrench flat on one side (Ch1) and a 27mm wrench flat on the other (Ch2). Make sure you have both on hand when you're putting it together.

Question by: Darryl J on Aug 20, 2025, 4:49 PM

got two L15 DIN tube lines with M22 x 1.5 male ends, does this tee have the same on both straight-through sides?

Answer by: Customer Support on Aug 22, 2025, 4:36 PM

Both Side 1 and Side 2 are DIN tube connections with M22 x 1.5 male ends in size L15, so the straight run matches what you described.

Question by: Ray R on Sep 22, 2025, 4:41 PM

All three ports on this thing are M22 x 1.5, that right? Just want to make sure before I go ordering it for a DIN tube setup we got running.

Answer by: Customer Support on Sep 24, 2025, 12:22 PM

All three connections are M22 x 1.5, yes. Sides 1 and 2 are male DIN tube ends, both sized L15, and Side 3 is a female DIN tube end, also L15. So if your existing lines are running that thread and tube size throughout, this tee should drop right into place without needing any additional adapters on the branch.
