main product photo

Din X F Din Swivel Branch Tee

Ask A Question

Description & Features

Engineered for robust industrial applications, the Din X F Din Swivel Branch Tee is crafted from durable steel, ensuring longevity and reliability in demanding environments. Its unique tee shape allows for efficient fluid distribution across three ports, making it ideal for complex hydraulic systems. Each connection features a precise M30 x 2.0 thread size, with two male DIN tube connections on the sides and a female DIN tube connection at the branch, all sized at L22. This configuration provides flexibility in connecting different hydraulic lines while maintaining a secure and leak-proof fit.

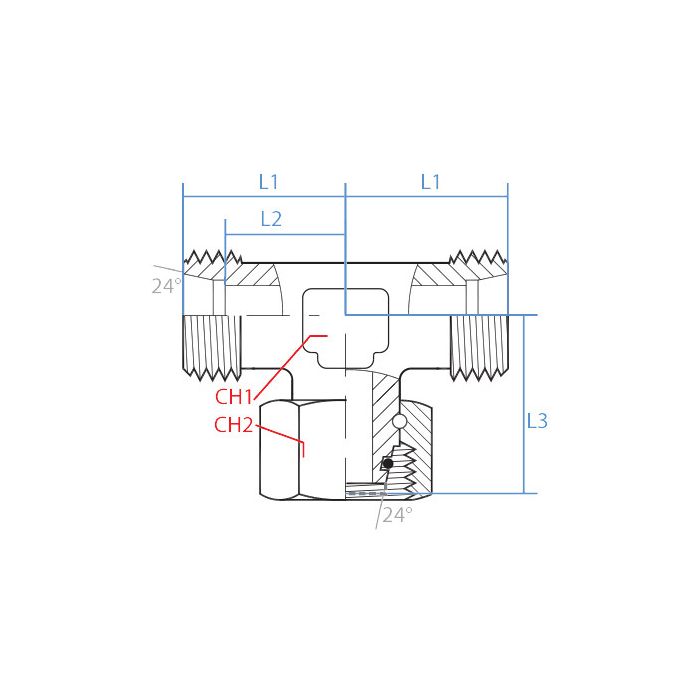

Precision is key with this component, highlighted by its meticulous dimensions: a 27mm width for Adaptall Ch1, a 36mm width for Adaptall Ch2, and lengths of 35mm, 27.5mm, and 38.5mm for L1, L2, and L3 respectively. These attributes ensure compatibility and ease of integration into existing systems. The Adaptall brand is known for its quality and precision, offering peace of mind to professionals in the hydraulic industry.

SKU: 5387L-22

Supplier Part Number (MPN): 5387L-22

Specifications

Brand
adapt-all
Connection Size 1
L22
Connection Size 2
22 mm
Connection Size 3
L22
Connection Type
Female Metric, Female Metric Swivel
Connection Type 1
Female Metric DIN 24 deg Tube Swivel
Connection Type 2
Female Metric DIN 24 deg Tube
Connection Type 3
Female Metric DIN 24 deg Tube Swivel
Dimension Standards
DIN 2353, ISO 8434-1
Dimensions
70 mm L
Finish
Zinc-Plated
Fitting Type
Tee
Material
Steel
Material Construction
Carbon Steel
Series
5387 Series
Thread Size
M30x2

Similar Products

Model Number Connection Size 1 Connection Size 2 Connection Size 3 Thread Size Hex Size Price Action
Din X F Din Swivel Branch Tee

5387L-06

6 mm

6 mm

M12x1.5

Din X F Din Swivel Branch Tee

5387L-10

10 mm

S10

M16x1.5

Din X F Din Swivel Branch Tee

5387L-12

L12

12 mm

M18x1.5

17 x 22 mm

Din X F Din Swivel Branch Tee

5387L-15

L15

15 mm

L15

M22x1.5

19 x 27 mm

Din X F Din Swivel Branch Tee

5387L-18

18 mm

18 mm

18L

M26x1.5

Din X F Din Swivel Branch Tee

5387L-28

L28

L28

M36x2

Product Questions & Answers (1)

Question by: Shane H on Aug 25, 2025, 2:16 PM
trying to tie three DIN tube lines together, is this tee all L22 with M30 x 2.0 threads on every port?
Answer by: Customer Support on Aug 27, 2025, 6:20 AM
All three ports are DIN tube size L22 and each one uses an M30 x 2.0 thread. The two side ports are male DIN tube connections, and the branch port is a female DIN tube connection.
