main product photo

Din X F Din Swivel Branch Tee

Ask A Question

Description & Features

Built in steel and configured as a tee, this Adaptall fitting connects two DIN tube ends on the run ports with a female DIN swivel on the branch. All three ports are sized S16 with an M24 x 1.5 thread callout, providing a consistent connection standard across the assembly. The swivel branch allows rotational adjustment during installation, reducing the need for repositioning rigid components to achieve proper alignment.

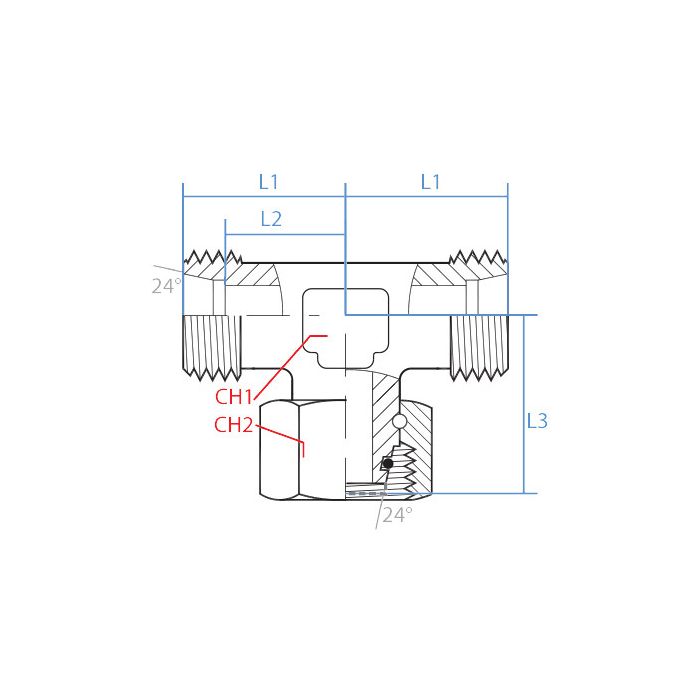

The Din X F Din Swivel Branch Tee is well suited for hydraulic circuits where a branch takeoff is needed from an inline DIN tube run. Key dimensions include a Ch1 wrench width of 24mm, Ch2 of 30mm, and overall lengths of 33mm (L1), 24.5mm (L2), and 36.5mm (L3). Steel construction supports the mechanical demands typical of industrial hydraulic applications.

SKU: 5387S-16

Supplier Part Number (MPN): 5387S-16

Specifications

Brand
adapt-all
Connection Size 1
S16
Connection Size 2
S16
Connection Size 3
S16
Connection Type
Female Metric, Female Metric Swivel
Connection Type 1
Female Metric DIN 24 deg Tube Swivel
Connection Type 2
Female Metric DIN 24 deg Tube
Connection Type 3
Female Metric DIN 24 deg Tube Swivel
Dimension Standards
DIN 2353, ISO 8434-1
Dimensions
66 mm L
Finish
Zinc-Plated
Fitting Type
Tee
Hex Size
24 mm, 30 mm
Material
Steel
Material Construction
Carbon Steel
Series
5387 Series
Thread Size
M24x1.5

Similar Products

Model Number Connection Size 1 Connection Size 2 Connection Size 3 Thread Size Hex Size Price Action
Din X F Din Swivel Branch Tee

5387S-20

20 mm

20 mm

S20

M30x2

Product Questions & Answers (3)

Question by: Lyle G on Dec 13, 2025, 8:29 PM
Hey, will this tee fitting work with standard DIN connections I already got setup?
Answer by: Customer Support on Dec 15, 2025, 6:39 AM
Yes, it's designed to connect directly to other DIN tube ends, making it suitable for branching off from an existing DIN tube run. All three ports are M24 x 1.5, so you should have no issues with compatibility.
Question by: Kurt P on Jun 28, 2025, 4:50 PM
all three ports on this fitting are the same size and thread, right? Just want to make sure I ain't gotta mix and match anything before I order.
Answer by: Customer Support on Jun 30, 2025, 11:31 AM
All three ports run S16 with an M24 x 1.5 thread, so you're working with a consistent connection standard across the whole assembly. No mismatched sizes to deal with.
Question by: Vince R on Jul 21, 2025, 6:43 AM
got a DIN tube run already, will this tee let me branch off without fighting the alignment?
Answer by: Customer Support on Jul 23, 2025, 6:15 AM
With the swivel on the female DIN branch port, you can rotate that branch during install to line things up. The two run ports are DIN tube ends, so you keep the inline run straight while clocking the branch where you need it.
