Din-Fdin Swivel Run Tee Comple

Description & Features

This steel DIN-Fdin Swivel Run Tee Comple features a tee shape and Adaptall material for reliable performance. It is designed with Side 1, Side 2, and Side 3 Callouts of M12 X 1.5.

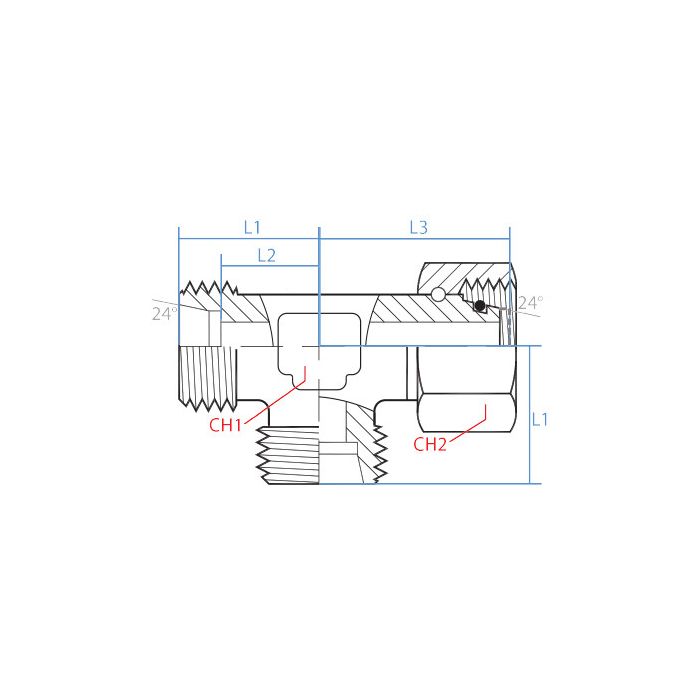

The Adaptall Side 1 and Side 2 are male DIN Tube connections, each with a size of L06. Adaptall Side 3 is a female DIN TUBE connection, also with a size of L06. Dimensions include an Adaptall Ch1 Width of 12mm, Adaptall Ch2 Width of 14mm, Adaptall L1 Length of 19mm, Adaptall L2 Length of 12mm and Adaptall L3 Length of 26mm.

SKU: 5390L-06C

Supplier Part Number (MPN): 5390L-06C

Specifications

CH1 Width 12mm	CH2 Width 14mm	L1 Length 19mm	L2 Length 12mm	L3 Length 26mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size L06	Side 2 Type Din Tube	Side 3 Callout M12 X 1.5	Side 3 Gender F	Side 3 Size L06	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5390L-06C	Product Weight 0.12 lbs

Product Questions & Answers (2)

Question by: Gary M on Dec 4, 2025, 6:16 PM

trying to replace a run tee on a DIN tube line, are all three ports on this one M12 x 1.5 and L06?

Answer by: Customer Support on Dec 6, 2025, 12:32 PM

All three sides are called out as M12 x 1.5 with DIN tube connections. Side 1 and Side 2 are male in size L06, and Side 3 is female in size L06.

Question by: Neal M on May 20, 2025, 8:14 PM

What exactly is the connection setup on this tee? I got two lines coming in and need to know which ends are male and which is female before I go ordering the wrong thing again.

Answer by: Customer Support on May 22, 2025, 9:39 AM

Two of the ports, Sides 1 and 2, are male DIN tube connections at L06 size with an M12 x 1.5 thread callout. Side 3 is the female DIN tube connection, also L06 and M12 x 1.5. So if you're running a straight-through line with a branch off it, the female port on Side 3 would be your branch or your inlet depending on how you're hydraulic connections it up.
