Din-Fdin Swivel Run Tee Comple

Description & Features

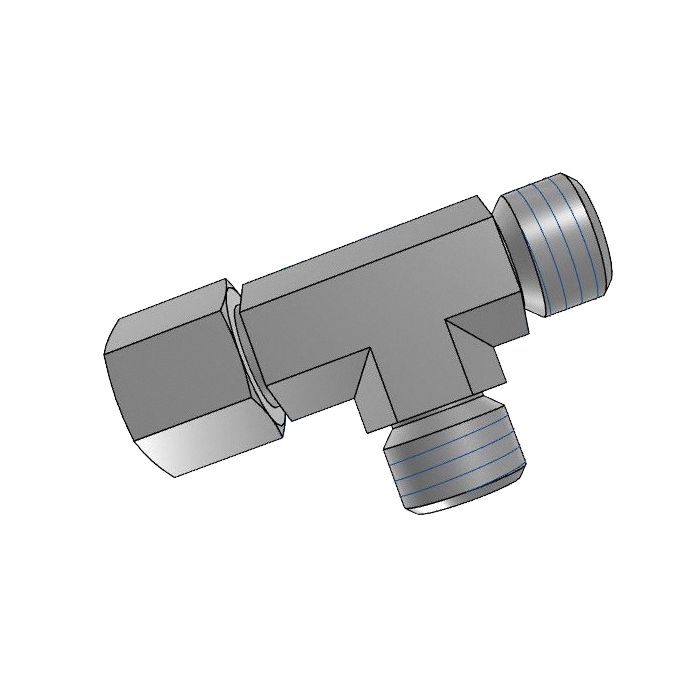

The Din-Fdin Swivel Run Tee Comple is manufactured by Adaptall America. This tee-shaped metric fitting is engineered from high-quality steel ensuring durability and reliable performance in various applications including industrial and mechanical settings.

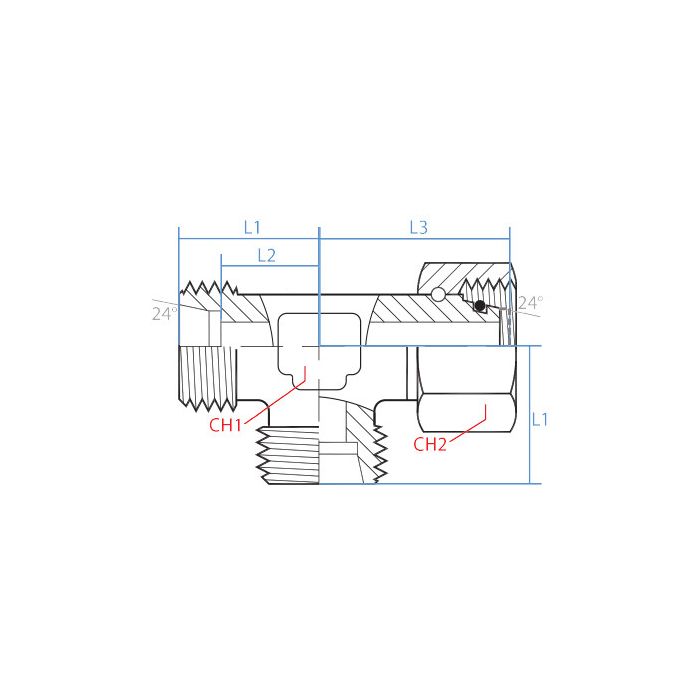

With precise dimensions of CH1 width at 12mm CH2 width at 17mm L1 length at 21mm L2 length at 14mm and L3 length at 27.5mm this fitting supports accurate and efficient installation. Designed with M14 X 1.5 threaded connections on all three sides it features male threads on sides 1 and 2 and a female thread on side 3 catering to multiple configurations and connection needs.

The Din Tube type design enhances this fitting's compatibility with metric tubing systems. This product does not include adjustable ends ratcheting features or thread sealant focusing solely on its core functionality.

Supplier Part Number: 5390L-08C

Specifications

CH1 Width 12mm	CH2 Width 17mm	L1 Length 21mm	L2 Length 14mm	L3 Length 27.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size L08	Side 2 Type Din Tube	Side 3 Callout M14 X 1.5	Side 3 Gender F	Side 3 Size L08	Alternate Part Numbers Alternate Part Number MI-08734069, Alternate Part Number MINO-03671X96026	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5390L-08C	Product Weight 0.13 lbs

Product Questions & Answers (1)

Question by: Scott M on May 12, 2025, 11:55 AM

all three sides on this thing are M14 x 1.5 threads right, or does side 3 run a different spec?

Answer by: Customer Support on May 14, 2025, 6:02 AM

All three sides share the same M14 x 1.5 thread callout. Sides 1 and 2 are male DIN tube connections and side 3 is female, but the thread pitch stays consistent across the fitting. That makes it straightforward to work into a metric system without mixing thread specs at the tee.
