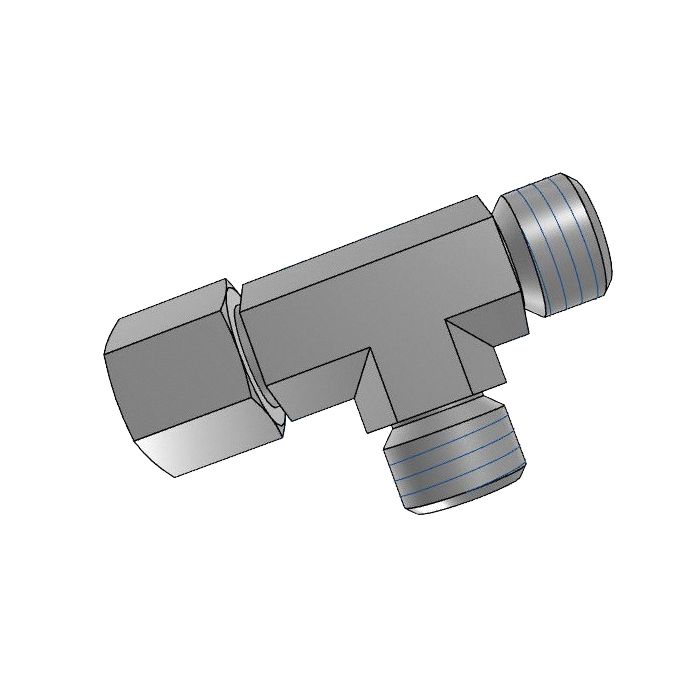

Din-Fdin Swivel Run Tee Comple

Ask A Question

Description & Features

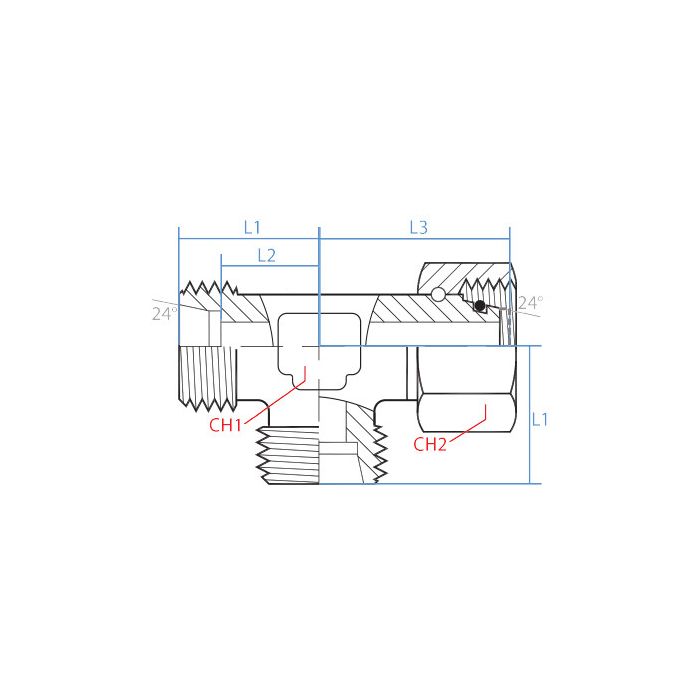

This Din-Fdin Swivel Run Tee Comple, constructed of durable steel, features a tee shape for versatile connection options. It is designed with Adaptall features, including a Ch1 width of 14mm and a Ch2 width of 19mm. The tee offers reliable performance in demanding hydraulic applications.

This fitting includes Adaptall L1 length of 22mm, L2 length of 15mm, and L3 length of 29mm. Side 1, Side 2, and Side 3 all feature DIN Tube connections. Side 1 and Side 2 are M16 x 1.5 male connections, while Side 3 is an M16 x 1.5 female connection, all size L10.

SKU: 5390L-10C

Supplier Part Number (MPN): 5390L-10C

Specifications

Brand
adapt-all
Connection Size 2
10 mm
Connection Size 3
S10
Connection Type
Female Metric, Female Metric Swivel
Connection Type 1
Female Metric DIN 24 deg Tube Swivel
Connection Type 2
Female Metric DIN 24 deg Tube
Connection Type 3
Female Metric DIN 24 deg Tube Swivel
Dimension Standards
DIN 2353, ISO 8434-1
Dimensions
51 mm L
Finish
Zinc-Plated
Fitting Type
Tee
Material
Steel
Material Construction
Carbon Steel
Series
5390L Series
Thread Size
M16x1.5

Product Questions & Answers (1)

Question by: Eddie G on Sep 16, 2025, 8:17 PM
Will this tee fitting work with standard DIN tubing?
Answer by: Customer Support on Sep 18, 2025, 11:10 AM
Yes, all three sides of this tee are designed for DIN tube connections. Sides 1 and 2 are M16 x 1.5 male connections, and Side 3 is an M16 x 1.5 female connection, all size L10.
