Din X F Din Swivel Run Tee

Description & Features

Constructed from steel, this M22 x 1.5 run tee provides a three-port DIN tube connection in a compact tee configuration. Two male DIN ports run inline, while a female DIN swivel port exits at the branch, all three sized at L15. The swivel feature on the branch side allows for rotational adjustment during assembly, which simplifies routing in tight installations.

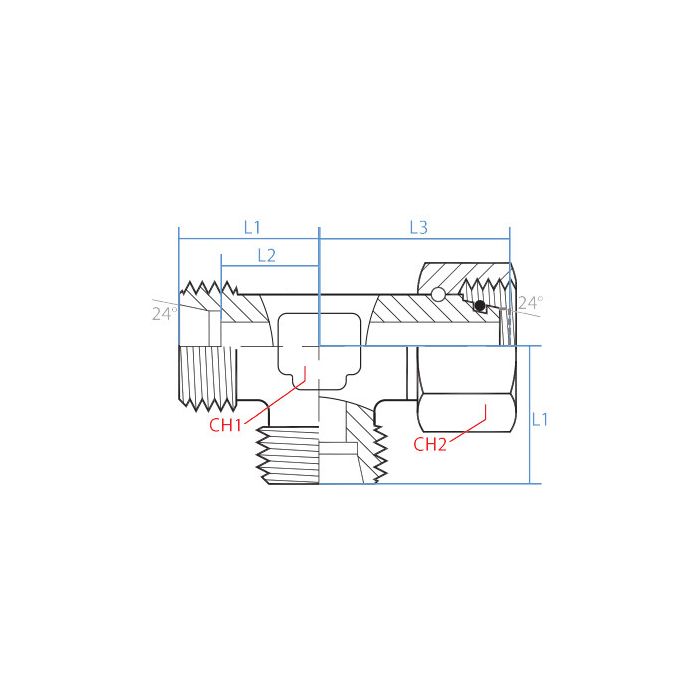

The Din X F Din Swivel Run Tee is an Adaptall product, built to standard DIN tube fitting dimensions. With wrench flats measuring 19mm on side one and 27mm on side two, and overall lengths of 28mm, 21mm, and 32.5mm across the three ports, the fitting integrates readily into hydraulic circuits where a tee junction with a swiveling branch connection is required.

SKU: 5390L-15

Supplier Part Number (MPN): 5390L-15

Specifications

Brand adapt-all	Connection Size 1 L15	Connection Size 2 15 mm	Connection Size 3 L15	Connection Type Female Metric, Female Metric Swivel	Connection Type 1 Female Metric DIN 24 deg Tube Swivel	Connection Type 2 Female Metric DIN 24 deg Tube	Connection Type 3 Female Metric DIN 24 deg Tube Swivel	Dimension Standards DIN 2353	Dimensions 60.5 mm L	Finish Zinc-Plated	Fitting Type Tee	Hex Size 19 x 27 mm	Material Steel	Material Construction Carbon Steel	Series 5390 Series	Thread Size M22x1.5

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Size 3	Thread Size	Hex Size
5390L-08	8 mm	8 mm		M14x1.5
5390L-10		10 mm	S10	M16x1.5
5390L-12	L12	12 mm		M18x1.5	17 x 22 mm
5390L-18	18 mm	18 mm	18L	M26x1.5
5390L-22	L22	22 mm	L22	M30x2
5390L-42	L42		L42	M52x2
