Din-Fdin Swivel Run Tee Comple

Description & Features

A steel tee fitting designed for DIN tube connections, the Din-Fdin Swivel Run Tee Comple provides a convenient three-port configuration suitable for hydraulic line branching applications. Two male ports and one female swivel port all carry an M22 x 1.5 thread at the L15 size designation, allowing consistent DIN tube connections across all three sides of the fitting.

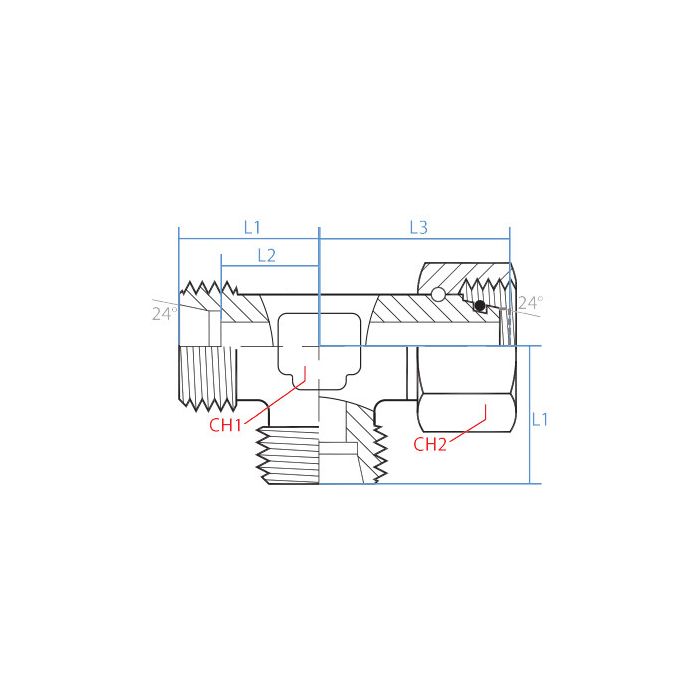

Steel construction supports use in demanding hydraulic environments. The swivel feature on the female port aids installation by allowing rotation during assembly without disturbing the seated connection. Key dimensions include a Ch1 width of 19mm, a Ch2 width of 27mm, and lengths of 28mm, 21mm, and 32.5mm across the three sides.

SKU: 5390L-15C

Supplier Part Number (MPN): 5390L-15C

Specifications

CH1 Width 19mm	CH2 Width 27mm	L1 Length 28mm	L2 Length 21mm	L3 Length 32.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size L15	Side 2 Type Din Tube	Side 3 Callout M22 X 1.5	Side 3 Gender F	Side 3 Size L15	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5390L-15C	Product Weight 0.40 lbs

Product Questions & Answers (1)

Question by: Hugh P on May 11, 2025, 9:40 AM

Trying to branch a line with DIN tube ends, is this tee set up with the same thread on all three ports?

Answer by: Customer Support on May 13, 2025, 6:56 AM

Across all three sides you get M22 x 1.5 DIN tube connections at the L15 size. Two ports are male and the third is a female swivel, so the thread callout stays consistent while the genders differ.
