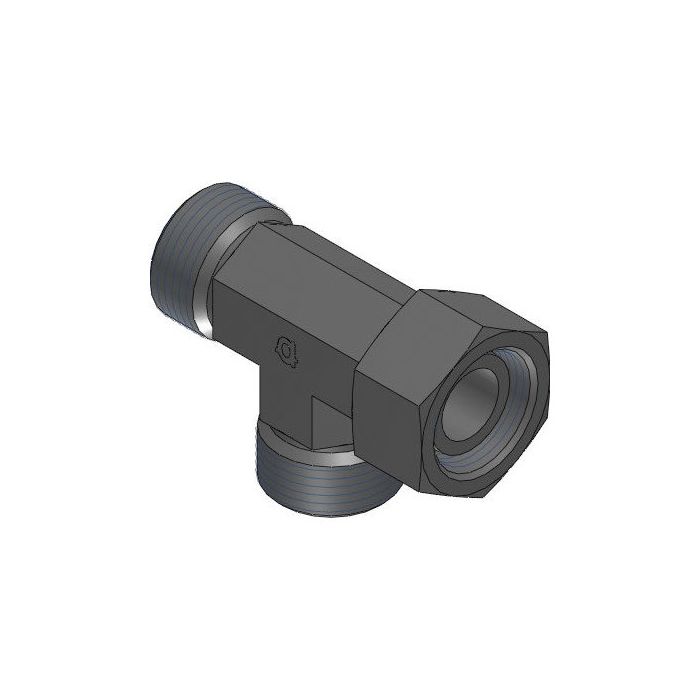

main product photo

Din X F Din Swivel Run Tee

Ask A Question

Description & Features

Designed for DIN tube connections in hydraulic systems requiring a branch-line configuration, the Din X F Din Swivel Run Tee from Adaptall provides three M26 x 1.5 ports in a compact steel tee body. Two male DIN tube ends (Sides 1 and 2) form the run, while a female DIN tube swivel port (Side 3) accommodates the branch connection, allowing for rotational adjustment during assembly to ease alignment.

Sized at L18 across all three ports, this fitting is built from steel for durability in demanding hydraulic applications. Key dimensions include a Ch1 wrench width of 24mm, Ch2 of 32mm, and overall lengths of 31mm (L1), 23.5mm (L2), and 35.5mm (L3). The Adaptall fitting system is widely used for its interchangeability across hose and tube assemblies in industrial and mobile hydraulic circuits.

SKU: 5390L-18

Supplier Part Number (MPN): 5390L-18

Specifications

Brand
adapt-all
Connection Size 1
18 mm
Connection Size 2
18 mm
Connection Size 3
18L
Connection Type
Female Metric, Female Metric Swivel
Connection Type 1
Female Metric DIN 24 deg Tube Swivel
Connection Type 2
Female Metric DIN 24 deg Tube
Connection Type 3
Female Metric DIN 24 deg Tube Swivel
Dimension Standards
DIN 2353
Dimensions
66.5 mm L
Finish
Zinc-Plated
Fitting Type
Tee
Material
Steel
Material Construction
Carbon Steel
Series
5390 Series
Thread Size
M26x1.5

Product Questions & Answers (2)

Question by: Rusty H on Dec 13, 2025, 3:33 PM
Will this tee work for connecting three M26 x 1.5 DIN tubes?
Answer by: Customer Support on Dec 15, 2025, 8:03 AM
Yes, that's exactly what it's for. This Adaptall tee is designed to connect three M26 x 1.5 DIN tubes in a hydraulic system. Two of the connections are male, and one is a female swivel.
Question by: Janet K on Mar 21, 2026, 4:23 PM
trying to tee off a DIN tube line, are all three ports on this one M26 x 1.5 and size L18?
Answer by: Customer Support on Mar 23, 2026, 6:04 AM
For a branch-line tee in a DIN tube setup, it gives you three matching ports: Side 1 is M26 x 1.5 male DIN tube (L18), Side 2 is M26 x 1.5 male DIN tube (L18), and Side 3 is M26 x 1.5 female DIN tube swivel (L18).
