Din X F Din Swivel Run Tee

Description & Features

Designed for robust industrial applications, the Din X F Din Swivel Run Tee is an essential component for hydraulic systems requiring reliable connections. Its high-quality steel construction ensures durability and strength, capable of withstanding challenging environments. The tee features a versatile M30 x 2.0 thread on all three sides, with both male and female DIN tube configurations on Side 1, Side 2, and Side 3, respectively, facilitating seamless integration into existing setups.

This run tee measures 35mm in length with a Ch1 width of 27mm and a Ch2 width of 36mm, providing a compact yet sturdy solution for tight spaces. The L22 size on all sides makes it a versatile fit for various hydraulic applications. Manufactured by Adaptall, this swivel run tee ensures precision and reliability, making it a preferred choice for professionals in the hydraulic industry.

SKU: 5390L-22

Supplier Part Number (MPN): 5390L-22

Specifications

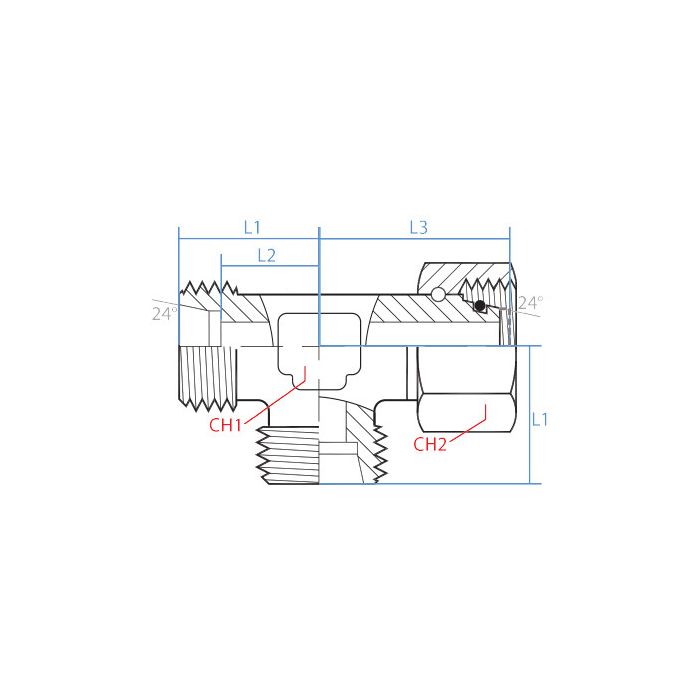

CH1 Width 27mm	CH2 Width 36mm	L1 Length 35mm	L2 Length 27.5mm	L3 Length 38.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout M30 X 2.0	Side 2 Gender M	Side 2 Size L22	Side 2 Type Din Tube	Side 3 Callout M30 X 2.0	Side 3 Gender F	Side 3 Size L22	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5390L-22	Product Weight 0.77 lbs

Product Questions & Answers (3)

Question by: Scott P on Sep 7, 2025, 7:00 PM

trying to replace a run tee on my machine, how do i know if this one matches the threads and tube size

Answer by: Customer Support on Sep 9, 2025, 2:16 PM

Fit comes down to the callouts on each port. This tee is L22 DIN tube on all three sides with M30 x 2.0 threads, and it is set up with Side 1 and Side 2 as male DIN tube ends and Side 3 as a female DIN tube end.

Question by: Johnny M on Jan 22, 2026, 9:02 PM

All three sides on this thing run M30 x 2.0 threads, but which ones are male and which one's female? Trying to figure out how it'll connect up before I order.

Answer by: Customer Support on Jan 24, 2026, 11:12 AM

Two of the three sides are male DIN tube connections, those are Side 1 and Side 2. Side 3 is the female DIN tube connection. All three carry the same M30 x 2.0 thread and the same L22 size, so the thread spec is consistent across the whole fitting. The swivel function is on the run, which gives you some rotational flexibility when you're routing lines into place.

Question by: Jerry H on May 11, 2025, 11:45 AM

What size is that female end on this tee fitting? Gotta make sure I get the right size hose.

Answer by: Customer Support on May 13, 2025, 6:30 AM

That Side 3 female end uses a L22 size. It's a DIN tube style with a M30 x 2.0 callout.
