Din-Fdin Swivel Run Tee Comple

Description & Features

Designed for precision and durability, the Din-Fdin Swivel Run Tee Comple is an essential component in hydraulic systems requiring reliable connections. This tee fitting is constructed from high-quality steel, ensuring robust performance in demanding industrial environments. Featuring a versatile tee shape, it facilitates efficient fluid flow distribution while maximizing space and layout flexibility.

The fitting is equipped with three connection sides, each with an M30 x 2.0 thread, suitable for L22 Din Tube applications. Two male connections and one female connection allow for seamless integration within existing hydraulic setups. The compact dimensions, 35mm, 27.5mm, and 38.5mm in length, make it ideal for installations where space is a premium concern.

Engineered by Adaptall, this swivel run tee boasts a reliable design that supports a wide range of hydraulic applications. The specific widths of 27mm and 36mm on the Adaptall Ch1 and Ch2 enhance its adaptability and precise fit in various configurations.

SKU: 5390L-22C

Supplier Part Number (MPN): 5390L-22C

Specifications

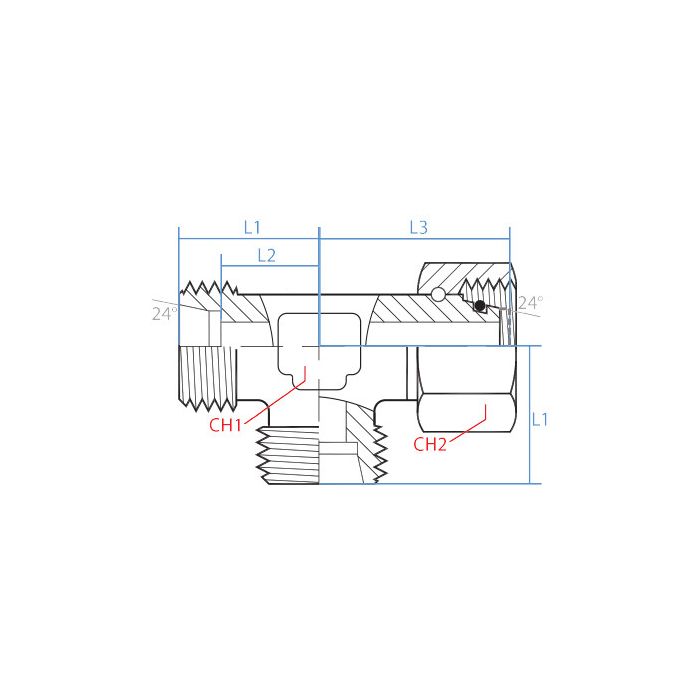

CH1 Width 27mm	CH2 Width 36mm	L1 Length 35mm	L2 Length 27.5mm	L3 Length 38.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout M30 X 2.0	Side 2 Gender M	Side 2 Size L22	Side 2 Type Din Tube	Side 3 Callout M30 X 2.0	Side 3 Gender F	Side 3 Size L22	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5390L-22C	Product Weight 0.77 lbs

Product Questions & Answers (2)

Question by: Roger C on May 8, 2025, 3:32 PM

trying to tie three L22 DIN tube lines together, is this the tee with two male ends and one female swivel?

Answer by: Customer Support on May 9, 2025, 9:23 PM

Built as a swivel run tee, it has three DIN tube connections all in size L22 with M30 x 2.0 threads. Two sides are male and the third side is female, which fits the setup you described for joining three L22 DIN tube lines.

Question by: Kurt T on Aug 15, 2025, 4:12 PM

Got a spot in my hydraulic line where I need to split flow off to a third port, does this fitting have two male ends and one female, or is it the other way around?

Answer by: Customer Support on Aug 17, 2025, 7:41 AM

Two of the three sides are male and one is female. Sides 1 and 2 are both male M30 x 2.0 DIN tube connections sized at L22, and Side 3 is the female M30 x 2.0 connection, also L22. So depending on how your existing line is configured, you'd thread the female end onto a male port in your current setup and run the two male ends out to your distribution points.
