Din-Fdin Swivel Run Tee Comple

Description & Features

This steel Adaptall Din-Fdin Swivel Run Tee Comple features three DIN tube connections. Two connections are male with M45 x 2.0 threads and L35 size, while the third is female with M45 x 2.0 threads and L35 size.

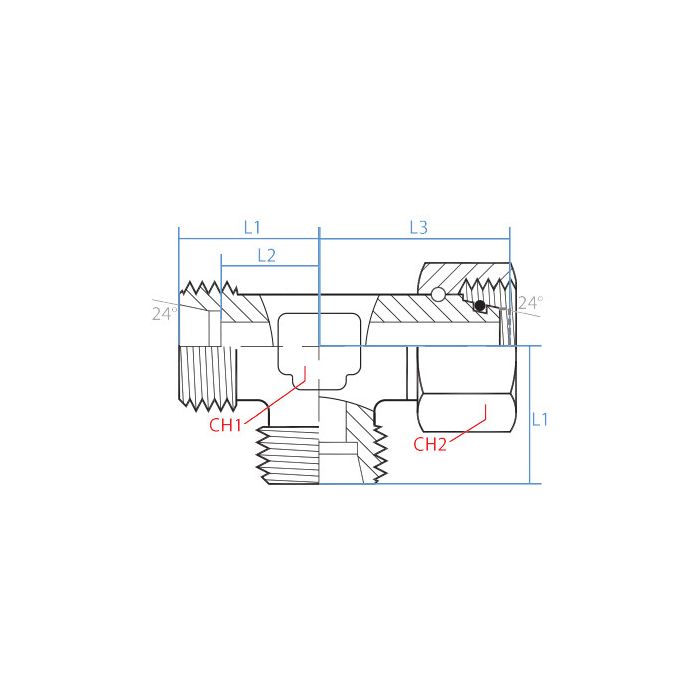

The Din-Fdin Swivel Run Tee Comple facilitates connections within hydraulic systems where DIN tube fittings are required. This tee fitting has a Ch1 width of 41mm, Ch2 width of 50mm, L1 length of 45mm, L2 length of 34.5mm, and L3 length of 51mm.

SKU: 5390L-35C

Supplier Part Number (MPN): 5390L-35C

Specifications

CH1 Width 41mm	CH2 Width 50mm	L1 Length 45mm	L2 Length 34.5mm	L3 Length 51mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M45 X 2.0	Side 1 Gender M	Side 1 Size L35	Side 1 Type Din Tube	Side 2 Callout M45 X 2.0	Side 2 Gender M	Side 2 Size L35	Side 2 Type Din Tube	Side 3 Callout M45 X 2.0	Side 3 Gender F	Side 3 Size L35	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5390L-35C	Product Weight 2.22 lbs

Product Questions & Answers (1)

Question by: Dustin C on May 15, 2025, 3:26 PM

got two male DIN tube ends already, will this tee give me a female M45 x 2.0 on the third port in L35?

Answer by: Customer Support on May 17, 2025, 3:13 PM

Yes, the run tee has three DIN tube connections in L35 with M45 x 2.0 threads. Two ports are male (M) and the third port is female (F).
