Din-Fdin Swivel Run Tee Comple

Description & Features

Configured as a swivel run tee in steel construction, this Adaptall fitting connects three M14 x 1.5 DIN tube ports in a tee arrangement. Both run-side ports (Side 1 and Side 2) are male DIN tube type at S06 sizing, while the branch port (Side 3) is a female DIN tube connection of the same thread and size. The swivel function on the branch allows for rotational adjustment during assembly, simplifying alignment in tight or complex hydraulic circuit layouts.

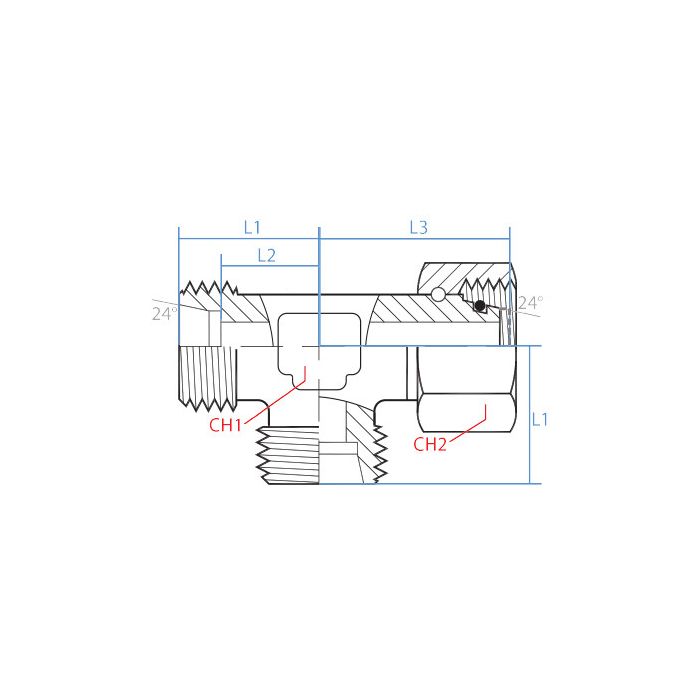

The Din-Fdin Swivel Run Tee Comple is built around consistent S06 sizing across all three ports, making it suited for hydraulic lines where a uniform thread standard is maintained throughout. Steel construction provides the structural integrity expected in demanding industrial hydraulic service. Key dimensional references include a 23mm L1 length, 16mm L2 length, and 27mm L3 length, with wrench flats of 12mm and 17mm on the respective ends.

SKU: 5390S-06C

Supplier Part Number (MPN): 5390S-06C

Specifications

CH1 Width 12mm	CH2 Width 17mm	L1 Length 23mm	L2 Length 16mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size S06	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size S06	Side 2 Type Din Tube	Side 3 Callout M14 X 1.5	Side 3 Gender F	Side 3 Size S06	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5390S-06C	Product Weight 0.16 lbs

Product Questions & Answers (1)

Question by: Rick G on Oct 16, 2025, 6:26 PM

Will this fitting work with standard DIN tube fittings I already have?

Answer by: Customer Support on Oct 18, 2025, 8:33 AM

This fitting is configured as a swivel run tee and connects three M14 x 1.5 DIN tube ports. All three ports (two male, one female) are built around consistent S06 sizing, so it should work seamlessly with other S06-sized DIN tube fittings.
