Din-Fdin Swivel Run Tee Comple

Description & Features

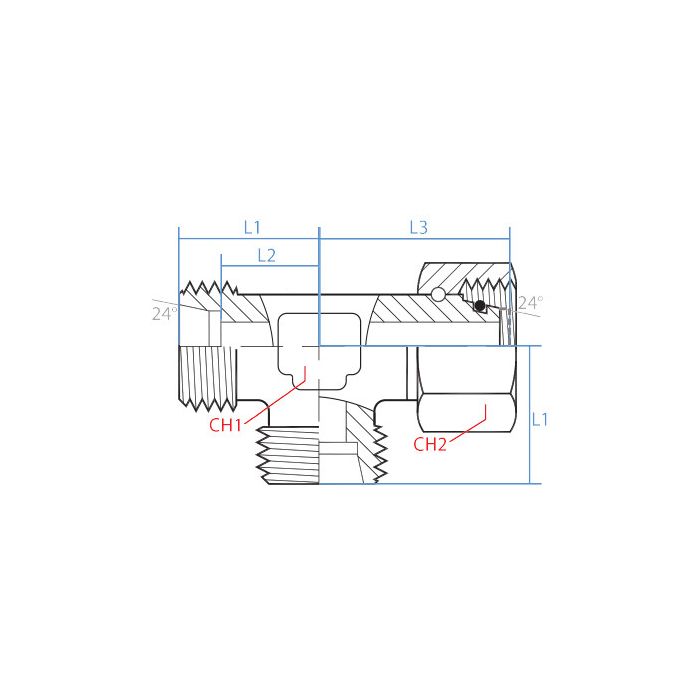

Designed for precision and reliability, the Din-Fdin Swivel Run Tee Comple by Adaptall is engineered to facilitate seamless fluid connections in industrial hydraulic systems. This robust tee fitting is constructed from high-quality steel, ensuring durability and longevity in demanding environments. It features a tee shape with symmetrical M16 x 1.5 male connections on two sides and a female connection on the third side, all adhering to DIN tube standards. The compact dimensions include a 14mm and 19mm width on channels 1 and 2, respectively, with lengths of 24mm, 17mm, and 27.5mm, making it suitable for tight installations.

Ideal for various hydraulic applications, this swivel run tee provides flexibility in system design and maintenance. Its compatibility with standard DIN tube fittings ensures ease of integration into existing setups. The Adaptall brand is synonymous with precision engineering, making this component a reliable choice for professionals seeking efficient and secure hydraulic connections.

SKU: 5390S-08C

Supplier Part Number (MPN): 5390S-08C

Specifications

CH1 Width 14mm	CH2 Width 19mm	L1 Length 24mm	L2 Length 17mm	L3 Length 27.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size S08	Side 1 Type Din Tube	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size S08	Side 2 Type Din Tube	Side 3 Callout M16 X 1.5	Side 3 Gender F	Side 3 Size S08	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5390S-08C	Product Weight 0.26 lbs

Product Questions & Answers (3)

Question by: Pete G on Aug 6, 2025, 9:43 PM

All three sides on this thing are M16 x 1.5, does that mean two of 'em are male and one's female, or is it some other configuration?

Answer by: Customer Support on Aug 8, 2025, 9:03 AM

Two sides are male M16 x 1.5 DIN tube connections and the third side is female, also M16 x 1.5 DIN tube. So you've got a symmetrical male-male run with a female branch off the tee. All three are S08 size, which keeps things consistent across the fitting.

Question by: Denise B on Aug 23, 2025, 11:29 AM

trying to tee off a DIN tube line, are both run ends on this one M16 x 1.5 male?

Answer by: Customer Support on Aug 24, 2025, 1:17 PM

On the two run sides, you get matching M16 x 1.5 male DIN tube connections. The third port is also M16 x 1.5 but it is a female DIN tube connection, so you can branch off without changing thread size.

Question by: Gene P on Oct 22, 2025, 9:12 AM

What kind of steel is this tee made out of?

Answer by: Customer Support on Oct 24, 2025, 6:36 AM

The tee is constructed from high-quality steel, ensuring it can hold up in demanding industrial settings.
