Din-Fdin Swivel Run Tee Comple

Description & Features

Configured as a tee with two male DIN tube ends on the run and a female DIN tube swivel on the branch, the Din-Fdin Swivel Run Tee Comple is designed for S10 hydraulic tube connections threaded at M18 x 1.5. The swivel feature on the branch port simplifies assembly in tight or awkward routing situations where a fixed fitting would be difficult to torque correctly.

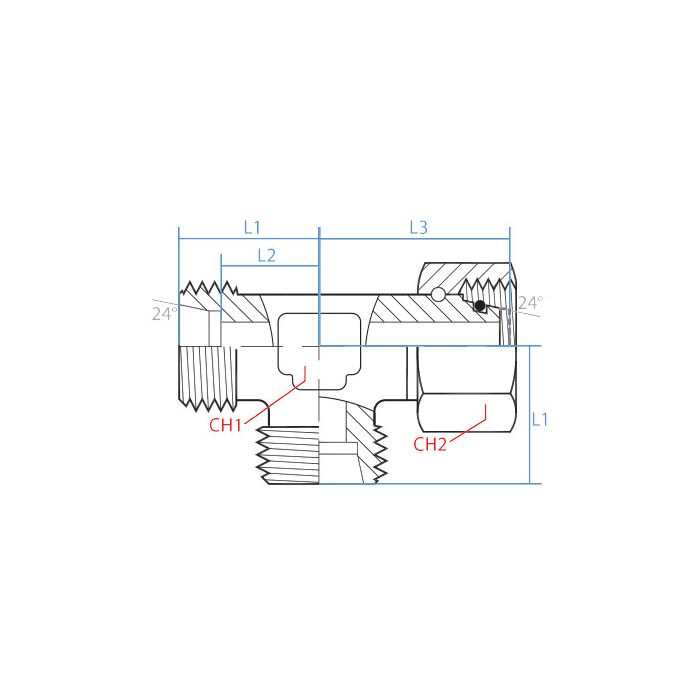

Manufactured in steel, this Adaptall fitting carries consistent M18 x 1.5 threading across all three ports. Key dimensions include a Ch1 wrench width of 17mm, Ch2 of 22mm, and lengths of 25mm, 17.5mm, and 30mm across the L1, L2, and L3 positions respectively. The Adaptall modular system makes this fitting a practical choice for custom hydraulic assembly configurations requiring a reliable tee junction.

SKU: 5390S-10C

Supplier Part Number (MPN): 5390S-10C

Specifications

Brand adapt-all	Connection Size 2 10 mm	Connection Size 3 S10	Connection Type Female Metric, Female Metric Swivel	Connection Type 1 Female Metric DIN 24 deg Tube Swivel	Connection Type 2 Female Metric DIN 24 deg Tube	Connection Type 3 Female Metric DIN 24 deg Tube Swivel	Dimension Standards DIN 2353, ISO 8434-1	Dimensions 55 mm L	Finish Zinc-Plated	Fitting Type Tee	Hex Size 17 x 22 mm	Material Steel	Material Construction Carbon Steel	Series 5390S Series	Thread Size M18x1.5

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Size 3	Thread Size	Hex Size
5390S-06C	6 mm	6 mm		M14x1.5
5390S-08C	8 mm	8 mm		M16x1.5
5390S-12C	L12	12 mm		M20x1.5	17 mm, 24 mm
5390S-14C	14 mm	14 mm	S14	M22x1.5	19 x 27 mm
5390S-16C	S16	S16	S16	M24x1.5	24 mm, 30 mm
5390S-20C	20 mm	20 mm	S20	M30x2
5390S-25C	S25	S25	S25	M36x2
5390S-30C	30 mm	S30		M42x2	41 mm, 50 mm
5390S-35C		35 mm	L35

Product Questions & Answers (3)

Question by: Darryl S on Sep 24, 2025, 9:58 PM

Got a tight routing situation where I can't really spin a fitting into place once the lines are run, would the swivel on the branch port here actually help with that?

Answer by: Customer Support on Sep 26, 2025, 5:34 PM

That swivel branch is exactly what makes this fitting worth grabbing for those kinds of spots. The two run ports are fixed male DIN ends, but the branch port is a female DIN swivel, so you can get it threaded in and then rotate that branch connection to meet your line without having to torque the whole assembly into position. All three ports are M18 x 1.5 on S10 tube, so as long as your hydraulic connections matches that, the swivel takes a lot of the frustration out of a cramped install.

Question by: Rod W on Jun 16, 2025, 2:07 PM

Will this tee fitting work with standard DIN tube sizes?

Answer by: Customer Support on Jun 17, 2025, 9:11 PM

This fitting is specifically designed for S10 hydraulic tube connections that are threaded at M18 x 1.5, adhering to DIN standards for that size.

Question by: Bobby K on Dec 16, 2025, 6:24 PM

trying to tie into an S10 DIN tube setup here, are all three ports on this tee M18 x 1.5?

Answer by: Customer Support on Dec 18, 2025, 5:38 PM

For S10 DIN tube connections, all three ports use the same M18 x 1.5 thread. The run has two male DIN tube ends, and the branch is a female DIN tube swivel, all in that same size and thread.
