Din X F Din Swivel Run Tee

Description & Features

Crafted from durable steel, the Din X F Din Swivel Run Tee is designed for robust performance in hydraulic systems. This precision-engineered component features a tee shape, facilitating efficient directional flow management. With M20 x 1.5 threading on all three sides, it ensures secure and leak-proof connections in your hydraulic setup. The male ends measure 17mm and 24mm in width, while the female end offers a flexible swivel design for easy installation and alignment.

This hydraulic fitting is tailored for applications demanding high reliability and precision. The compact dimensions, with lengths of 29mm, 21.5mm, and 31mm for various parts, allow it to fit seamlessly into compact spaces without compromising performance. Trust in the Adaptall brand for high-quality hydraulic components that meet stringent industry standards.

SKU: 5390S-12

Supplier Part Number (MPN): 5390S-12

Specifications

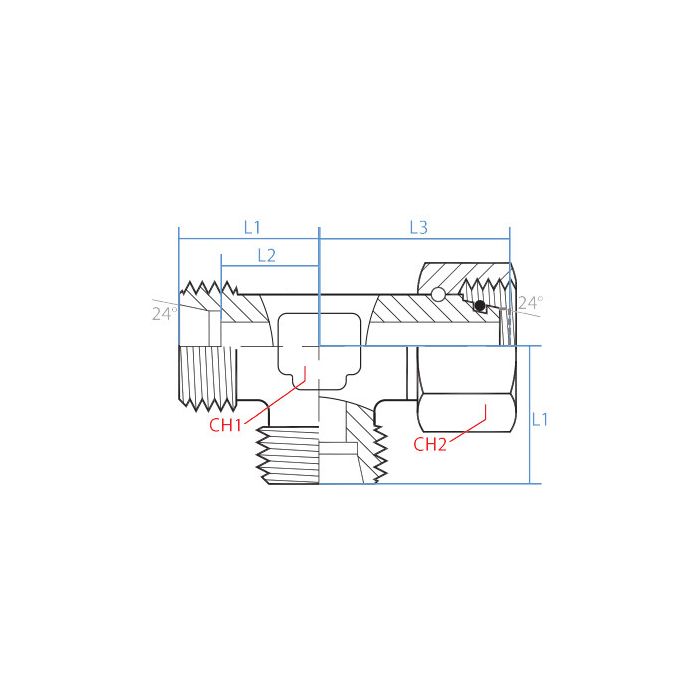

CH1 Width 17mm	CH2 Width 24mm	L1 Length 29mm	L2 Length 21.5mm	L3 Length 31mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size S12	Side 2 Type Din Tube	Side 3 Callout M20 X 1.5	Side 3 Gender F	Side 3 Size S12	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5390S-12	Product Weight 0.35 lbs

Product Questions & Answers (2)

Question by: Glen B on Jan 10, 2026, 4:14 PM

trying to hook up a tee in a tight spot, what thread is on all three ports of this run tee?

Answer by: Customer Support on Jan 12, 2026, 6:33 AM

All three connections are M20 x 1.5 DIN tube threads. Two sides are male (S12) and the third side is a female (S12) swivel.

Question by: Gary T on Aug 3, 2025, 3:23 PM

All three ports on this thing run M20 x 1.5 threading? Just want to make sure before I go ordering a bunch of fittings to match up with it.

Answer by: Customer Support on Aug 4, 2025, 9:54 PM

All three connections on the 5390S-12 use M20 x 1.5 thread, so you only need one thread spec across the board when sourcing your mating fittings. Two of the ports are male DIN tube ends and the third is a female DIN tube port with a swivel design, which gives you some wiggle room during installation for getting alignment right without fighting the whole assembly.
