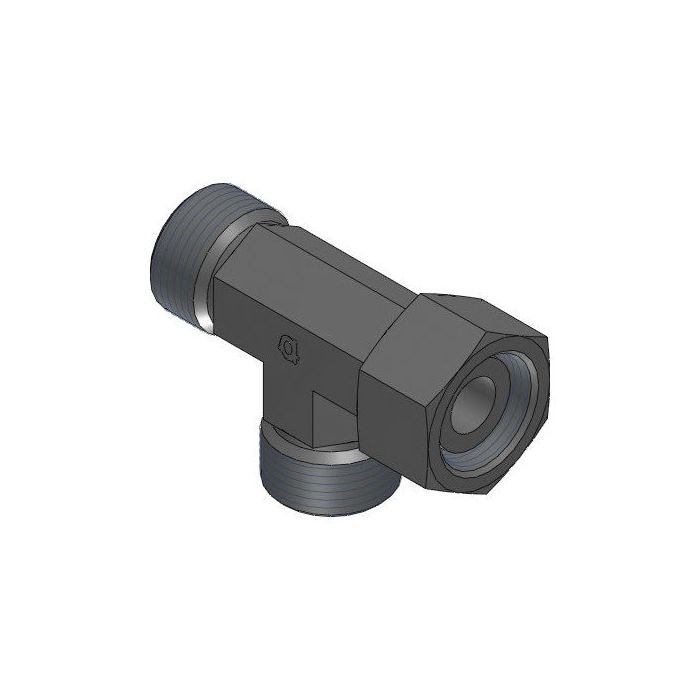

Din X F Din Swivel Run Tee

Description & Features

This Adaptall steel tee fitting features DIN tube connections on two ends and a female DIN tube connection on the third. Each male DIN end has a M24 X 1.5 thread callout with S16 sizing.

The Din X F Din Swivel Run Tee is constructed from durable steel, ensuring reliable performance in demanding hydraulic applications. This tee fitting provides a secure and leak-free connection for fluid transfer.

SKU: 5390S-16

Supplier Part Number (MPN): 5390S-16

Specifications

Brand adapt-all	Connection Size 1 S16	Connection Size 2 S16	Connection Size 3 S16	Connection Type Female Metric, Female Metric Swivel	Connection Type 1 Female Metric DIN 24 deg Tube Swivel	Connection Type 2 Female Metric DIN 24 deg Tube	Connection Type 3 Female Metric DIN 24 deg Tube Swivel	Dimension Standards DIN 2353	Dimensions 69.5 mm L	Finish Zinc-Plated	Fitting Type Tee	Hex Size 24 mm, 30 mm	Material Steel	Material Construction Carbon Steel	Series 5390 Series	Thread Size M24x1.5

Product Questions & Answers (1)

Question by: Merle L on Jan 31, 2026, 2:12 PM

i got two DIN tube ends that are M24 x 1.5, S16. Is this tee the right one for that?

Answer by: Customer Support on Feb 2, 2026, 6:53 AM

All three ports on this run tee are M24 x 1.5 with S16 sizing. Two sides are male DIN tube connections, and the third leg is a female DIN tube connection.
