Din-Fdin Swivel Run Tee Comple

Ask A Question

Description & Features

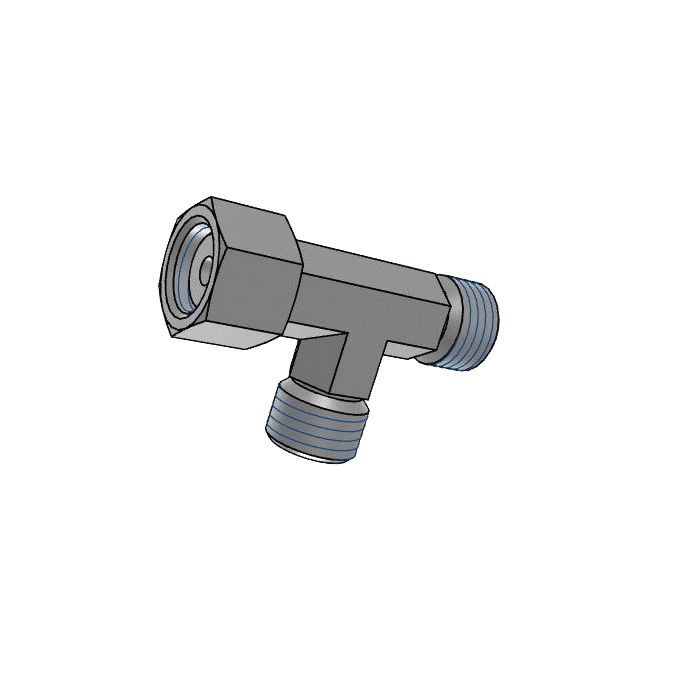

This steel Din-Fdin Swivel Run Tee Comple features DIN tube connections on all three sides. Two sides are male M24 X 1.5 with a size of S16, while the third side is female M24 X 1.5 with a size of S16.

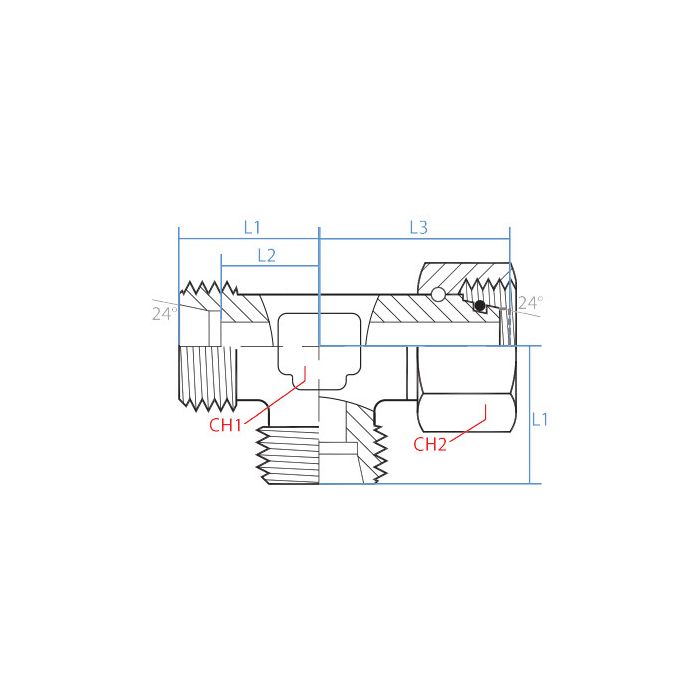

This Adaptall tee fitting has a Ch1 width of 24mm, Ch2 width of 30mm, L1 length of 33mm, L2 length of 24.5mm, and L3 Length of 36.5mm.

SKU: 5390S-16C

Supplier Part Number (MPN): 5390S-16C

Specifications

Brand
adapt-all
Connection Size 1
S16
Connection Size 2
S16
Connection Size 3
S16
Connection Type
Female Metric, Female Metric Swivel
Connection Type 1
Female Metric DIN 24 deg Tube Swivel
Connection Type 2
Female Metric DIN 24 deg Tube
Connection Type 3
Female Metric DIN 24 deg Tube Swivel
Dimension Standards
DIN 2353, ISO 8434-1
Dimensions
69.5 mm L
Finish
Zinc-Plated
Fitting Type
Tee
Hex Size
24 mm, 30 mm
Material
Steel
Material Construction
Carbon Steel
Series
5390S Series
Thread Size
M24x1.5

Product Questions & Answers (1)

Question by: Lance W on May 5, 2025, 1:41 PM
Will this tee work with standard DIN fittings?
Answer by: Customer Support on May 7, 2025, 6:33 AM
Yes, it's designed to work with DIN tube connections on all three sides.
