Din-Fdin Swivel Run Tee Comple

Description & Features

Constructed from steel, this tee-configuration hydraulic fitting connects three lines in a single body using DIN tube ends on all three ports. Two male M30 x 2.0 DIN tube connections form the run, while a female M30 x 2.0 swivel DIN tube port serves as the branch, making this the Din-Fdin Swivel Run Tee Comple a practical choice where a rotatable branch connection is needed within a DIN-standard hydraulic circuit.

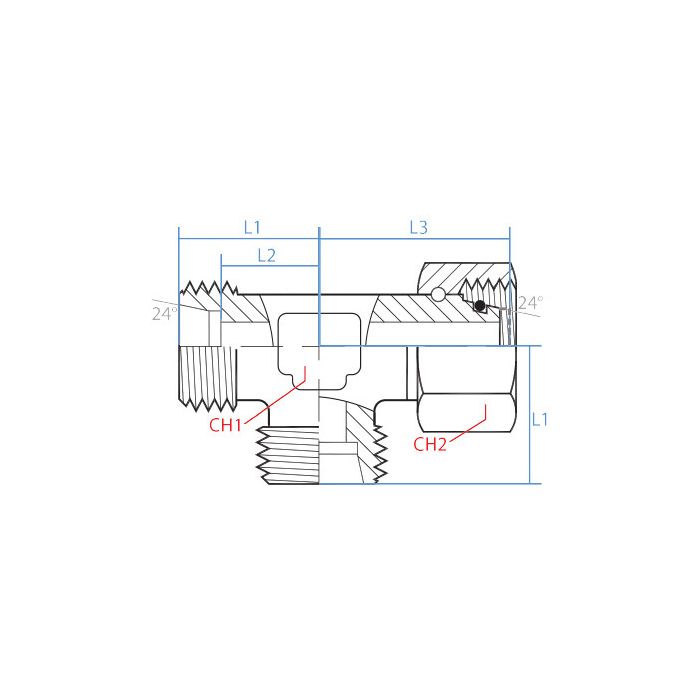

All three ports share an S20 size designation. The fitting measures 37mm along L1 and 44.5mm along L3, with an L2 length of 26.5mm. Wrench flats are sized at 27mm and 36mm across the two connection points. The swivel branch allows for angular adjustment during assembly, reducing stress on connected lines in tight or fixed-mounting configurations.

SKU: 5390S-20C

Supplier Part Number (MPN): 5390S-20C

Specifications

Brand adapt-all	Connection Size 1 20 mm	Connection Size 2 20 mm	Connection Size 3 S20	Connection Type Female Metric, Female Metric Swivel	Connection Type 1 Female Metric DIN 24 deg Tube Swivel	Connection Type 2 Female Metric DIN 24 deg Tube	Connection Type 3 Female Metric DIN 24 deg Tube Swivel	Dimension Standards DIN 2353, ISO 8434-1	Dimensions 81.5 mm L	Finish Zinc-Plated	Fitting Type Tee	Material Steel	Material Construction Carbon Steel	Series 5390S Series	Thread Size M30x2

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Size 3	Thread Size	Hex Size
5390S-06C	6 mm	6 mm		M14x1.5
5390S-08C	8 mm	8 mm		M16x1.5
5390S-10C		10 mm	S10	M18x1.5	17 x 22 mm
5390S-12C	L12	12 mm		M20x1.5	17 mm, 24 mm
5390S-14C	14 mm	14 mm	S14	M22x1.5	19 x 27 mm
5390S-16C	S16	S16	S16	M24x1.5	24 mm, 30 mm
5390S-25C	S25	S25	S25	M36x2
5390S-30C	30 mm	S30		M42x2	41 mm, 50 mm
5390S-35C		35 mm	L35

Product Questions & Answers (3)

Question by: Gary C on Jan 3, 2026, 9:32 PM

got a DIN setup with M30 x 2.0 tube ends, is this tee all the same size on every port or am i gonna get surprised on the branch?

Answer by: Customer Support on Jan 5, 2026, 6:10 PM

All three ports are S20 DIN tube connections with an M30 x 2.0 thread. The run has two male M30 x 2.0 DIN tube ends, and the branch is a female M30 x 2.0 swivel DIN tube port.

Question by: Travis R on Oct 16, 2025, 5:40 PM

Got a bracket-mounted manifold where the branch line can't rotate after install, does the swivel on this fitting help with that kind of situation?

Answer by: Customer Support on Oct 18, 2025, 6:25 AM

That's exactly where this fitting earns its keep. The branch port is a female M30 x 2.0 swivel DIN tube connection, which means you can dial in the angle during assembly before everything gets locked down. If your branch line runs to a fixed point and you need the fitting to meet it cleanly without putting a bend or twist in the hose, the swivel gives you that adjustment. The two run ports are fixed male DIN tube ends, so those stay straight through, but the branch is where you get your flexibility.

Question by: Rusty K on Aug 30, 2025, 9:36 PM

Will this tee work with standard M30 x 2.0 fittings?

Answer by: Customer Support on Sep 1, 2025, 6:56 AM

Yes, this tee uses M30 x 2.0 DIN tube connections on all three ports, so it will work with any standard fitting of that size.
