Din-Fdin Swivel Run Tee Comple

Description & Features

This Din-Fdin Swivel Run Tee Comple is a robust solution for industrial hydraulic systems requiring reliable connections. Constructed from durable steel, it features a tee shape with M36 X 2.0 connections, ensuring compatibility with a variety of DIN tube systems. The design incorporates both male and female connections, with both Side 1 and Side 2 being male (M36 X 2.0, S25) and Side 3 being female (M36 X 2.0, S25), providing versatile integration options.

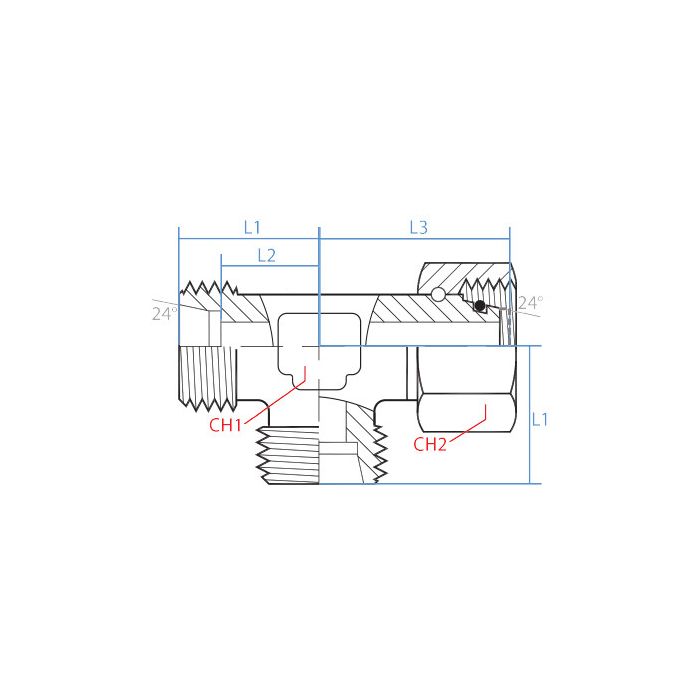

With precise dimensions, including a Ch1 width of 37mm, Ch2 width of 46mm, and lengths of L1 at 42mm, L2 at 30mm, and L3 at 50mm, this tee fitting is engineered for secure and stable assembly. The product's adaptability and robust construction make it an ideal choice for demanding hydraulic applications, where dependable performance is critical.

SKU: 5390S-25C

Supplier Part Number (MPN): 5390S-25C

Specifications

Brand adapt-all	Connection Size 1 S25	Connection Size 2 S25	Connection Size 3 S25	Connection Type Female Metric, Female Metric Swivel	Connection Type 1 Female Metric DIN 24 deg Tube Swivel	Connection Type 2 Female Metric DIN 24 deg Tube	Connection Type 3 Female Metric DIN 24 deg Tube Swivel	Dimension Standards DIN 2353, ISO 8434-1	Dimensions 92 mm L	Finish Zinc-Plated	Fitting Type Tee	Material Steel	Material Construction Carbon Steel	Series 5390S Series	Thread Size M36x2

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Size 3	Thread Size	Hex Size
5390S-06C	6 mm	6 mm		M14x1.5
5390S-08C	8 mm	8 mm		M16x1.5
5390S-10C		10 mm	S10	M18x1.5	17 x 22 mm
5390S-12C	L12	12 mm		M20x1.5	17 mm, 24 mm
5390S-14C	14 mm	14 mm	S14	M22x1.5	19 x 27 mm
5390S-16C	S16	S16	S16	M24x1.5	24 mm, 30 mm
5390S-20C	20 mm	20 mm	S20	M30x2
5390S-30C	30 mm	S30		M42x2	41 mm, 50 mm
5390S-35C		35 mm	L35

Product Questions & Answers (2)

Question by: Lynn W on Feb 25, 2026, 2:08 PM

Will this tee fitting work with standard DIN tubing, or are there specific requirements I need to know about?

Answer by: Customer Support on Feb 26, 2026, 4:12 PM

This tee fitting is designed for use with standard DIN tube systems, specifically those with M36 X 2.0 connections. Both Side 1 and Side 2 are male (M36 X 2.0, S25), and Side 3 is female (M36 X 2.0, S25).

Question by: Ricky Y on May 6, 2025, 1:13 PM

trying to replace a tee on my DIN tube setup, are all three ports on this one M36 x 2.0 S25?

Answer by: Customer Support on May 7, 2025, 5:47 PM

All three sides are DIN tube connections with an M36 x 2.0 thread and size S25. Side 1 and Side 2 are male, and Side 3 is female, so it matches a run tee layout with two male ends and one female swivel end.
