Din-Fdin Swivel Run Tee Comple

Description & Features

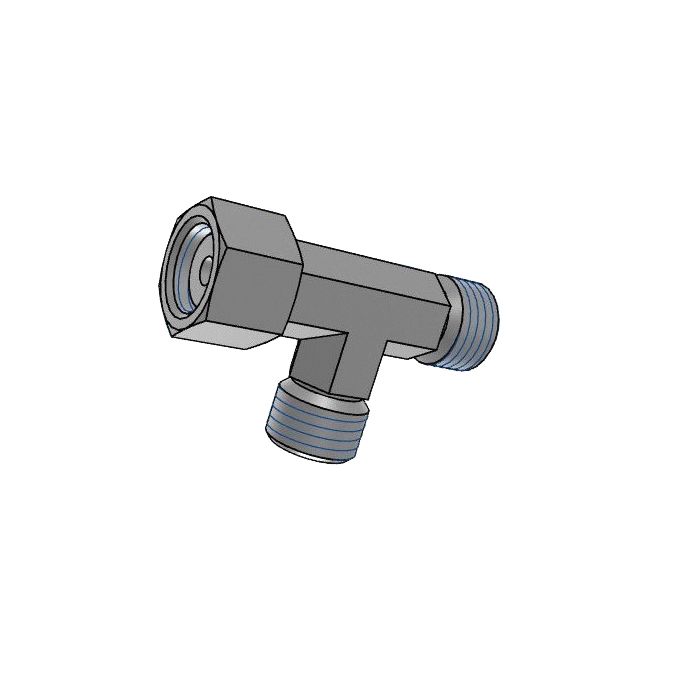

This steel Din-Fdin Swivel Run Tee Comple features DIN tube connections on all three sides. Two connections are male M42 x 2.0, size S30, while the third is a female M42 x 2.0, size S30 connection.

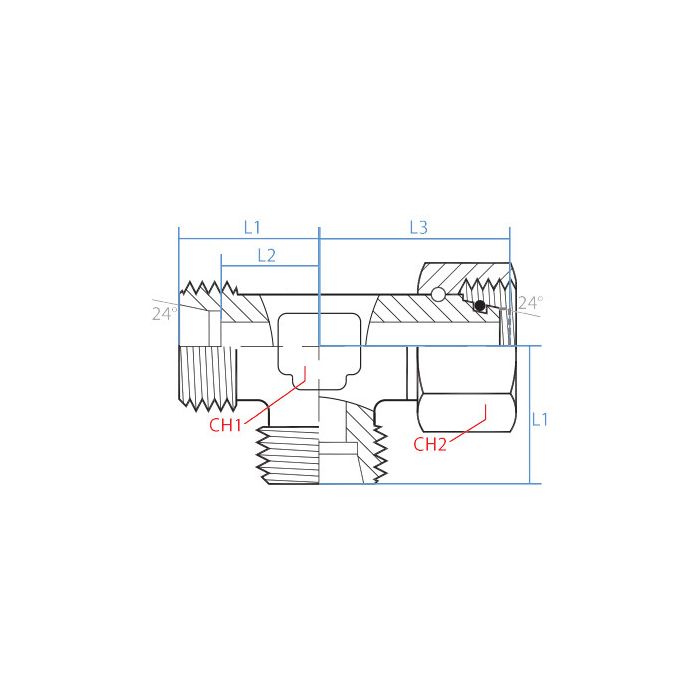

The Adaptall Ch1 width is 41mm, Ch2 width is 50mm, L1 length is 49mm, L2 length is 35.5mm, and L3 length is 55mm.

SKU: 5390S-30C

Supplier Part Number (MPN): 5390S-30C

Specifications

Brand adapt-all	Connection Size 1 30 mm	Connection Size 2 S30	Connection Type Female Metric, Female Metric Swivel	Connection Type 1 Female Metric DIN 24 deg Tube Swivel	Connection Type 2 Female Metric DIN 24 deg Tube	Connection Type 3 Female Metric DIN 24 deg Tube Swivel	Dimension Standards DIN 2353, ISO 8434-1	Dimensions 104 mm L	Finish Zinc-Plated	Fitting Type Tee	Hex Size 41 mm, 50 mm	Material Steel	Material Construction Carbon Steel	Series 5390S Series	Thread Size M42x2

Product Questions & Answers (2)

Question by: Wade P on Feb 16, 2026, 7:09 PM

All three ports on this thing are M42 x 2.0, S30, so if I'm running the same size DIN tube connections throughout my system, this'll tie right in without needing extra adapters?

Answer by: Customer Support on Feb 18, 2026, 8:11 AM

Correct on the thread spec. All three sides share the M42 x 2.0 callout at S30 sizing, so if your existing lines are already set up for that DIN tube standard, you won't need to step up or down anywhere in the connection. Two of the ports are male and the third is female, so just make sure your line ends match accordingly before you order.

Question by: Tommy R on Jan 18, 2026, 4:16 PM

So, this here tee fitting, it's all steel, right? Just want to double check before I order it.

Answer by: Customer Support on Jan 20, 2026, 6:50 AM

Correct, this DIN-Fdin Swivel Run Tee Comple is made entirely of steel.
