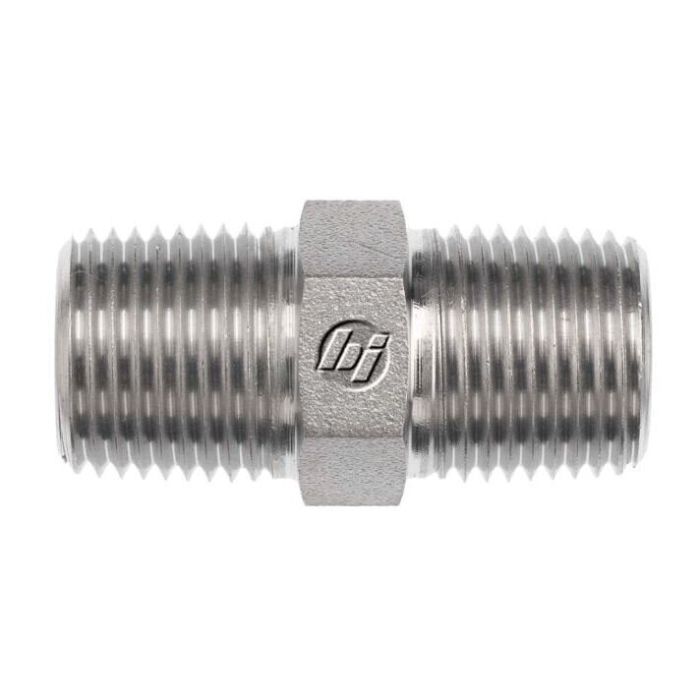

04MP-02MP HEX NIPPLE

Description & Features

Designed to meet rigorous industrial standards, the 04MP-02MP Hex Nipple by Brennan Industries Inc is a robust component crafted from straight steel. This product features a dual-thread design compliant with SAE J476 specifications, ensuring reliable male NPTF connections with Thread B1 at a size of 1/4-18 and Thread B2 at 1/8-27.

Engineered for high-pressure environments, it can withstand a maximum dynamic pressure of 6,000 Psi. Its precision engineering is further evident in the thread drills with diameters of 0.281 mm for B1 and 0.188 mm for B2, optimizing flow and connection stability.

The overall length of this hex nipple measures 1.260 mm, making it ideal for compact installations. Each aspect of its design underscores its suitability for demanding industrial settings, ensuring both durability and performance.

Supplier Part Number: 5404-04-02

California Residents: PROP-65 WARNING

Specifications

Brand BRENNAN	Connection Size 1 1/4 in	Connection Size 2 1/8 in	Connection Type MNPT	Connection Type 1 Male SAE 30 deg NPTF	Connection Type 2 Male SAE 30 deg NPTF	Dimension Standards SAE J476, SAE J514	Dimensions 1.26 in L	Finish Trivalent Zinc-Plated	Fitting Type Nipple	Hex Size 5/8 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Series 5404 Series	Thread 2 Drill Dimensions 0.188 in	Thread B1 Drill Dimensions 0.281 in	Thread Size 1/4-18 x 1/8-27

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
5404-02-02	1/8 in	1/8 in	1/8-27	7/16 in
5404-04-04	1/4 in	1/4 in	1/4-18	5/8 in
5404-06-02	3/8 in	1/8 in	3/8-18, 1/8-27	3/4 in
5404-06-04	3/8 in	1/4 in	3/8-18 x 1/4-18	3/4 in
5404-06-06	3/8 in	3/8 in	3/8-18	3/4 in
5404-08-04	1/2 in	1/4 in	1/2-14 x 1/4-18	7/8 in
5404-08-06	1/2 in	3/8 in	1/2-14 x 3/8-18	7/8 in
5404-08-08	1/2 in	1/2 in	1/2-14	7/8 in
5404-12-04	3/4 in	1/4 in	3/4-14, 1/4-18	1-1/8 in
5404-12-06	3/4 in	3/8 in	3/4-14 x 3/8-18	1-1/8 in
5404-12-08	3/4 in	1/2 in	3/4-14 x 1/2-14	1-1/8 in
5404-12-12	3/4 in	3/4 in	3/4-14	1-1/8 in
5404-16-04	1 in	1/4 in	1-11-1/2 x 1/4-18	1-3/8 in
5404-16-06	1 in	3/8 in	1-11-1/2 x 3/8-18	1-3/8 in
5404-16-08	1 in	1/2 in	1-11-1/2 x 1/2-14	1-3/8 in
5404-16-12	1 in	3/4 in	1-11-1/2 x 3/4-14	1-3/8 in
5404-16-16	1 in	1 in	1-11-1/2	1-3/8 in
5404-20-12	1-1/4 in	3/4 in	1-1/4-11-1/2 x 3/4-14	1-3/4 in
5404-20-16	1-1/4 in	1 in	1-1/4-11-1/2 x 1-11-1/2	1-3/4 in
5404-20-20	1-1/4 in	1-1/4 in	1-1/4-11-1/2	1-3/4 in
5404-24-12	1-1/2 in	3/4 in	1-1/2-11-1/2 x 3/4-14	2 in
5404-24-16	1-1/2 in	1 in	1-1/2-11-1/2 x 1-11-1/2	2 in
5404-24-20	1-1/2 in	1-1/4 in	1-1/4-11-1/2, 1-1/2-11-1/2	2 in
5404-24-24	1-1/2 in	1-1/2 in	1-1/2-11-1/2	2 in
5404-32-20	2 in	1-1/4 in	2-11-1/2 x 1-1/4-11-1/2	2-1/2 in
5404-32-24	2 in	1-1/2 in	2-11-1/2, 1-1/2-11-1/2	2-1/2 in
5404-32-32	2 in	2 in	2-11-1/2	2-1/2 in
5404-40-40	2-1/2 in	2-1/2 in	2-1/2-8	3 in
