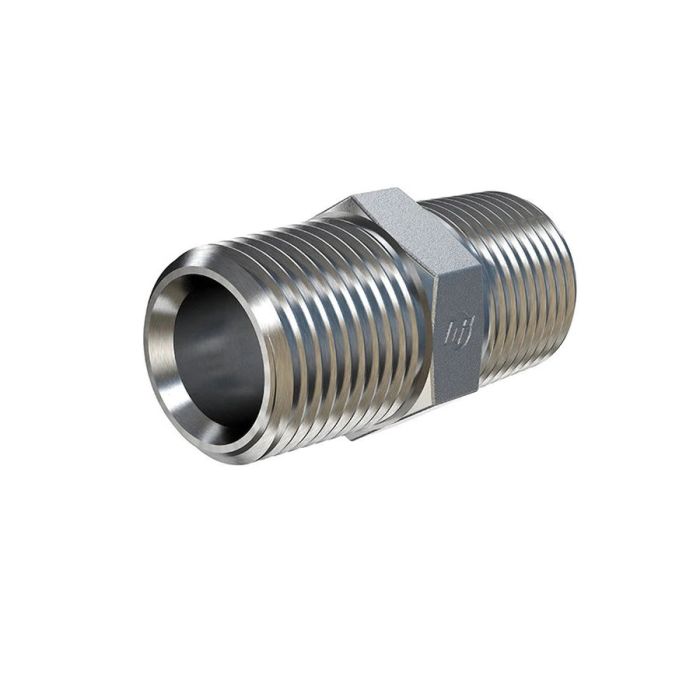

main product photo

04MP-04MP HEX NIPPLE STNLS

Ask A Question

Description & Features

The 04MP-04MP Hex Nipple Stnls by Brennan Industries Inc is fabricated from straight stainless steel ensuring robust performance in high-pressure systems. Featuring a maximum dynamic pressure of 6 000 psi it is designed to meet demanding industrial requirements.

This hex nipple has a total length of 1.450 mm and incorporates two male NPTF threads both conforming to SAE J476 standards with a thread size of 1/4-18 and a drill size of 0.281 mm.

Its precision engineering makes it an optimal choice for various industrial connectivity needs maintaining reliable and secure connections under high pressure.

MPN: 5404-04-04-SS

Supplier Part Number: 5404-04-04-SS

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Cubic Inch Space L x W x H Dimensions
0.566 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.45 in L
Fitting Type
Nipple
Hex Size
5/8 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Series
5404 Series
Thread 2 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.281 in
Thread Size
1/4-18

Product Questions & Answers (3)

Question by: Duane B on Oct 18, 2025, 4:42 PM
got a 1/4 inch NPTF fitting on both ends of a manifold block i need to bridge, this hex nipple gonna thread right in on both sides?
Answer by: Customer Support on Oct 20, 2025, 6:43 AM
Both ends carry 1/4-18 male NPTF threads, so as long as your manifold ports are female NPTF at that same size, you're good on both sides. The threads meet SAE J476 spec, which is the dry-seal standard, so you get a pressure-tight connection without relying on tape or sealant to do all the work.
Question by: Ross E on Dec 21, 2025, 6:56 AM
What kind of pressure can this hex nipple handle without failing?
Answer by: Customer Support on Dec 23, 2025, 6:16 AM
It's rated for a maximum dynamic pressure of 6,000 psi, so it should hold up well in high-pressure systems.
Question by: Lee J on Nov 16, 2025, 9:38 AM
trying to swap out an old nipple, is this one 1/4-18 on both ends or am i readin that wrong
Answer by: Customer Support on Nov 18, 2025, 6:29 AM
Both ends are male NPTF threads, 1/4-18, and they follow the SAE J476 thread specification.
