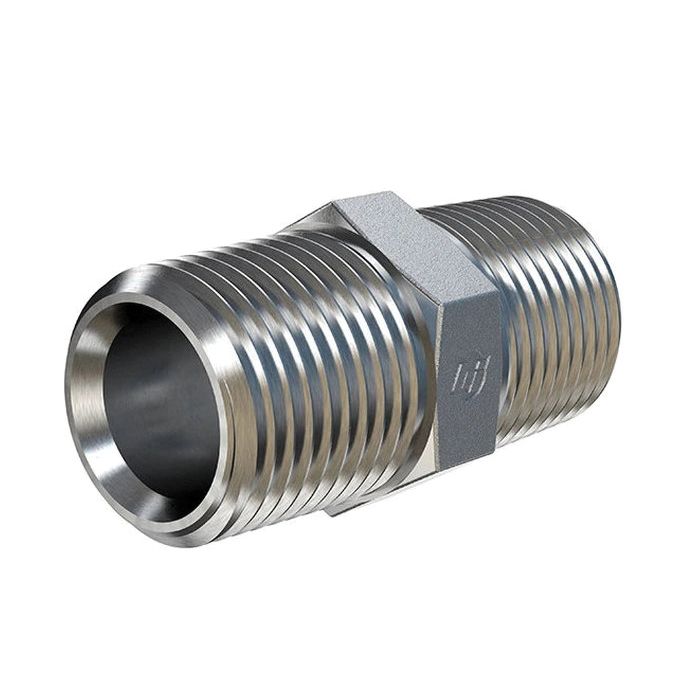

06MP-02MP HEX NIPPLE

Description & Features

Enhance your industrial systems with the robust 06MP-02MP Hex Nipple from Brennan Industries Inc. This top-tier component, made from straight steel, ensures reliable performance in demanding environments.

With a maximum dynamic pressure of 6,000 Psi, this hex nipple is engineered for high-pressure applications. It features a male NPTF thread on both ends, adhering to SAE J476 specifications, with Thread B1 measuring 3/8-18 and Thread B2 sized at 1/8-27.

The overall length of the 06MP-02MP Hex Nipple is 1.260 mm, providing a compact yet sturdy solution for various industrial setups. The series 5404 component aligns with rigorous industry standards, assuring compatibility and efficiency.

Supplier Part Number: 5404-06-02

California Residents: PROP-65 WARNING

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
1/8 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
1.26 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Nipple
Hex Size
3/4 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
5404 Series
Thread 2 Drill Dimensions
0.188 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
3/8-18, 1/8-27

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
02MP-02MP HEX NIPPLE

5404-02-02

1/8 in

1/8 in

1/8-27

7/16 in

04MP-02MP HEX NIPPLE

5404-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

5/8 in

04MP-04MP HEX NIPPLE

5404-04-04

1/4 in

1/4 in

1/4-18

5/8 in

06MP-04MP HEX NIPPLE

5404-06-04

3/8 in

1/4 in

3/8-18 x 1/4-18

3/4 in

06MP-06MP HEX NIPPLE

5404-06-06

3/8 in

3/8 in

3/8-18

3/4 in

08MP-04MP HEX NIPPLE

5404-08-04

1/2 in

1/4 in

1/2-14 x 1/4-18

7/8 in

08MP-06MP HEX NIPPLE

5404-08-06

1/2 in

3/8 in

1/2-14 x 3/8-18

7/8 in

08MP-08MP HEX NIPPLE

5404-08-08

1/2 in

1/2 in

1/2-14

7/8 in

12MP-04MP HEX NIPPLE

5404-12-04

3/4 in

1/4 in

3/4-14, 1/4-18

1-1/8 in

12MP-06MP HEX NIPPLE

5404-12-06

3/4 in

3/8 in

3/4-14 x 3/8-18

1-1/8 in

12MP-08MP HEX NIPPLE

5404-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

1-1/8 in

12MP-12MP HEX NIPPLE

5404-12-12

3/4 in

3/4 in

3/4-14

1-1/8 in

ADAPTER

5404-16-04

1 in

1/4 in

1-11-1/2 x 1/4-18

1-3/8 in

16MP-06MP HEX NIPPLE

5404-16-06

1 in

3/8 in

1-11-1/2 x 3/8-18

1-3/8 in

16MP-08MP HEX NIPPLE

5404-16-08

1 in

1/2 in

1-11-1/2 x 1/2-14

1-3/8 in

16MP-12MP HEX NIPPLE

5404-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

1-3/8 in

16MP-16MP HEX NIPPLE

5404-16-16

1 in

1 in

1-11-1/2

1-3/8 in

#20 MP X #12 MP HEX NIPPLE

5404-20-12

1-1/4 in

3/4 in

1-1/4-11-1/2 x 3/4-14

1-3/4 in

20MP-16MP HEX NIPPLE

5404-20-16

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

1-3/4 in

20MP-20MP HEX NIPPLE

5404-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-3/4 in

24MP-12MP HEX NIPPLE

5404-24-12

1-1/2 in

3/4 in

1-1/2-11-1/2 x 3/4-14

2 in

24MP-16MP HEX NIPPLE

5404-24-16

1-1/2 in

1 in

1-1/2-11-1/2 x 1-11-1/2

2 in

24MP-20MP HEX NIPPLE

5404-24-20

1-1/2 in

1-1/4 in

1-1/4-11-1/2, 1-1/2-11-1/2

2 in

24MP-24MP HEX NIPPLE

5404-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2 in

32MP-20MP HEX NIPPLE

5404-32-20

2 in

1-1/4 in

2-11-1/2 x 1-1/4-11-1/2

2-1/2 in

32MP-24MP HEX NIPPLE

5404-32-24

2 in

1-1/2 in

2-11-1/2, 1-1/2-11-1/2

2-1/2 in

32MP-32MP HEX NIPPLE

5404-32-32

2 in

2 in

2-11-1/2

2-1/2 in

MALE PIPE X MALE PIPE HEX NIPPLE

5404-40-40

2-1/2 in

2-1/2 in

2-1/2-8

3 in

Product Questions & Answers (3)

Question by: Bonnie S on Apr 1, 2026, 6:24 AM
got a reducer nipple with 3/8 NPT on one side and 1/8 NPT on the other, is that what this is?
Answer by: Customer Support on Apr 3, 2026, 8:03 AM
For stepping down between two pipe thread sizes, it fits that role. It has male NPTF threads on both ends, with B1 at 3/8-18 and B2 at 1/8-27, so it connects a 3/8-18 NPTF female port to a 1/8-27 NPTF female port.
Question by: Ronnie R on Sep 25, 2025, 6:20 PM
Is this nipple made of steel all the way through?
Answer by: Customer Support on Sep 27, 2025, 6:19 AM
Yes, this hex nipple is constructed from straight steel, which provides durability for industrial applications.
Question by: Dean H on Sep 14, 2025, 12:47 PM
Got a 3/8 port on one end and a 1/8 port on the other, will this nipple actually bridge those two sizes or do I need something else in between?
Answer by: Customer Support on Sep 15, 2025, 1:34 PM
That's exactly what it's built for. One end is 3/8-18 male NPTF and the other is 1/8-27 male NPTF, so it connects two different port sizes directly without any additional adapter in the middle. Both threads follow SAE J476 spec, which means they're dry-seal threads designed to hold pressure without relying on tape or sealant compound to do the work.
