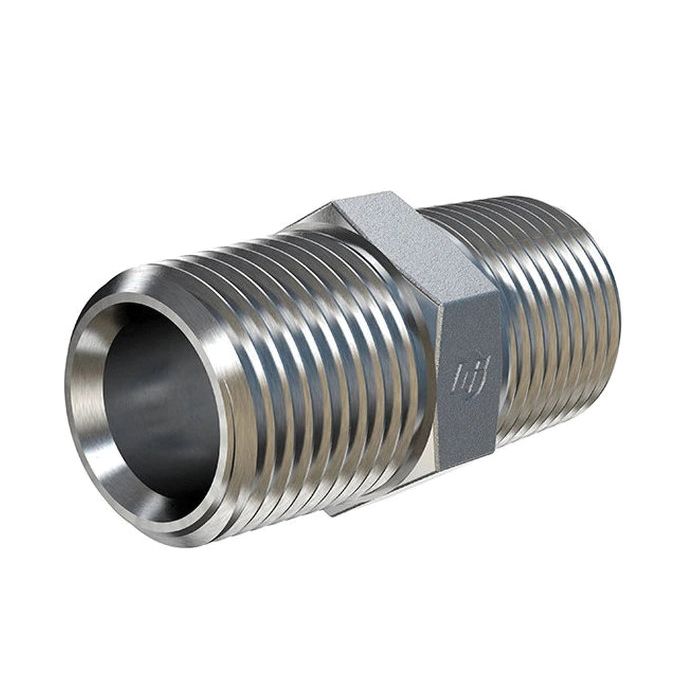

06MP-06MP HEX NIPPLE

Description & Features

Manufactured by Brennan Industries Inc, the 06MP-06MP Hex Nipple is designed for high-pressure environments, working efficiently up to 6,000 psi. The component is made from straight steel, ensuring durability under demanding conditions.

With an overall length of 1.450 mm and dual male NPTF threads, size 3/8-18, it complies with SAE J476 specifications. This hex nipple serves as a reliable connector in various industrial systems, facilitating seamless integration.

Both Thread B1 and Thread B2 have a drill size of 0.406 mm, enhancing its compatibility across a range of applications.

Supplier Part Number: 5404-06-06

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
1.45 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Nipple
Hex Size
3/4 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
5404 Series
Thread 2 Drill Dimensions
0.406 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
3/8-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
02MP-02MP HEX NIPPLE

5404-02-02

1/8 in

1/8 in

1/8-27

7/16 in

04MP-02MP HEX NIPPLE

5404-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

5/8 in

04MP-04MP HEX NIPPLE

5404-04-04

1/4 in

1/4 in

1/4-18

5/8 in

06MP-02MP HEX NIPPLE

5404-06-02

3/8 in

1/8 in

3/8-18, 1/8-27

3/4 in

06MP-04MP HEX NIPPLE

5404-06-04

3/8 in

1/4 in

3/8-18 x 1/4-18

3/4 in

08MP-04MP HEX NIPPLE

5404-08-04

1/2 in

1/4 in

1/2-14 x 1/4-18

7/8 in

08MP-06MP HEX NIPPLE

5404-08-06

1/2 in

3/8 in

1/2-14 x 3/8-18

7/8 in

08MP-08MP HEX NIPPLE

5404-08-08

1/2 in

1/2 in

1/2-14

7/8 in

12MP-04MP HEX NIPPLE

5404-12-04

3/4 in

1/4 in

3/4-14, 1/4-18

1-1/8 in

12MP-06MP HEX NIPPLE

5404-12-06

3/4 in

3/8 in

3/4-14 x 3/8-18

1-1/8 in

12MP-08MP HEX NIPPLE

5404-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

1-1/8 in

12MP-12MP HEX NIPPLE

5404-12-12

3/4 in

3/4 in

3/4-14

1-1/8 in

ADAPTER

5404-16-04

1 in

1/4 in

1-11-1/2 x 1/4-18

1-3/8 in

16MP-06MP HEX NIPPLE

5404-16-06

1 in

3/8 in

1-11-1/2 x 3/8-18

1-3/8 in

16MP-08MP HEX NIPPLE

5404-16-08

1 in

1/2 in

1-11-1/2 x 1/2-14

1-3/8 in

16MP-12MP HEX NIPPLE

5404-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

1-3/8 in

16MP-16MP HEX NIPPLE

5404-16-16

1 in

1 in

1-11-1/2

1-3/8 in

#20 MP X #12 MP HEX NIPPLE

5404-20-12

1-1/4 in

3/4 in

1-1/4-11-1/2 x 3/4-14

1-3/4 in

20MP-16MP HEX NIPPLE

5404-20-16

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

1-3/4 in

20MP-20MP HEX NIPPLE

5404-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-3/4 in

24MP-12MP HEX NIPPLE

5404-24-12

1-1/2 in

3/4 in

1-1/2-11-1/2 x 3/4-14

2 in

24MP-16MP HEX NIPPLE

5404-24-16

1-1/2 in

1 in

1-1/2-11-1/2 x 1-11-1/2

2 in

24MP-20MP HEX NIPPLE

5404-24-20

1-1/2 in

1-1/4 in

1-1/4-11-1/2, 1-1/2-11-1/2

2 in

24MP-24MP HEX NIPPLE

5404-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2 in

32MP-20MP HEX NIPPLE

5404-32-20

2 in

1-1/4 in

2-11-1/2 x 1-1/4-11-1/2

2-1/2 in

32MP-24MP HEX NIPPLE

5404-32-24

2 in

1-1/2 in

2-11-1/2, 1-1/2-11-1/2

2-1/2 in

32MP-32MP HEX NIPPLE

5404-32-32

2 in

2 in

2-11-1/2

2-1/2 in

MALE PIPE X MALE PIPE HEX NIPPLE

5404-40-40

2-1/2 in

2-1/2 in

2-1/2-8

3 in

Product Questions & Answers (1)

Question by: Brett T on Mar 1, 2026, 12:10 PM
got a couple 3/8-18 female ports i need to tie together. is this nipple 3/8 male nptf on both ends?
Answer by: Customer Support on Mar 2, 2026, 3:58 PM
Both ends are male NPTF threads in size 3/8-18, and each side follows SAE J476. It is a straight steel hex nipple meant to connect two matching female NPTF ports.
