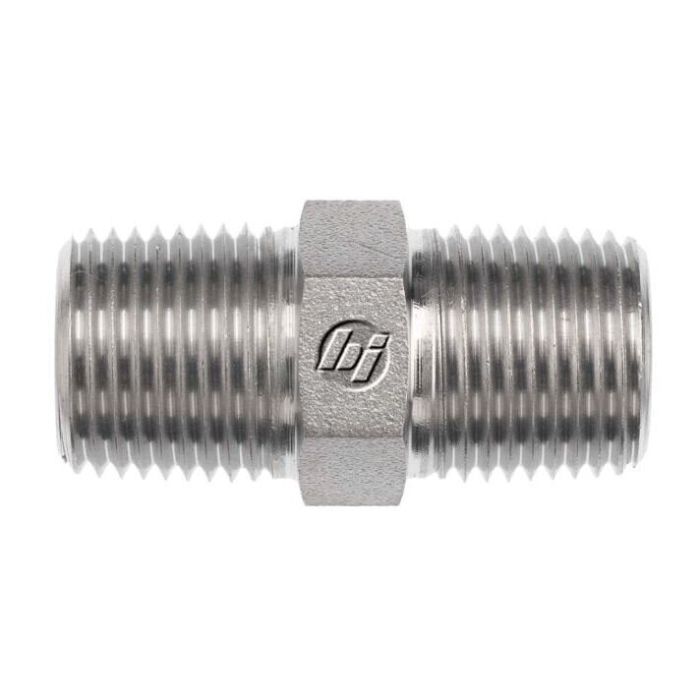

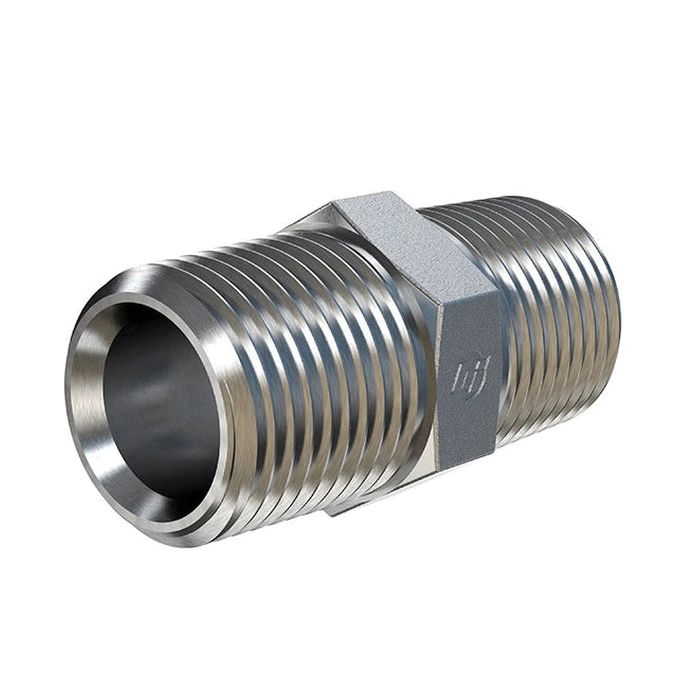

08MP-06MP HEX NIPPLE

Description & Features

Crafted by Brennan Industries Inc, this 08MP-06MP Hex Nipple is designed to meet rigorous industrial requirements. It features a maximum dynamic pressure capacity of 6,000 Psi and an overall length of 1.700 mm, ensuring durability and reliable performance.

Manufactured from straight steel, it aligns with the SAE J476 specification for male NPTF threads. This hex nipple incorporates a B1 thread size of 1/2-14, with a drill diameter of 0.531 mm, along with a B2 thread size of 3/8-18, with a corresponding drill diameter of 0.406 mm.

The component is part of series 5404 and ensures secure connections in various industrial settings. It is important for California residents to be aware of the PROP-65 warning associated with this product.

Supplier Part Number: 5404-08-06

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
1.7 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Nipple
Hex Size
7/8 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
5404 Series
Thread 2 Drill Dimensions
0.406 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14 x 3/8-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
02MP-02MP HEX NIPPLE

5404-02-02

1/8 in

1/8 in

1/8-27

7/16 in

04MP-02MP HEX NIPPLE

5404-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

5/8 in

04MP-04MP HEX NIPPLE

5404-04-04

1/4 in

1/4 in

1/4-18

5/8 in

06MP-02MP HEX NIPPLE

5404-06-02

3/8 in

1/8 in

3/8-18, 1/8-27

3/4 in

06MP-04MP HEX NIPPLE

5404-06-04

3/8 in

1/4 in

3/8-18 x 1/4-18

3/4 in

06MP-06MP HEX NIPPLE

5404-06-06

3/8 in

3/8 in

3/8-18

3/4 in

08MP-04MP HEX NIPPLE

5404-08-04

1/2 in

1/4 in

1/2-14 x 1/4-18

7/8 in

08MP-08MP HEX NIPPLE

5404-08-08

1/2 in

1/2 in

1/2-14

7/8 in

12MP-04MP HEX NIPPLE

5404-12-04

3/4 in

1/4 in

3/4-14, 1/4-18

1-1/8 in

12MP-06MP HEX NIPPLE

5404-12-06

3/4 in

3/8 in

3/4-14 x 3/8-18

1-1/8 in

12MP-08MP HEX NIPPLE

5404-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

1-1/8 in

12MP-12MP HEX NIPPLE

5404-12-12

3/4 in

3/4 in

3/4-14

1-1/8 in

ADAPTER

5404-16-04

1 in

1/4 in

1-11-1/2 x 1/4-18

1-3/8 in

16MP-06MP HEX NIPPLE

5404-16-06

1 in

3/8 in

1-11-1/2 x 3/8-18

1-3/8 in

16MP-08MP HEX NIPPLE

5404-16-08

1 in

1/2 in

1-11-1/2 x 1/2-14

1-3/8 in

16MP-12MP HEX NIPPLE

5404-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

1-3/8 in

16MP-16MP HEX NIPPLE

5404-16-16

1 in

1 in

1-11-1/2

1-3/8 in

#20 MP X #12 MP HEX NIPPLE

5404-20-12

1-1/4 in

3/4 in

1-1/4-11-1/2 x 3/4-14

1-3/4 in

20MP-16MP HEX NIPPLE

5404-20-16

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

1-3/4 in

20MP-20MP HEX NIPPLE

5404-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-3/4 in

24MP-12MP HEX NIPPLE

5404-24-12

1-1/2 in

3/4 in

1-1/2-11-1/2 x 3/4-14

2 in

24MP-16MP HEX NIPPLE

5404-24-16

1-1/2 in

1 in

1-1/2-11-1/2 x 1-11-1/2

2 in

24MP-20MP HEX NIPPLE

5404-24-20

1-1/2 in

1-1/4 in

1-1/4-11-1/2, 1-1/2-11-1/2

2 in

24MP-24MP HEX NIPPLE

5404-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2 in

32MP-20MP HEX NIPPLE

5404-32-20

2 in

1-1/4 in

2-11-1/2 x 1-1/4-11-1/2

2-1/2 in

32MP-24MP HEX NIPPLE

5404-32-24

2 in

1-1/2 in

2-11-1/2, 1-1/2-11-1/2

2-1/2 in

32MP-32MP HEX NIPPLE

5404-32-32

2 in

2 in

2-11-1/2

2-1/2 in

MALE PIPE X MALE PIPE HEX NIPPLE

5404-40-40

2-1/2 in

2-1/2 in

2-1/2-8

3 in

Product Questions & Answers (1)

Question by: Ross B on May 7, 2025, 8:36 AM
What’s the max pressure this hex nipple can handle?
Answer by: Customer Support on May 8, 2025, 9:45 PM
This hex nipple is rated for a maximum dynamic pressure of 6,000 psi.
