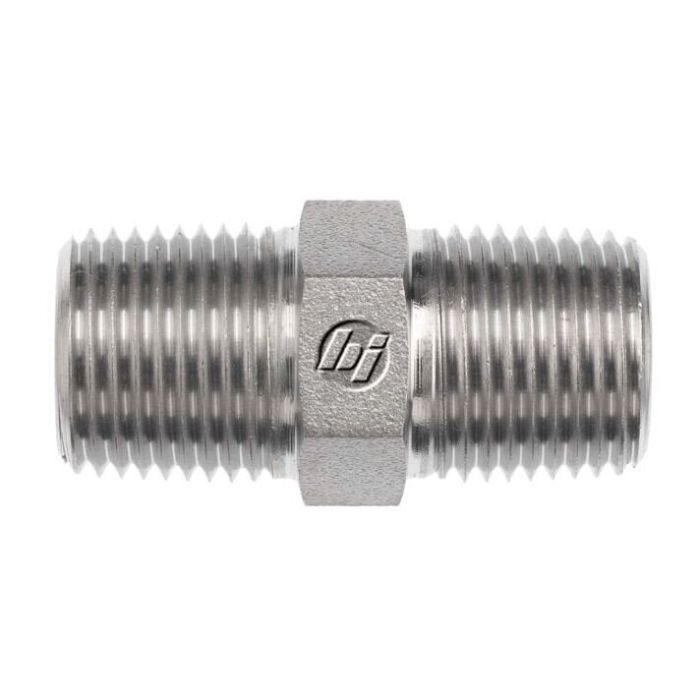

12MP-08MP HEX NIPPLE STNLS

Ask A Question

Description & Features

This straight stainless steel hex nipple features male NPTF threads on both ends, sized 3/4-14 and 1/2-14 according to SAE J476 specifications.

The 12MP-08MP HEX NIPPLE STNLS is part of the 5404 series and is suitable for applications with a maximum dynamic pressure of 5,500 PSI.

SKU: 5404-12-08-SS

Supplier Part Number (MPN): 5404-12-08-SS

Alternate Part Numbers: AHN-3/4X1/2

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Cubic Inch Space L x W x H Dimensions
2.481 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.96 in L
Fitting Type
Nipple
Hex Size
1-1/8 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Series
5404 Series
Thread 2 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.719 in
Thread Size
3/4-14 x 1/2-14

Product Questions & Answers (1)

Question by: Marvin E on Mar 18, 2026, 10:54 AM
Will this fitting work for hooking up a half-inch line to a three-quarter inch port?
Answer by: Customer Support on Mar 19, 2026, 9:39 PM
This hex nipple features a 1/2-14 male NPTF thread on one end and a 3/4-14 male NPTF thread on the other, following SAE J476 specifications. That should let you adapt between those sizes.
