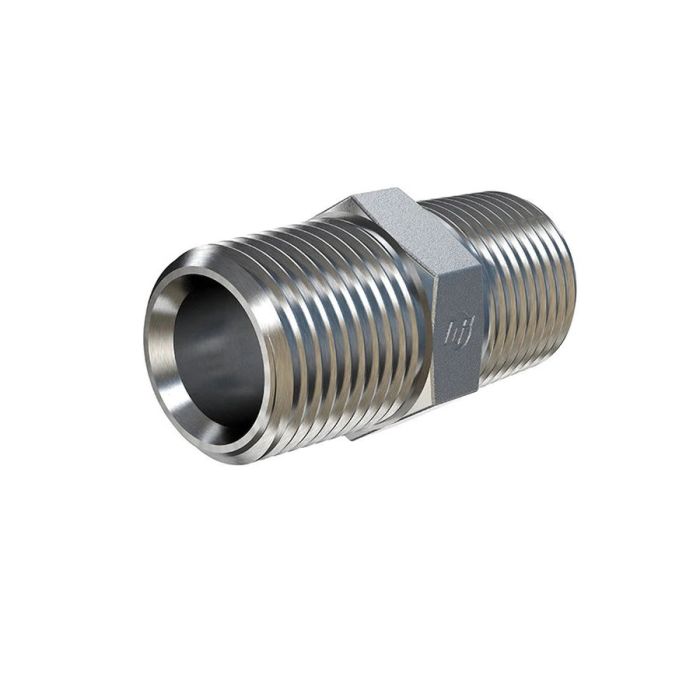

16MP-08MP HEX NIPPLE

Ask A Question

Description & Features

Manufactured from straight steel, this reducing hex nipple connects a 1-inch 11-1/2 NPTF male thread to a 1/2-inch 14 NPTF male thread, making it well suited for hydraulic lines and industrial fluid systems where a step-down connection between two male NPTF ports is required. Both thread ends conform to SAE J476, ensuring reliable dry-seal thread engagement.

The 16Mp-08Mp Hex Nipple is rated to 3,000 PSI dynamic pressure and has an overall length of 2.090 inches. The hex body provides secure wrench grip during installation and supports accurate torque application. Manufactured by Brennan Industries, this fitting carries a Proposition 65 warning for California residents.

SKU: 5404-16-08

Supplier Part Number (MPN): 5404-16-08

Alternate Part Numbers: A2083-16-8S

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1/2 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Cubic Inch Space L x W x H Dimensions
3.951 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.15 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Nipple
Hex Size
1-3/8 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
4500 psi
Series
5404 Series
Thread 2 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.938 in
Thread Size
1-11-1/2 x 1/2-14

Product Questions & Answers (1)

Question by: Curt C on Aug 3, 2025, 12:17 PM
Will this hex nipple work with standard hydraulic fittings?
Answer by: Customer Support on Aug 5, 2025, 6:12 AM
The 16MP-08MP hex nipple is designed to connect two male NPTF ports, specifically a 1-inch 11-1/2 NPTF to a 1/2-inch 14 NPTF. Both thread ends conform to SAE J476, which ensures a reliable dry-seal thread engagement with compatible fittings.
