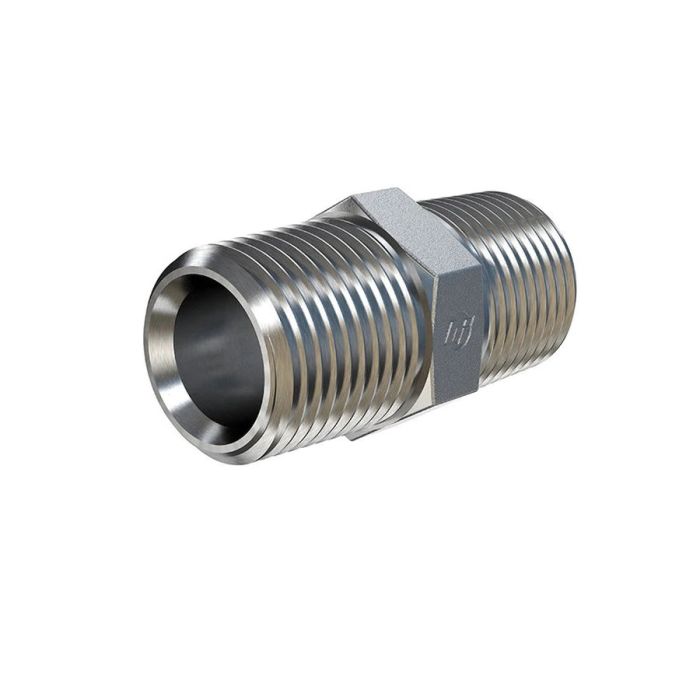

main product photo

16MP-16MP HEX NIPPLE STNLS

Ask A Question

Description & Features

This hex nipple is designed for versatile applications in various industrial settings. Constructed from high-quality straight stainless steel it ensures durability and resilience under demanding conditions. With a maximum dynamic pressure of 3 000 psi this component offers reliable performance in high-pressure environments.

The hex nipple features a 1-11-1/2 SAE J476 male NPTF thread on both ends ensuring secure and efficient connections. Its overall length is 2.34 mm optimizing space within your setup while maintaining robust functionality.

The 16MP-16MP HEX NIPPLE STNLS by Brennan Industries Inc embodies excellence in engineering ideal for industries requiring high-strength and precise fittings.

MPN: 5404-16-16-SS

Supplier Part Number: 5404-16-16-SS

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Cubic Inch Space L x W x H Dimensions
4.424 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.34 in L
Fitting Type
Nipple
Hex Size
1-3/8 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Series
5404 Series
Thread 2 Drill Dimensions
0.938 in
Thread B1 Drill Dimensions
0.938 in
Thread Size
1-11-1/2

Product Questions & Answers (2)

Question by: Vince R on Aug 1, 2025, 7:26 AM
trying to swap out an old hex nipple, are both ends on this one the same thread?
Answer by: Customer Support on Aug 3, 2025, 6:50 AM
Both ends are 1-11-1/2 male NPTF threads built to SAE J476, so it is a straight hex nipple with matching male NPTF on each side.
Question by: Billy H on May 26, 2025, 9:56 PM
Got a 1-inch NPTF port on a manifold block and need to tie two lines together with a nipple, this stainless one rated for that kind of pressure?
Answer by: Customer Support on May 28, 2025, 9:22 AM
At 3,000 psi maximum dynamic pressure, it holds up well in demanding hydraulic and fluid line applications. The threads on both ends are 1-11/2 male NPTF conforming to SAE J476, so if your manifold port matches that spec, you're looking at a solid, leak-resistant connection. Stainless steel construction keeps it from giving you grief in wet or corrosive environments too.
