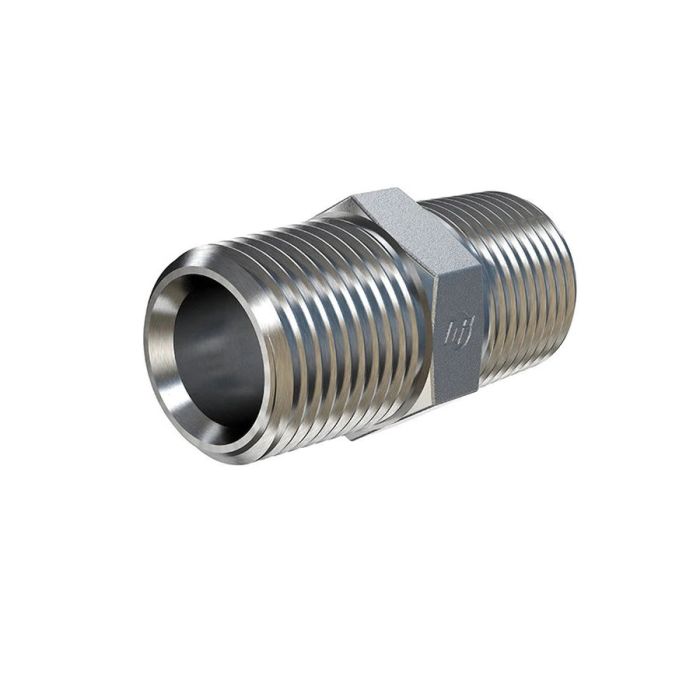

main product photo

#20 MP X #12 MP HEX NIPPLE

Ask A Question

Description & Features

This straight steel hex nipple features a #20 Male NPTF thread on one end and a #12 Male NPTF thread on the other. With threads manufactured to SAE J476 specifications, this fitting is suitable for various hydraulic applications requiring a secure and reliable connection.

The #20 MP X #12 MP HEX NIPPLE has a maximum dynamic pressure rating of 3,000 psi. It measures 2.260mm in overall length.

SKU: 5404-20-12

Supplier Part Number (MPN): 5404-20-12

Alternate Part Numbers: 5404-20-12S, A2083-20-12S

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
3/4 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Cubic Inch Space L x W x H Dimensions
6.921 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.26 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Nipple
Hex Size
1-3/4 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
3000 psi
Series
5404 Series
Thread 2 Drill Dimensions
0.719 in
Thread B1 Drill Dimensions
1.25 in
Thread Size
1-1/4-11-1/2 x 3/4-14

Product Questions & Answers (1)

Question by: Cody B on Jul 24, 2025, 9:03 AM
Will this nipple work with standard NPT fittings?
Answer by: Customer Support on Jul 25, 2025, 2:31 PM
Yes, threads are manufactured to SAE J476 specifications, which makes this fitting suitable for various hydraulic applications requiring a secure and reliable connection.
