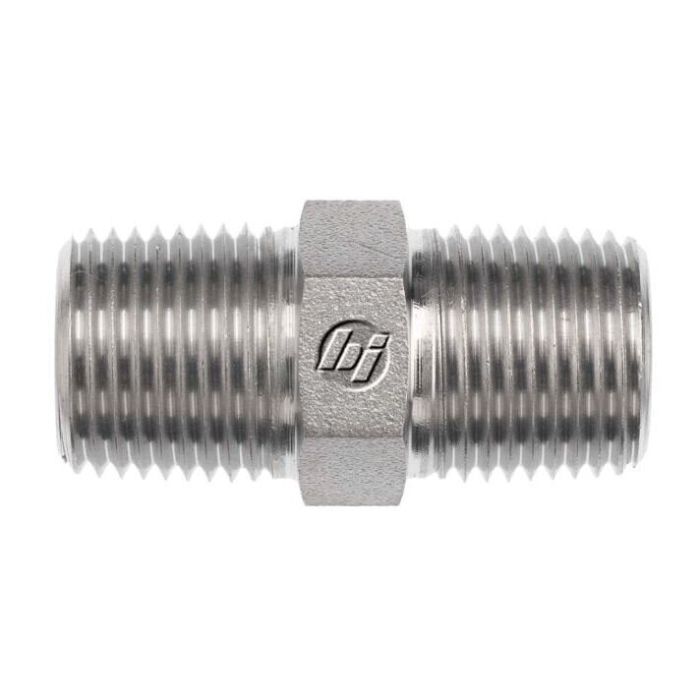

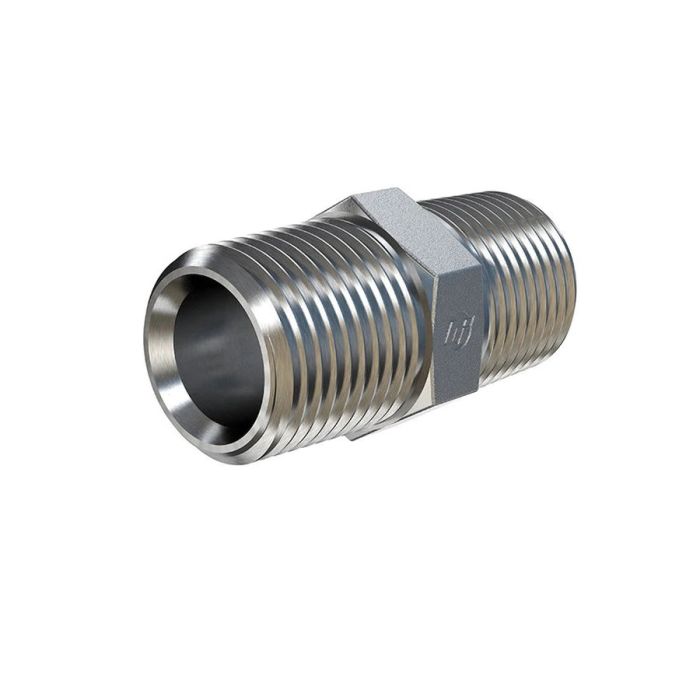

main product photo

20MP-16MP HEX NIPPLE

Ask A Question

Description & Features

This straight steel hex nipple features male NPTF threads on both ends, adhering to SAE J476 specifications. With a maximum dynamic pressure of 3,000 PSI, this 20MP-16MP HEX NIPPLE ensures reliable performance in demanding hydraulic applications.

The B1 thread size is 1-1/4-11-1/2 with a drill size of 1.250 mm, while the B2 thread size is 1-11-1/2 with a drill size of 0.938 mm.

SKU: 5404-20-16

Supplier Part Number (MPN): 5404-20-16

Alternate Part Numbers: A2083-20-16S, BR-5404-20-16

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Cubic Inch Space L x W x H Dimensions
7.503 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.45 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Nipple
Hex Size
1-3/4 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
3000 psi
Series
5404 Series
Thread 2 Drill Dimensions
0.938 in
Thread B1 Drill Dimensions
1.25 in
Thread Size
1-1/4-11-1/2 x 1-11-1/2

Product Questions & Answers (1)

Question by: Connie W on Oct 3, 2025, 6:05 AM
Will this hex nipple hold up in a hydraulic system that sees about 2800 PSI regularly?
Answer by: Customer Support on Oct 4, 2025, 8:39 AM
With a maximum dynamic pressure of 3,000 PSI, this hex nipple should be suitable for hydraulic systems operating at 2800 PSI.
