24MP-12MP HEX NIPPLE

Description & Features

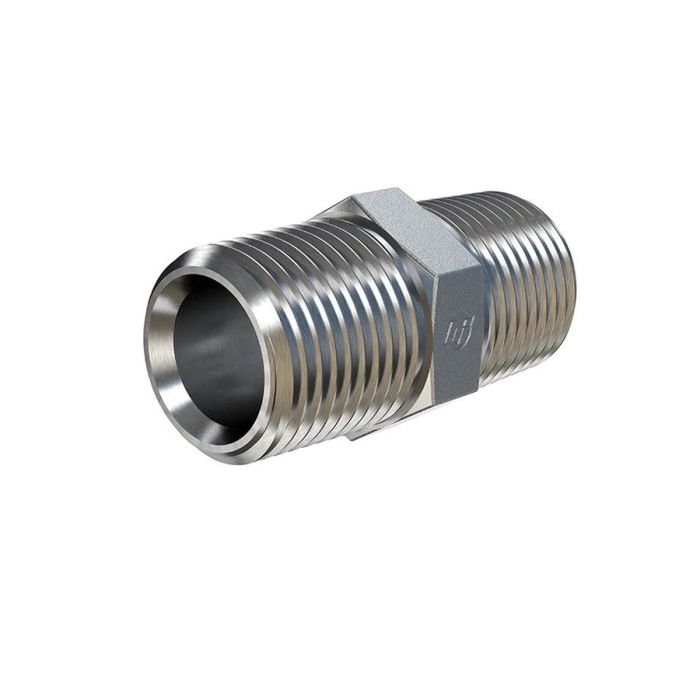

This straight steel hex nipple, part number 24MP-12MP, is manufactured to SAE J476 standards. The hex nipple has a maximum dynamic pressure of 3,000 PSI.

Thread B1 is a 1-1/2-11-1/2 male NPTF, with a 1.500 mm drill size. Thread B2 is a 3/4-14 male NPTF, with a 0.719 mm drill size.

SKU: 5404-24-12

Supplier Part Number (MPN): 5404-24-12

Alternate Part Numbers: A2083-24-12S, BR-5404-24-12

Specifications

Brand
BRENNAN
Connection Size 1
1-1/2 in
Connection Size 2
3/4 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Cubic Inch Space L x W x H Dimensions
9.52 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.38 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Nipple
Hex Size
2 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
3000 psi
Series
5404 Series
Thread 2 Drill Dimensions
0.719 in
Thread B1 Drill Dimensions
1.5 in
Thread Size
1-1/2-11-1/2 x 3/4-14

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
02MP-02MP HEX NIPPLE

5404-02-02

1/8 in

1/8 in

1/8-27

7/16 in

04MP-02MP HEX NIPPLE

5404-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

5/8 in

04MP-04MP HEX NIPPLE

5404-04-04

1/4 in

1/4 in

1/4-18

5/8 in

06MP-02MP HEX NIPPLE

5404-06-02

3/8 in

1/8 in

3/8-18, 1/8-27

3/4 in

06MP-04MP HEX NIPPLE

5404-06-04

3/8 in

1/4 in

3/8-18 x 1/4-18

3/4 in

06MP-06MP HEX NIPPLE

5404-06-06

3/8 in

3/8 in

3/8-18

3/4 in

08MP-04MP HEX NIPPLE

5404-08-04

1/2 in

1/4 in

1/2-14 x 1/4-18

7/8 in

08MP-06MP HEX NIPPLE

5404-08-06

1/2 in

3/8 in

1/2-14 x 3/8-18

7/8 in

08MP-08MP HEX NIPPLE

5404-08-08

1/2 in

1/2 in

1/2-14

7/8 in

12MP-04MP HEX NIPPLE

5404-12-04

3/4 in

1/4 in

3/4-14, 1/4-18

1-1/8 in

12MP-06MP HEX NIPPLE

5404-12-06

3/4 in

3/8 in

3/4-14 x 3/8-18

1-1/8 in

12MP-08MP HEX NIPPLE

5404-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

1-1/8 in

12MP-12MP HEX NIPPLE

5404-12-12

3/4 in

3/4 in

3/4-14

1-1/8 in

ADAPTER

5404-16-04

1 in

1/4 in

1-11-1/2 x 1/4-18

1-3/8 in

16MP-06MP HEX NIPPLE

5404-16-06

1 in

3/8 in

1-11-1/2 x 3/8-18

1-3/8 in

16MP-08MP HEX NIPPLE

5404-16-08

1 in

1/2 in

1-11-1/2 x 1/2-14

1-3/8 in

16MP-12MP HEX NIPPLE

5404-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

1-3/8 in

16MP-16MP HEX NIPPLE

5404-16-16

1 in

1 in

1-11-1/2

1-3/8 in

#20 MP X #12 MP HEX NIPPLE

5404-20-12

1-1/4 in

3/4 in

1-1/4-11-1/2 x 3/4-14

1-3/4 in

20MP-16MP HEX NIPPLE

5404-20-16

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

1-3/4 in

20MP-20MP HEX NIPPLE

5404-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-3/4 in

24MP-16MP HEX NIPPLE

5404-24-16

1-1/2 in

1 in

1-1/2-11-1/2 x 1-11-1/2

2 in

24MP-20MP HEX NIPPLE

5404-24-20

1-1/2 in

1-1/4 in

1-1/4-11-1/2, 1-1/2-11-1/2

2 in

24MP-24MP HEX NIPPLE

5404-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2 in

32MP-20MP HEX NIPPLE

5404-32-20

2 in

1-1/4 in

2-11-1/2 x 1-1/4-11-1/2

2-1/2 in

32MP-24MP HEX NIPPLE

5404-32-24

2 in

1-1/2 in

2-11-1/2, 1-1/2-11-1/2

2-1/2 in

32MP-32MP HEX NIPPLE

5404-32-32

2 in

2 in

2-11-1/2

2-1/2 in

MALE PIPE X MALE PIPE HEX NIPPLE

5404-40-40

2-1/2 in

2-1/2 in

2-1/2-8

3 in

Product Questions & Answers (1)

Question by: Phil M on Nov 10, 2025, 7:35 AM
Is this compatible with standard NPT fittings?
Answer by: Customer Support on Nov 11, 2025, 4:36 PM
Yes, this hex nipple uses male NPTF threads on both ends, manufactured to SAE J476 standards.
