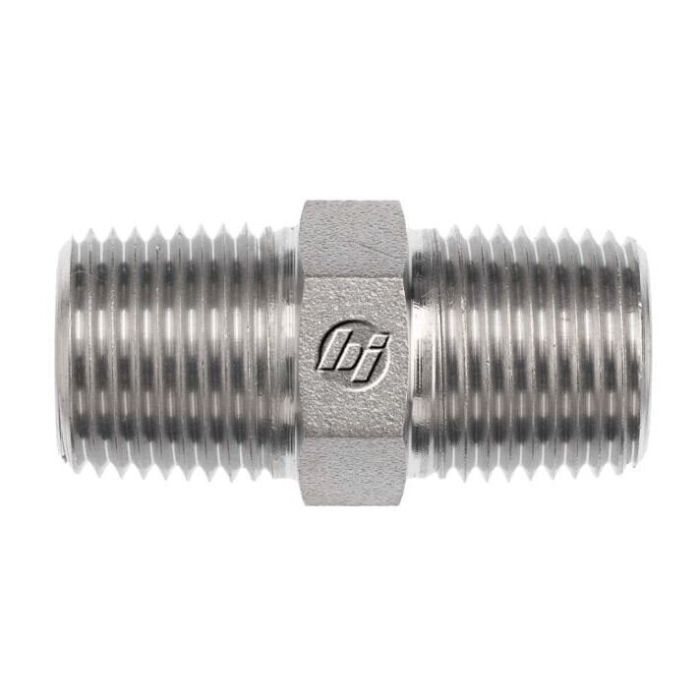

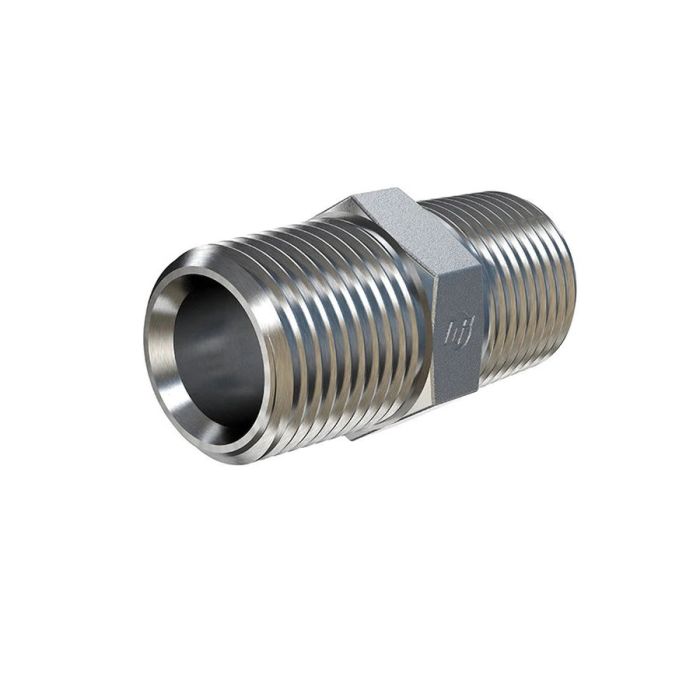

main product photo

24MP-16MP HEX NIPPLE

Ask A Question

Description & Features

Designed for high-performance industrial applications the Brennan Industries Inc hex nipple is a straight steel fitting offering robust durability and reliability.

Constructed to withstand a maximum dynamic pressure of 3 000 psi it ensures optimal performance in demanding environments. This hex nipple features male NPTF threads conforming to the SAE J476 specification with thread sizes of 1-1/2-11-1/2 for B1 and 1-11-1/2 for B2 providing a secure and leak-proof fit.

The overall length of the nipple is 2.550 mm making it a compact yet essential component in various systems. This hex nipple measures precisely with a thread B1 drill of 1.500 mm and a thread B2 drill of 0.938 mm ensuring compatibility and precision in industrial settings.

Supplier Part Number: 5404-24-16

Please note the Prop-65 warning for California residents.

Specifications

Brand
BRENNAN
Connection Size 1
1-1/2 in
Connection Size 2
1 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Cubic Inch Space L x W x H Dimensions
10.2 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.55 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Nipple
Hex Size
2 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
3000 psi
Series
5404 Series
Thread 2 Drill Dimensions
0.938 in
Thread B1 Drill Dimensions
1.5 in
Thread Size
1-1/2-11-1/2 x 1-11-1/2

Product Questions & Answers (3)

Question by: Dale T on May 19, 2025, 6:53 AM
What size threads does this fittin' use?
Answer by: Customer Support on May 20, 2025, 5:58 PM
This hex nipple uses male NPTF threads, conforming to SAE J476, with sizes of 1-1/2-11-1/2 for B1 and 1-11-1/2 for B2.
Question by: Duane A on Jun 15, 2025, 6:27 PM
both ends on this nipple got male NPTF threads, or is one of 'em a different type?
Answer by: Customer Support on Jun 17, 2025, 8:00 AM
Both ends are male NPTF, conforming to SAE J476. One side is 1-1/2-11-1/2 and the other is 1-11-1/2, so you're working with a reducing nipple that steps down between those two thread sizes. Good choice when you need to connect two female ports of different sizes without adding extra adapters in the line.
Question by: Norm T on Dec 2, 2025, 11:09 AM
trying to replace a hex nipple i pulled off, is this one NPTF on both ends and what sizes are we talking?
Answer by: Customer Support on Dec 4, 2025, 6:28 AM
Both ends are male NPTF threads built to SAE J476. The B1 end is 1-1/2-11-1/2 and the B2 end is 1-11-1/2, so it is a straight steel hex nipple meant to join two different NPTF female ports.
