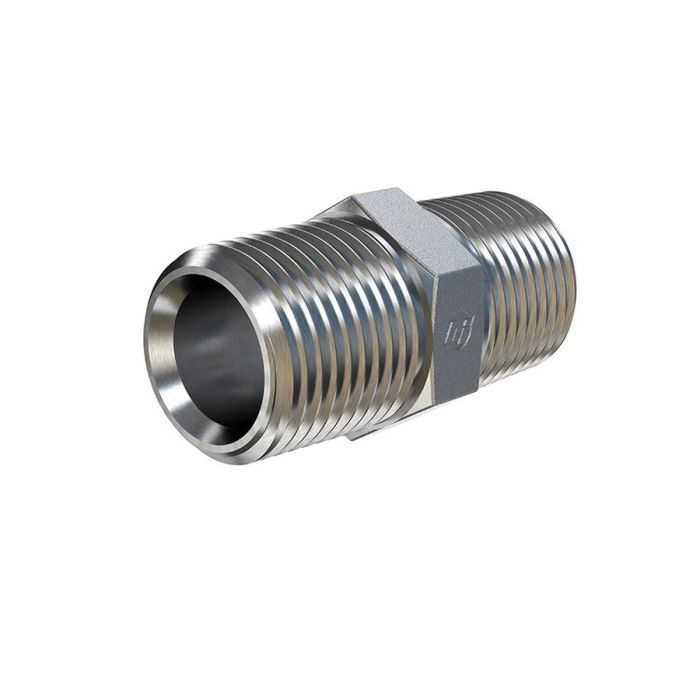

main product photo

24MP-24MP HEX NIPPLE

Ask A Question

Description & Features

This hex nipple by Brennan Industries Inc is crafted from high-quality straight steel ensuring durability and reliable performance under demanding conditions.

The 24MP-24MP Hex Nipple features male NPTF threads on both ends adhering to SAE J476 specifications. With a thread size of 1-1/2-11-1/2 inches it enables secure connections in various industrial applications. The hexagonal shape provides an easy grip for installation and removal.

Designed for a maximum dynamic pressure of 3 000 psi this component meets rigorous standards for safety and efficiency. With an overall length of 2.610 mm it is suitable for systems requiring precise dimensions and high-pressure tolerance.

Compliance with California Prop-65 ensures it is safe for use in regulated environments.

MPN: 5404-24-24

Supplier Part Number: 5404-24-24

Specifications

Brand
BRENNAN
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Cubic Inch Space L x W x H Dimensions
10.44 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.61 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Nipple
Hex Size
2 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
3000 psi
Series
5404 Series
Thread 2 Drill Dimensions
1.5 in
Thread B1 Drill Dimensions
1.5 in
Thread Size
1-1/2-11-1/2

Product Questions & Answers (2)

Question by: Harold M on Feb 17, 2026, 2:22 PM
trying to hook two female ports together, is this nipple male pipe thread on both ends?
Answer by: Customer Support on Feb 19, 2026, 6:21 AM
Both ends are male NPTF threads, sized 1-1/2-11-1/2, and they follow the SAE J476 thread specification.
Question by: Judy K on Feb 19, 2026, 3:21 PM
got a 1-1/2 inch NPTF fitting on both ends of a pipe section i need to bridge, this hex nipple gonna work for that?
Answer by: Customer Support on Feb 21, 2026, 9:44 AM
Male NPTF threads on both ends, sized at 1-1/2-11-1/2, so yeah, that's exactly the kind of application it's built for. Both sides conform to SAE J476, which means you're getting a dry-seal thread connection that holds well under pressure. Rated to 3,000 psi dynamic, so most standard hydraulic line work at that pipe size won't push it past its limits.
