BRENNAN 1/4 NPTX 4INCH LONG

Description & Features

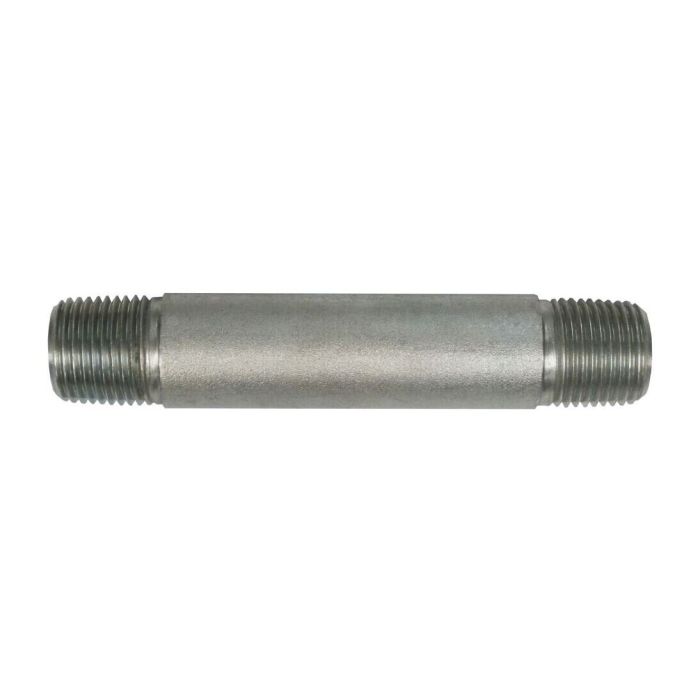

This straight steel pipe nipple from Brennan Industries features male NPTF threads on both ends, each with a 1/4-18 thread size and manufactured to SAE J476 specifications.

The BRENNAN 1/4 NPTX 4INCH LONG is part of the 5404-N series and has an overall length of 4 inches.

SKU: 5404-N-04X4.000

Supplier Part Number (MPN): 5404-N-04X4.000

Alternate Part Numbers: 5400-N-04-4.0, A2084-4S-4

Specifications

Brand BRENNAN	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type MNPT	Connection Type 1 Male SAE 30 deg NPTF	Connection Type 2 Male SAE 30 deg NPTF	Dimension Standards SAE J476, SAE J514	Dimensions 4 in L	Finish Trivalent Zinc-Plated	Fitting Type Nipple	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Series 5404-N Series	Thread 2 Drill Dimensions 0.281 in	Thread B1 Drill Dimensions 0.281 in	Thread Size 1/4-18

Product Questions & Answers (1)

Question by: Ray B on Mar 13, 2026, 6:59 AM

What’s the total length on this nipple? Just need to make sure it fits in the space I got.

Answer by: Customer Support on Mar 14, 2026, 9:45 AM

Overall length on this Brennan pipe nipple is 4 inches, according to the specs.
