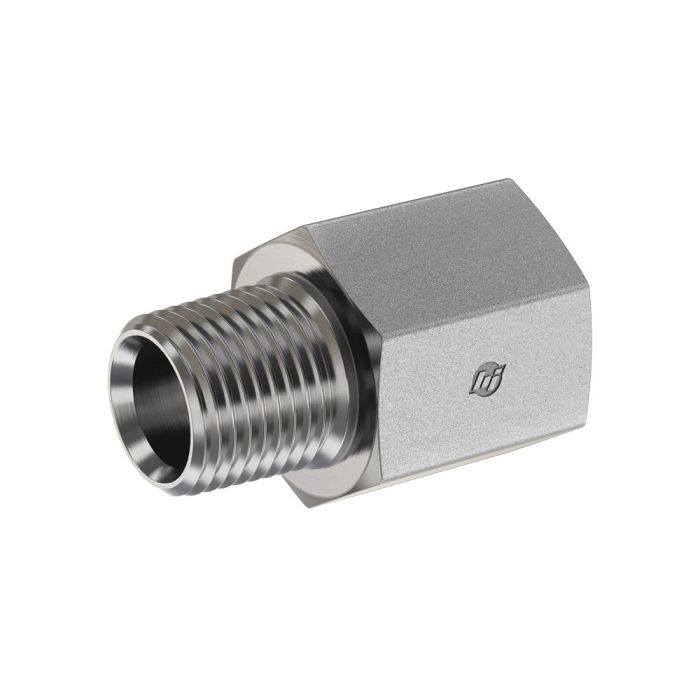

main product photo

02MP-02FP STRAIGHT EXPANDER

Ask A Question

Description & Features

The product name is designed for high-pressure applications with a maximum dynamic pressure rating of 6,000 Psi. This expander is crafted from straight steel, ensuring durability and reliability in demanding environments.

It features a male NPTF thread type, specified by SAE J476, with a size of 1/8-27. Additionally, it has a female NPTF thread type, also conforming to SAE J476 standards, with a similar size of 1/8-27.

The overall length of the expander is 1.040 mm, making it suitable for precise installations. The BRENNAN Industries Inc brand guarantees a product that meets rigorous industry standards.

Both thread B1 and thread B2 drills measure 0.188 mm, providing accurate and secure connections. It offers compatibility and flexibility within the 5405 series.

MPN: 5405-02-02

Supplier Part Number: 5405-02-02

Specifications

Brand
BRENNAN
Connection Size 1
1/8 in
Connection Size 2
1/8 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476
Dimensions
1.04 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Expander
Hex Size
5/8 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
5405 Series
Thread 2 Drill Dimensions
0.188 in
Thread B1 Drill Dimensions
0.188 in
Thread Size
1/8-27

Product Questions & Answers (2)

Question by: Hugh H on May 21, 2025, 1:00 PM
I need somethin' to expand a 1/8" NPTF male to a 1/8" NPTF female. Will this do the trick?
Answer by: Customer Support on May 22, 2025, 9:18 PM
This straight steel expander will indeed let you connect a 1/8" male NPTF to a 1/8" female NPTF, as it's designed with those exact thread sizes and types on each end.
Question by: Lee O on Apr 25, 2025, 8:37 PM
what's the max pressure this fitting can handle before it starts giving trouble?
Answer by: Customer Support on Apr 27, 2025, 6:23 PM
Rated at 6,000 PSI dynamic pressure, so it holds up well in high-demand hydraulic lines. That rating covers the working pressure you'd see in most industrial and mobile hydraulic setups running NPTF connections at this thread size.
