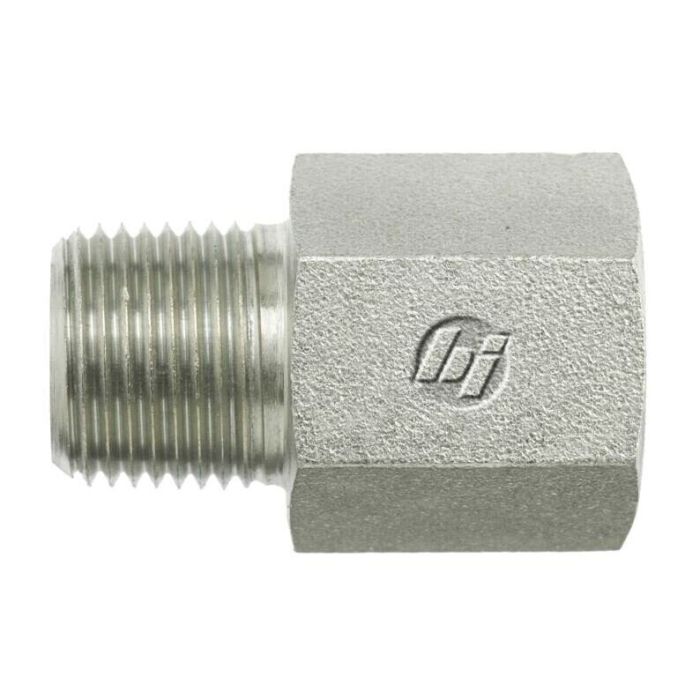

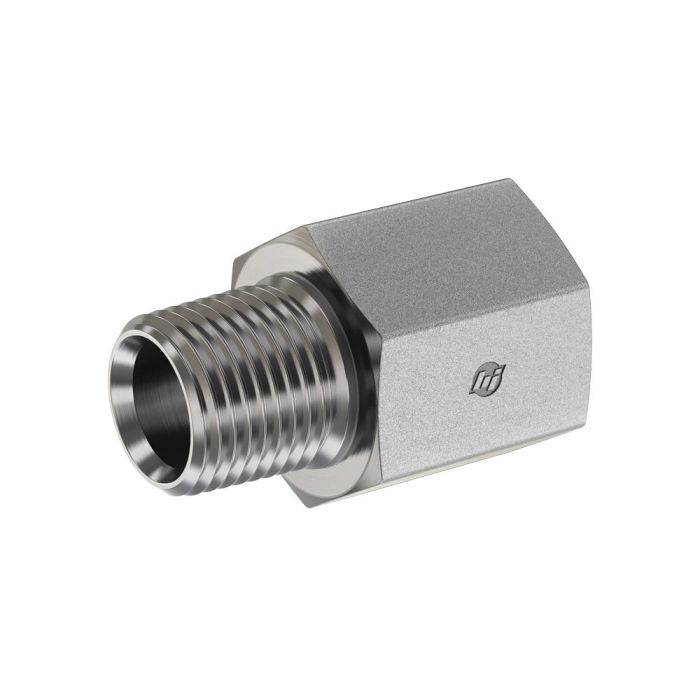

04MP-04FP STRAIGHT EXPANDER STNLS

Ask A Question

Description & Features

Constructed from stainless steel, the 04MP-04FP Straight Expander Stnls is a straight-configuration pipe thread adapter designed for hydraulic and industrial fluid systems requiring corrosion-resistant connections. Both ends feature 1/4-18 NPTF threads conforming to SAE J476, a male NPTF on one end and a female NPTF on the other, making it suitable for inline connections where thread type or flow direction needs to be maintained in a straight run.

Rated to 6,000 PSI maximum dynamic pressure, this fitting handles demanding hydraulic service conditions. The stainless steel construction offers durability in environments where moisture, chemicals, or temperature cycling would degrade carbon steel alternatives. Part of Brennan Industries' Series 5405, it carries a California Prop 65 designation as noted by the manufacturer.

SKU: 5405-04-04-SS

Supplier Part Number (MPN): 5405-04-04-SS

Alternate Part Numbers: ARA-1/4X1/4

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
0.782 cu-in
Dimension Standards
SAE J476
Dimensions
1.39 in L
Fitting Type
Expander
Hex Size
3/4 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
6000 psi
Series
5405 Series
Thread 2 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.281 in
Thread Size
1/4-18

Product Questions & Answers (1)

Question by: Merle H on Apr 21, 2025, 8:16 PM
So, this is stainless steel, right? I need something that won't rust up on me quick.
Answer by: Customer Support on Apr 23, 2025, 2:17 PM
That's correct. The 04MP-04FP Straight Expander is constructed from stainless steel, making it a good choice for hydraulic systems exposed to moisture or harsh chemicals where standard carbon steel would corrode.
