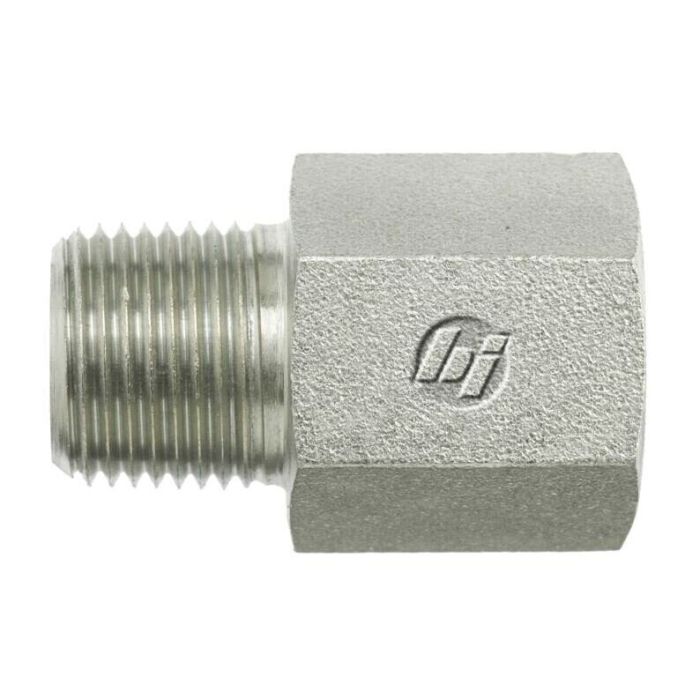

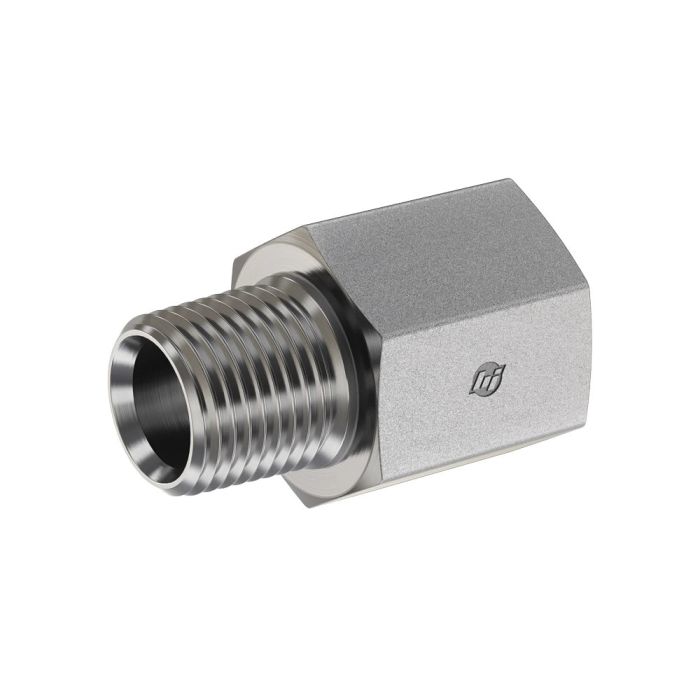

main product photo

06MP-08FP Straight Expander Stnls

Ask A Question

Description & Features

Designed for robust industrial applications, the 06MP-08FP Straight Expander Stnls connects differing thread sizes with precision. Constructed from straight stainless steel, this expander offers excellent durability and corrosion resistance, making it ideal for demanding settings. Featuring a male NPTF thread of 3/8-18 and a female NPTF thread of 1/2-14, it ensures secure and reliable connections. The part adheres to SAE J476 specifications, guaranteeing compatibility and performance in various hydraulic systems.

With a maximum dynamic pressure rating of 5,000 psi, this expander is suitable for high-pressure environments. Its compact design, with an overall length of 1.680 mm and occupying 2.126 cubic inches, allows for easy integration into existing setups. The expander is a part of the Brennan Series 5405, a trusted line known for quality and reliability. Perfect for industrial applications that demand consistent performance and durability.

SKU: 5405-06-08-SS

Supplier Part Number (MPN): 5405-06-08-SS

Alternate Part Numbers: ARA-1/2X3/8

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
2.126 cu-in
Dimension Standards
SAE J476
Dimensions
1.68 in L
Fitting Type
Expander
Hex Size
1-1/8 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
6000 psi
Series
5405 Series
Thread 2 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
1/2-14 x 3/8-18

Product Questions & Answers (1)

Question by: Ralph W on Apr 23, 2025, 9:35 PM
Reckon this expander fitting can handle gettin' banged around a bit in the shop, or is it more for a controlled environment?
Answer by: Customer Support on Apr 25, 2025, 6:26 AM
This expander's made from stainless steel, so it's gonna hold up pretty well against corrosion and general wear and tear in an industrial setting.
