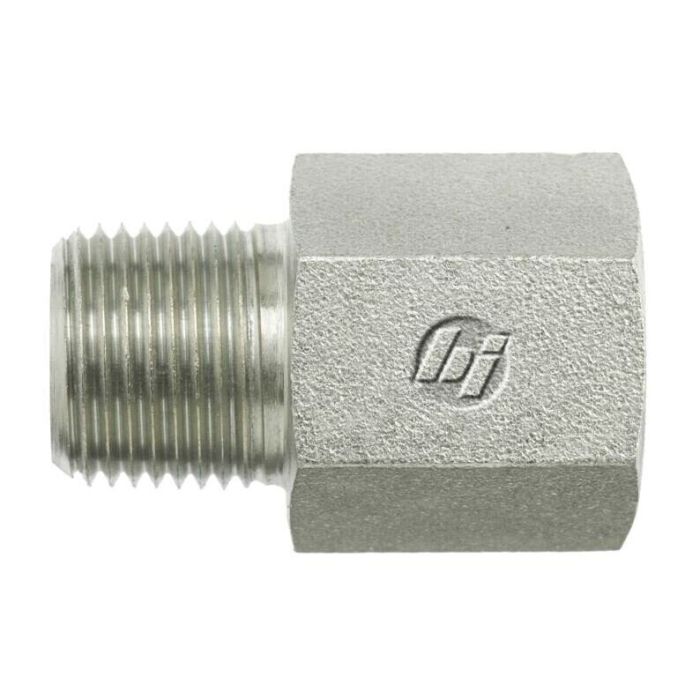

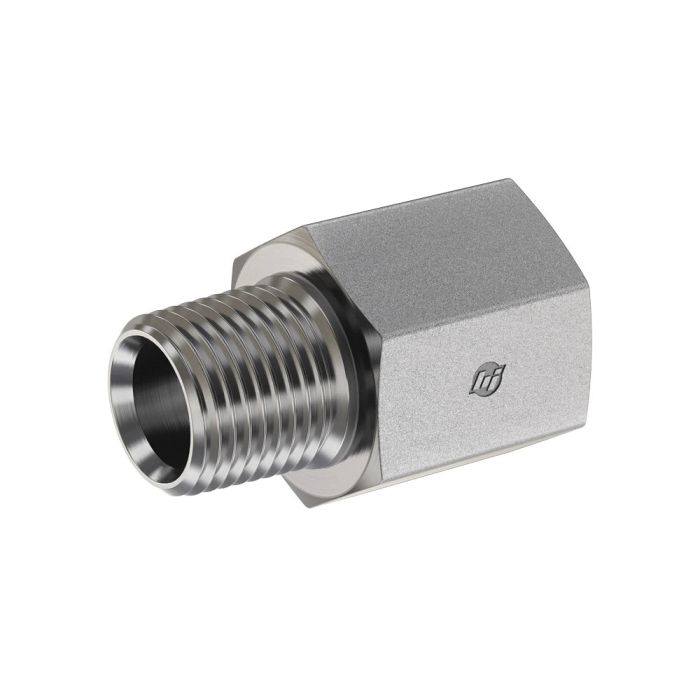

06MP-08FP STRAIGHT EXPANDER

Description & Features

The 06MP-08FP Straight Expander ensures efficient and reliable connections. Designed by Brennan Industries Inc, it is part of the 5405 series.

This straight steel adapter is built to withstand a maximum dynamic pressure of 5,000 Psi and features male NPTF and female NPTF threading, adhering to the SAE J476 specifications.

The male NPTF thread B1 has a size of 3/8-18 with a drill diameter of 0.406 mm. The female NPTF thread B2 has a size of 1/2-14 with a drill diameter of 0.531 mm, ensuring a secure fit.

With an overall length of 1.680 mm, this adapter is an essential component for industrial applications requiring robust and durable connections.

Supplier Part Number: 5405-06-08

California Residents: PROP-65 WARNING

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476
Dimensions
1.68 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Expander
Hex Size
1-1/8 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Series
5405 Series
Thread 2 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
1/2-14 x 3/8-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
#1 MP X #2 FP

5405-01-02

1/8 in

1/8-27, 1/16-27

5/8 in

02MP-02FP STRAIGHT EXPANDER

5405-02-02

1/8 in

1/8 in

1/8-27

5/8 in

#2 MP X #4 FP

5405-02-04

1/8 in

1/4 in

1/4-18 x 1/8-27

3/4 in

#2 MP X #6 FP

5405-02-06

1/8 in

3/8 in

3/8-18, 1/8-27

7/8 in

#2 MP X #8 FP (RIGID) ST.

5405-02-08

1/8 in

1/2 in

1/2-14 x 1/8-27

1-1/8 in

#4 MP X #2 FP

5405-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

5/8 in

04MP-04FP STRAIGHT EXPANDER

5405-04-04

1/4 in

1/4 in

1/4-18

3/4 in

04MP-06FP STRAIGHT EXPANDER

5405-04-06

1/4 in

3/8 in

3/8-18 x 1/4-18

7/8 in

#4 MP X #8 FP

5405-04-08

1/4 in

1/2 in

1/2-14 x 1/4-18

1-1/8 in

#4 MP X #12 FP

5405-04-12

1/4 in

3/4 in

3/4-14, 1/4-18

1-3/8 in

Steel Adapter, 3/8-18 Male NPT To 1/4-18 Female NPT, Straight

5405-06-04 Steel Male To Female NPT Adapter

3/8 in

1/4 in

3/8-18 x 1/4-18

3/4 in

#6 MP X #6 FP (RIGID) ST.

5405-06-06

3/8 in

3/8 in

3/8-18

7/8 in

#6 MP X #12 FP

5405-06-12

3/8 in

3/4 in

3/4-14 x 3/8-18

1-3/8 in

#8 MP X #4 FP

5405-08-04

1/2 in

1/4 in

1/2-14 x 1/4-18

7/8 in

Steel Adapter, 1/2-14 Male NPT To 3/8-18 Female NPT, Straight

5405-08-06 Steel Male To Female NPT Adapter

1/2 in

3/8 in

1/2-14 x 3/8-18

7/8 in

#8 MP X #8 FP

5405-08-08

1/2 in

1/2 in

1/2-14

1-1/8 in

#8 MP X #12 FP

5405-08-12

1/2 in

3/4 in

3/4-14 x 1/2-14

1-3/8 in

Steel Adapter, 1/2-14 Male NPT To 1-11-1/2 Female NPT, Straight

5405-08-16 Steel Male To Female NPT Adapter

1/2 in

1 in

1-11-1/2 x 1/2-14

1-5/8

Steel Adapter, 3/4-14 Male NPT To 3/8-18 Female NPT, Straight

5405-12-06 Steel Male To Female NPT Adapter

3/4 in

3/8 in

3/4-14 x 3/8-18

1-1/8 in

Steel Adapter, 3/4-14 Male NPT To 1/2-14 Female NPT, Straight

5405-12-08 Steel Male To Female NPT Adapter

3/4 in

1/2 in

3/4-14 x 1/2-14

1-1/8 in

#12 MP X #12 FP

5405-12-12

3/4 in

3/4 in

3/4-14

1-3/8 in

#12 MP X #16 FP

5405-12-16

3/4 in

1 in

1-11-1/2 x 3/4-14

1-5/8

#12 MP X #20 FP

5405-12-20

3/4 in

1-1/4 in

1-1/4-11-1/2 x 3/4-14

2 in

ADAPTER

5405-16-08

1 in

1/2 in

1-11-1/2 x 1/2-14

1-3/8 in

Steel Adapter, 1-11-1/2 Male NPT To 3/4-14 Female NPT, Straight

5405-16-12 Steel Male To Female NPT Adapter

1 in

3/4 in

1-11-1/2 x 3/4-14

1-3/8 in

#16 MP X #16 FP

5405-16-16

1 in

1 in

1-11-1/2

1-5/8

16MP-20FP STRAIGHT EXPANDER

5405-16-20

1 in

1-1/4 in

1-1/4-11-1/2 x 1-11-1/2

2 in

#16 MP X #24 FP

5405-16-24

1 in

1-1/2 in

1-1/2-11-1/2 x 1-11-1/2

2.38 in

ADAPTER

5405-20-16

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

1-3/4 in

#20 MP X #20 FP

5405-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

2 in

#20 MP X #24 FP

5405-20-24

1-1/4 in

1-1/2 in

1-1/4-11-1/2, 1-1/2-11-1/2

2.38 in

#24 MP X #20 FP

5405-24-20

1-1/2 in

1-1/4 in

1-1/4-11-1/2, 1-1/2-11-1/2

2 in

#24 MP X #24 FP

5405-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2.38 in

24MP-32FP STRAIGHT EXPANDER

5405-24-32

1-1/2 in

2 in

2-11-1/2, 1-1/2-11-1/2

2-7/8 in

Product Questions & Answers (1)

Question by: Neil F on Aug 15, 2025, 1:25 PM
does this adapter go from a 3/8 male NPTF up to a 1/2 female NPTF, or is it the other way around?
Answer by: Customer Support on Aug 16, 2025, 2:45 PM
Yeah, that's exactly right. The male end is 3/8-18 NPTF and it threads into a 1/2-14 NPTF female port. So you're stepping up in size from the male side to the female side, which is why it's called a straight expander. Both ends follow SAE J476 specs.
