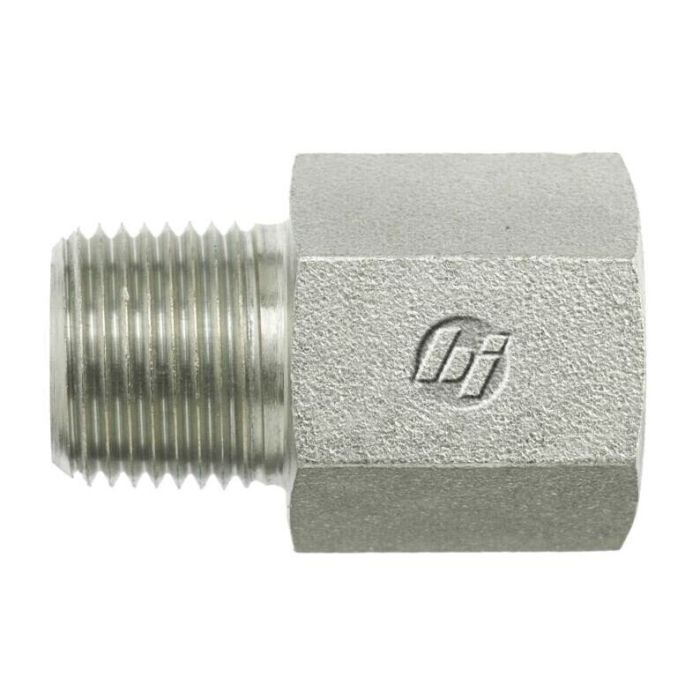

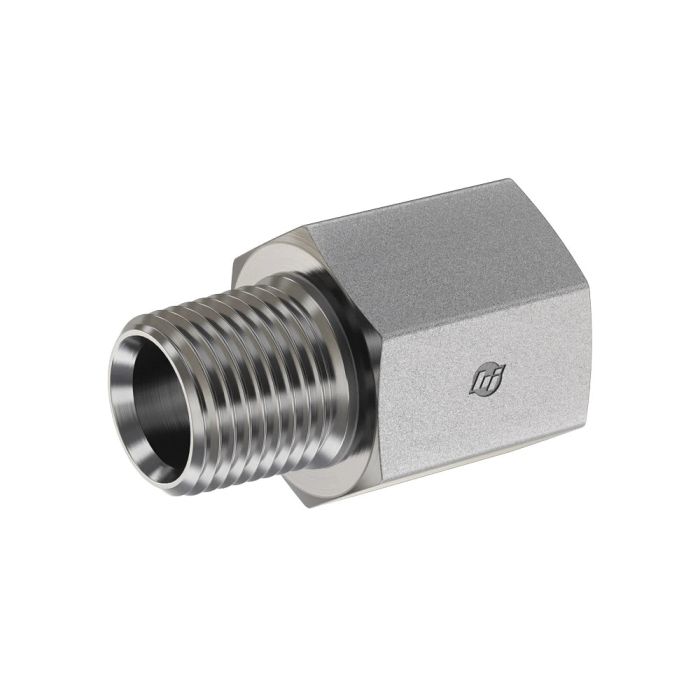

#8 MP X #4 FP

Description & Features

Manufactured from straight steel, this straight expander fitting steps up from a #4 female NPTF port to a #8 male NPTF connection in a single inline body. Both threads conform to SAE J476, with the male end sized at 1/2-14 and the female end at 1/4-18. The #8 MP X #4 FP is rated for dynamic pressures up to 6,000 PSI, making it well suited for hydraulic and fluid power circuits where a compact, permanent thread expansion is needed without additional adapters.

Supplied by Brennan Industries under their 5405 Series, this fitting carries a California Proposition 65 warning for applicable buyers. The straight configuration keeps the assembly compact where space between ports is limited.

SKU: 5405-08-04

Supplier Part Number (MPN): 5405-08-04

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/4 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476
Dimensions
1.64 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Expander
Hex Size
7/8 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Series
5405 Series
Thread 2 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14 x 1/4-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
#1 MP X #2 FP

5405-01-02

1/8 in

1/8-27, 1/16-27

5/8 in

02MP-02FP STRAIGHT EXPANDER

5405-02-02

1/8 in

1/8 in

1/8-27

5/8 in

#2 MP X #4 FP

5405-02-04

1/8 in

1/4 in

1/4-18 x 1/8-27

3/4 in

#2 MP X #6 FP

5405-02-06

1/8 in

3/8 in

3/8-18, 1/8-27

7/8 in

#2 MP X #8 FP (RIGID) ST.

5405-02-08

1/8 in

1/2 in

1/2-14 x 1/8-27

1-1/8 in

#4 MP X #2 FP

5405-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

5/8 in

04MP-04FP STRAIGHT EXPANDER

5405-04-04

1/4 in

1/4 in

1/4-18

3/4 in

04MP-06FP STRAIGHT EXPANDER

5405-04-06

1/4 in

3/8 in

3/8-18 x 1/4-18

7/8 in

#4 MP X #8 FP

5405-04-08

1/4 in

1/2 in

1/2-14 x 1/4-18

1-1/8 in

#4 MP X #12 FP

5405-04-12

1/4 in

3/4 in

3/4-14, 1/4-18

1-3/8 in

Steel Adapter, 3/8-18 Male NPT To 1/4-18 Female NPT, Straight

5405-06-04 Steel Male To Female NPT Adapter

3/8 in

1/4 in

3/8-18 x 1/4-18

3/4 in

#6 MP X #6 FP (RIGID) ST.

5405-06-06

3/8 in

3/8 in

3/8-18

7/8 in

06MP-08FP STRAIGHT EXPANDER

5405-06-08

3/8 in

1/2 in

1/2-14 x 3/8-18

1-1/8 in

#6 MP X #12 FP

5405-06-12

3/8 in

3/4 in

3/4-14 x 3/8-18

1-3/8 in

Steel Adapter, 1/2-14 Male NPT To 3/8-18 Female NPT, Straight

5405-08-06 Steel Male To Female NPT Adapter

1/2 in

3/8 in

1/2-14 x 3/8-18

7/8 in

#8 MP X #8 FP

5405-08-08

1/2 in

1/2 in

1/2-14

1-1/8 in

#8 MP X #12 FP

5405-08-12

1/2 in

3/4 in

3/4-14 x 1/2-14

1-3/8 in

Steel Adapter, 1/2-14 Male NPT To 1-11-1/2 Female NPT, Straight

5405-08-16 Steel Male To Female NPT Adapter

1/2 in

1 in

1-11-1/2 x 1/2-14

1-5/8

Steel Adapter, 3/4-14 Male NPT To 3/8-18 Female NPT, Straight

5405-12-06 Steel Male To Female NPT Adapter

3/4 in

3/8 in

3/4-14 x 3/8-18

1-1/8 in

Steel Adapter, 3/4-14 Male NPT To 1/2-14 Female NPT, Straight

5405-12-08 Steel Male To Female NPT Adapter

3/4 in

1/2 in

3/4-14 x 1/2-14

1-1/8 in

#12 MP X #12 FP

5405-12-12

3/4 in

3/4 in

3/4-14

1-3/8 in

#12 MP X #16 FP

5405-12-16

3/4 in

1 in

1-11-1/2 x 3/4-14

1-5/8

#12 MP X #20 FP

5405-12-20

3/4 in

1-1/4 in

1-1/4-11-1/2 x 3/4-14

2 in

ADAPTER

5405-16-08

1 in

1/2 in

1-11-1/2 x 1/2-14

1-3/8 in

Steel Adapter, 1-11-1/2 Male NPT To 3/4-14 Female NPT, Straight

5405-16-12 Steel Male To Female NPT Adapter

1 in

3/4 in

1-11-1/2 x 3/4-14

1-3/8 in

#16 MP X #16 FP

5405-16-16

1 in

1 in

1-11-1/2

1-5/8

16MP-20FP STRAIGHT EXPANDER

5405-16-20

1 in

1-1/4 in

1-1/4-11-1/2 x 1-11-1/2

2 in

#16 MP X #24 FP

5405-16-24

1 in

1-1/2 in

1-1/2-11-1/2 x 1-11-1/2

2.38 in

ADAPTER

5405-20-16

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

1-3/4 in

#20 MP X #20 FP

5405-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

2 in

#20 MP X #24 FP

5405-20-24

1-1/4 in

1-1/2 in

1-1/4-11-1/2, 1-1/2-11-1/2

2.38 in

#24 MP X #20 FP

5405-24-20

1-1/2 in

1-1/4 in

1-1/4-11-1/2, 1-1/2-11-1/2

2 in

#24 MP X #24 FP

5405-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2.38 in

24MP-32FP STRAIGHT EXPANDER

5405-24-32

1-1/2 in

2 in

2-11-1/2, 1-1/2-11-1/2

2-7/8 in

Product Questions & Answers (3)

Question by: Ronnie B on Feb 9, 2026, 8:42 PM
Got a port on a manifold block that's tapped 1/4-18 NPTF and I need to run a 1/2-14 male line into it. This fitting do that in one shot, or am I still gonna need extra pieces?
Answer by: Customer Support on Feb 11, 2026, 4:03 PM
One fitting handles it. The female end threads into your 1/4-18 NPTF port and the male end puts out a 1/2-14 NPTF connection, so you go straight from the smaller port to the larger line without stacking adapters. Both ends conform to SAE J476, and the whole thing sits in a single inline body, which keeps things tight in spots where you don't have room to chain fittings together.
Question by: Gene A on Jun 14, 2025, 9:56 PM
got a 1/4-18 female NPTF port and need to step it up to 1/2-14 male NPTF in-line. is that what this fitting does?
Answer by: Customer Support on Jun 16, 2025, 7:31 PM
In plain terms, it is a straight expander that goes from a #4 female NPTF (1/4-18) on one side to a #8 male NPTF (1/2-14) on the other, all in one inline steel body. Both ends are NPTF threads built to SAE J476.
Question by: Wade C on Apr 15, 2025, 12:03 PM
So this fitting goes from a 1/4 inch female to a 1/2 inch male pipe thread, right? Just want to make sure I'm reading it right.
Answer by: Customer Support on Apr 17, 2025, 6:57 AM
That's correct. It expands from a #4 female NPTF (1/4-18 thread) to a #8 male NPTF (1/2-14 thread) connection.
