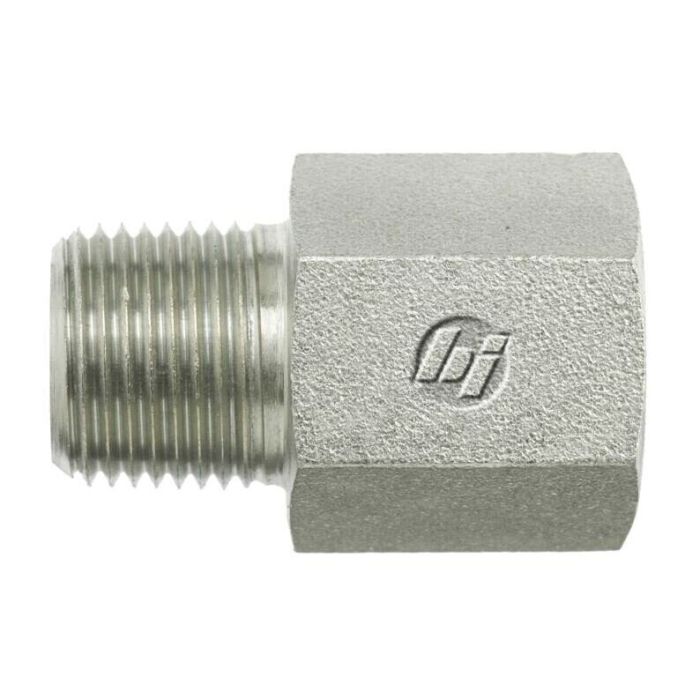

#8 MP X #8 FP

Description & Features

The #8 MP X #8 FP by Brennan Industries Inc is engineered to provide reliable connection solutions in industrial applications. Crafted from robust straight steel, it ensures durability and optimal performance under high-pressure conditions.

The expander has a maximum dynamic pressure rating of 5,000 PSI, making it suitable for demanding environments. The male NPTF thread B1 and female NPTF thread B2 both adhere to SAE J476 specifications, with a thread size of 1/2-14 and a thread drill diameter of 0.531 mm.

With an overall length of 1.870 mm, this expander facilitates secure and precise connections. The 5405 series component is ideal for various industrial uses requiring components that meet strict pressure and thread specification standards.

Supplier Part Number: 5405-08-08

California Residents: PROP-65 WARNING

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 5405-08-08	Product Weight 0.28 lbs

Product Questions & Answers (2)

Question by: Rick H on Jun 15, 2025, 8:06 AM

Will this here fitting work okay for hooking up some hydraulic lines on my tractor?

Answer by: Customer Support on Jun 16, 2025, 8:25 AM

This #8 MP X #8 FP expander is made from straight steel and rated for a maximum dynamic pressure of 5,000 PSI, so it should be suitable for hydraulic lines, but make sure your tractor's system operates within that pressure range.

Question by: Sheila B on Nov 13, 2025, 6:06 AM

got a line running 5,000 PSI and need to step from a male half-inch NPTF into a female NPTF port, this the right piece for that?

Answer by: Customer Support on Nov 15, 2025, 6:04 AM

Rated right at 5,000 PSI dynamic, so it'll hold up at that pressure without issue. Both ends are 1/2-14 NPTF threads conforming to SAE J476, so male on one side, female on the other, same size throughout. That's exactly the configuration you're describing.
